GTIN Enable
Product Reference Guide 5-175
GTIN 5-Digit Supplemental Label ID
This feature specifies a GTIN label ID to be added to bar code data when
GTIN conversion is enabled and 5-digit supplemental addon bar code
labels are converted.
To set this feature:
1. Scan the SWITCH bar code.
2. Scan the bar code,
SET GTIN 5-DIGIT SUPPLEMENTAL LABEL
ID
below. You’ll need to cover any unused bar codes on this and the
facing page to ensure the scanner reads only the bar code you intend
to scan.
3. Scan the appropriate digits from the keypad in
Appendix C that rep-
resent the desired Label ID characters; entered as two hex pairs. A
table containing the
ASCII Character Set and their corresponding
Hex Values is available in the inside back cover of this manual.
ASCII parameters must be input by scanning a pair of hexadecimal
digits for each character. Thus, to set a two-character value of AB,
bar codes containing the digits ‘4’, ‘1’, ‘4’, and ‘2’ must be scanned.
The selectable range for this option is any hex value from 00 to FF
(for each of the two characters).
4. Complete the programming sequence by scanning the SWITCH
bar code.

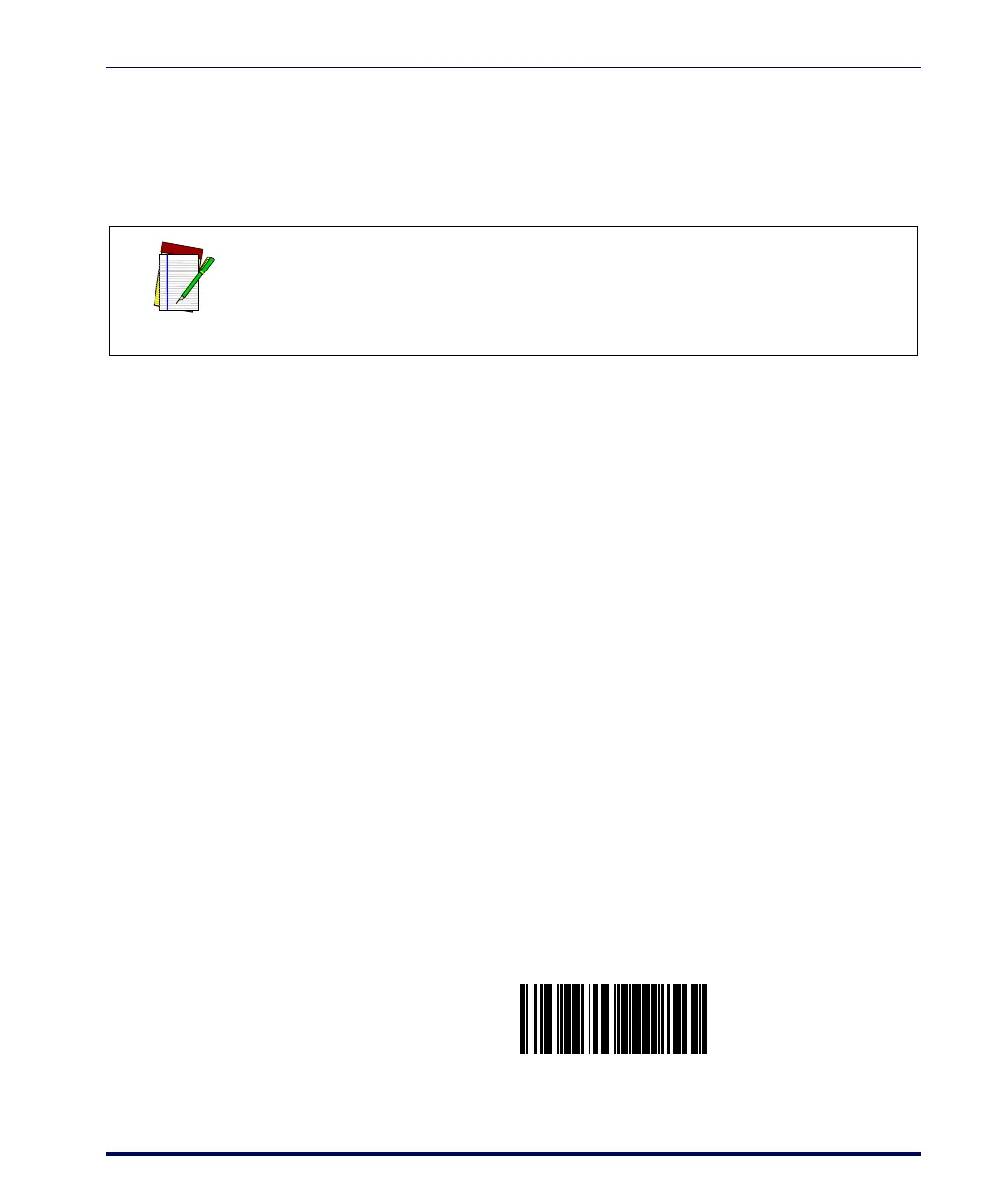

SET GTIN 5-DIGIT SUPPLEMENTAL LABEL ID
NOTE
The programming feature, RS-232 Label ID Control, designates whether
the Label ID is transmitted as a prefix or suffix or if Label ID is disabled.

Datalogic Magellan 2200VS Specifications

General

Decoding standards	-1D + GS1 DataBar, -GS1 DataBar Expanded Stacked, -GS1 DataBar Stacked, -GS1 DataBar Stacked Omnidirectional.
Standard interfaces	USB, RS-232
Dimensions (WxDxH)	152 x 152 x 97 mm
Product color	Gray
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	1100 g
