Datalogic Magellan 2200VS Product Reference Guide

Operation and Maintenance
3-2 Magellan
TM
2200VS and 2300HS
Scanning Items: Model 2200VS
Item bar codes are scanned by either...
• sliding or pushing items through the scan volume in a right-to-left
or left-to-right motion (see
Figure 3-1a). This is known as “Sweep”
scanning, and is the best choice for high throughput super- and
hypermarket installations where it is necessary to minimize the need
to grip or lift items.
• moving the bar code directly toward the scan window to be read (see
Figure 3-1b). This “Presentation” technique is most often used in
low throughput variety, convenience market and pharmacy applica-
tions where usable countertop space is at a premium and “Sweep”
scanning is not possible.

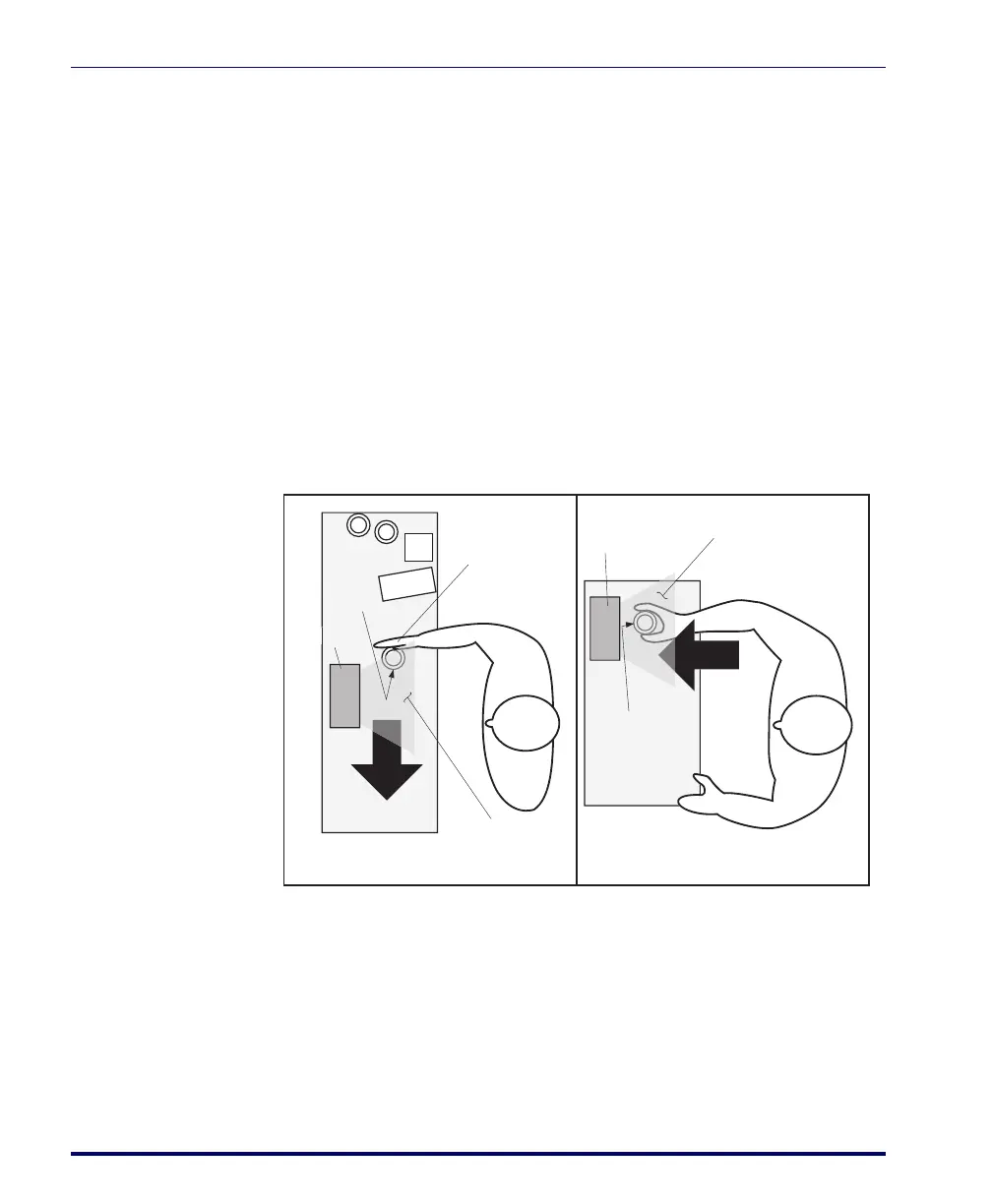

Figure 3-1. Sweep and Presentation Scanning Technique
S
c
a
nne
r
a
It
em
Bar Code
Item
Bar
C
od
e
Scan Volume
Scan Volume
Items are
pushed or
slid past
scanner
S
canne
r
a Sweep Technique Presentation Techniqueb

Datalogic Magellan 2200VS Specifications

General

Decoding standards	-1D + GS1 DataBar, -GS1 DataBar Expanded Stacked, -GS1 DataBar Stacked, -GS1 DataBar Stacked Omnidirectional.
Standard interfaces	USB, RS-232
Dimensions (WxDxH)	152 x 152 x 97 mm
Product color	Gray
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	1100 g
