Datalogic Magellan 2200VS Product Reference Guide

Programming
5-90 Magellan
TM
2200VS and 2300HS
Single Cable RS-232 RTS CTS Selection
Specifies how RTS and CTS are used to control the data flow. RTS is con-
trolled by the Scanner and can be continuously held high/low, or can be
asserted during label transmission. The scanner looks at CTS, as the con-
figuration values state, to determine when to send label data.
Choices are:
• Option 0 = RTS is held in low state and CTS is ignored
• Option 1 = RTS is held in high state and CTS is ignored
• Option 2 = Assert RTS and wait for CTS to be asserted
• Option 3 = Assert RTS and ignore CTS
• Option 4 = RTS held low, wait for CTS to be asserted
• Option 5 = RTS held high, wait for CTS to be asserted
To set this feature:
1. Scan the SWITCH bar code.
2. Scan a bar code below or on the following pages representing the
desired option. You’ll need to cover any unused bar codes, as well as
facing pages to ensure that the scanner reads only the bar code you
intend to scan.
3. Complete the programming sequence by scanning the SWITCH
bar code.

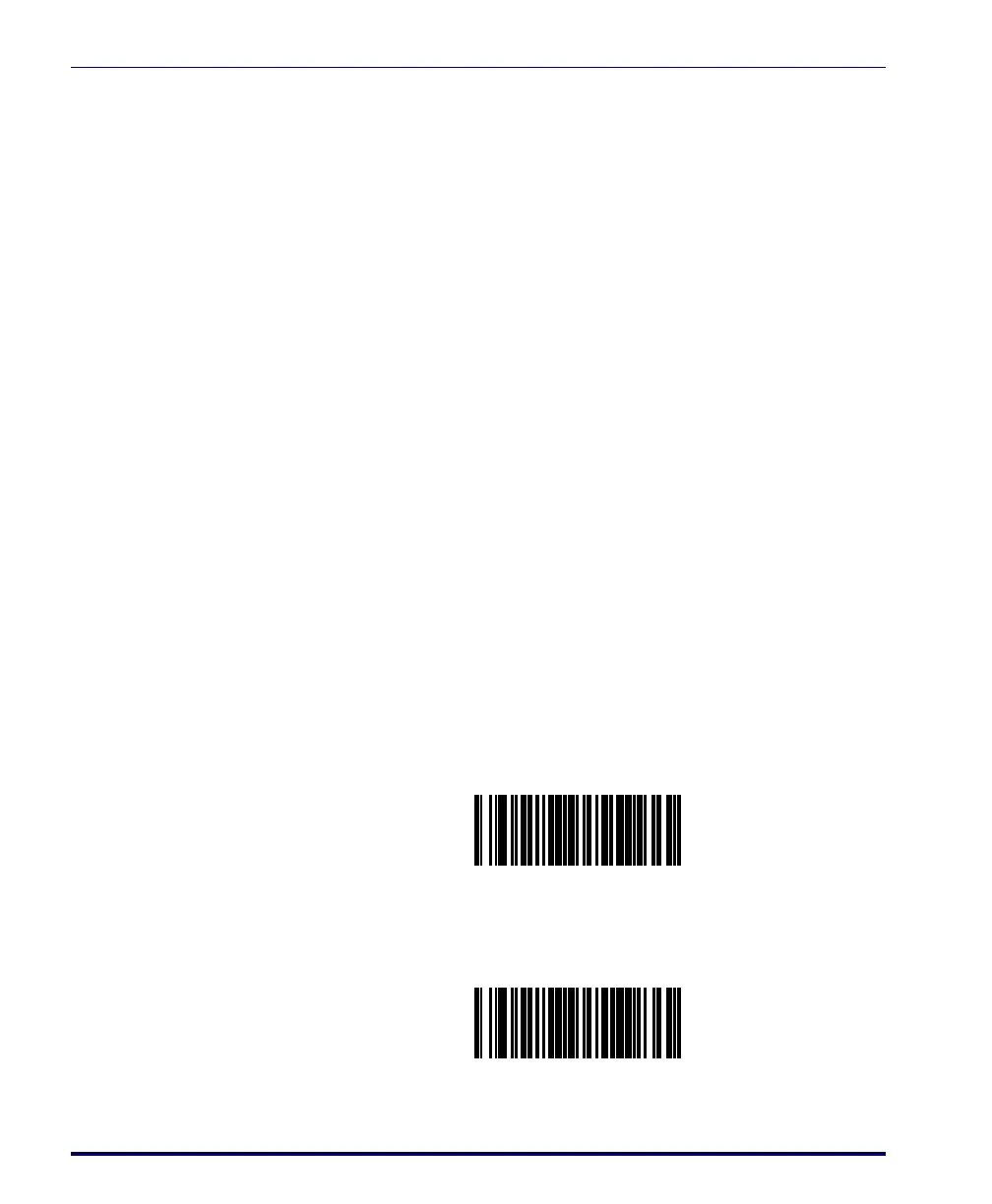

RTS CTS SELECTION = OPTION 0
RTS CTS SELECTION = OPTION 1

Datalogic Magellan 2200VS Specifications

General

Decoding standards	-1D + GS1 DataBar, -GS1 DataBar Expanded Stacked, -GS1 DataBar Stacked, -GS1 DataBar Stacked Omnidirectional.
Standard interfaces	USB, RS-232
Dimensions (WxDxH)	152 x 152 x 97 mm
Product color	Gray
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	1100 g
