Datalogic Magellan 2200VS Product Reference Guide

Scanner Nomenclature
Product Reference Guide 1-3
Manual Conventions
Scanner Nomenclature

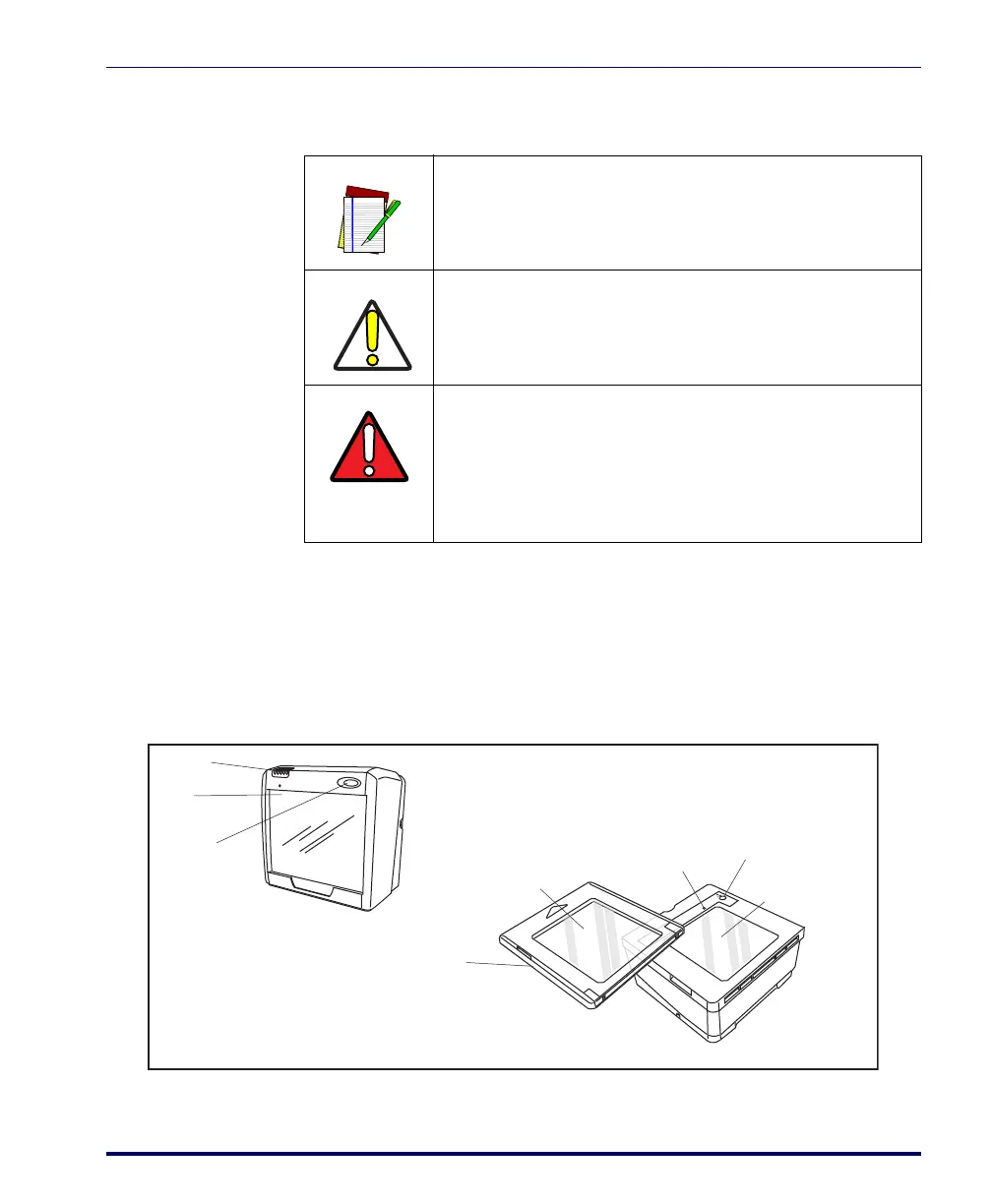

Controls, indicators and other nomenclature are shown in Figure 1-1.
Figure 1-1. Scanner Nomenclature
‘NOTE’ blocks contain information that is helpful and rec-
ommended. They provide information that is critical to
operations and/or procedures described in this manual.
‘CAUTION’ blocks inform you that proper handling
(adherence to the procedures described) is required to
avoid damage to equipment and/or property.
‘WARNING’ blocks alert you to potential physical harm or
injury. These statements do not include potentially fatal
hazards, which would be designated as ‘DANGER’
blocks. Use of this product does not warrant the need for
a DANGER block.
Speaker
Scan
Window
U
pp
er Sca
n
Win
dow
Lower
S
ca
n
Win
dow
Indicator
LED plus
Volume/Tone
Push Button
Volume/Tone
P
us
h B
u
tt
on
In
d
i
ca
t
o
r LE
D
Model 2200VS
Model 2
300
H
S
To
p
Cove
r

Datalogic Magellan 2200VS Specifications

General

Decoding standards	-1D + GS1 DataBar, -GS1 DataBar Expanded Stacked, -GS1 DataBar Stacked, -GS1 DataBar Stacked Omnidirectional.
Standard interfaces	USB, RS-232
Dimensions (WxDxH)	152 x 152 x 97 mm
Product color	Gray
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	1100 g
