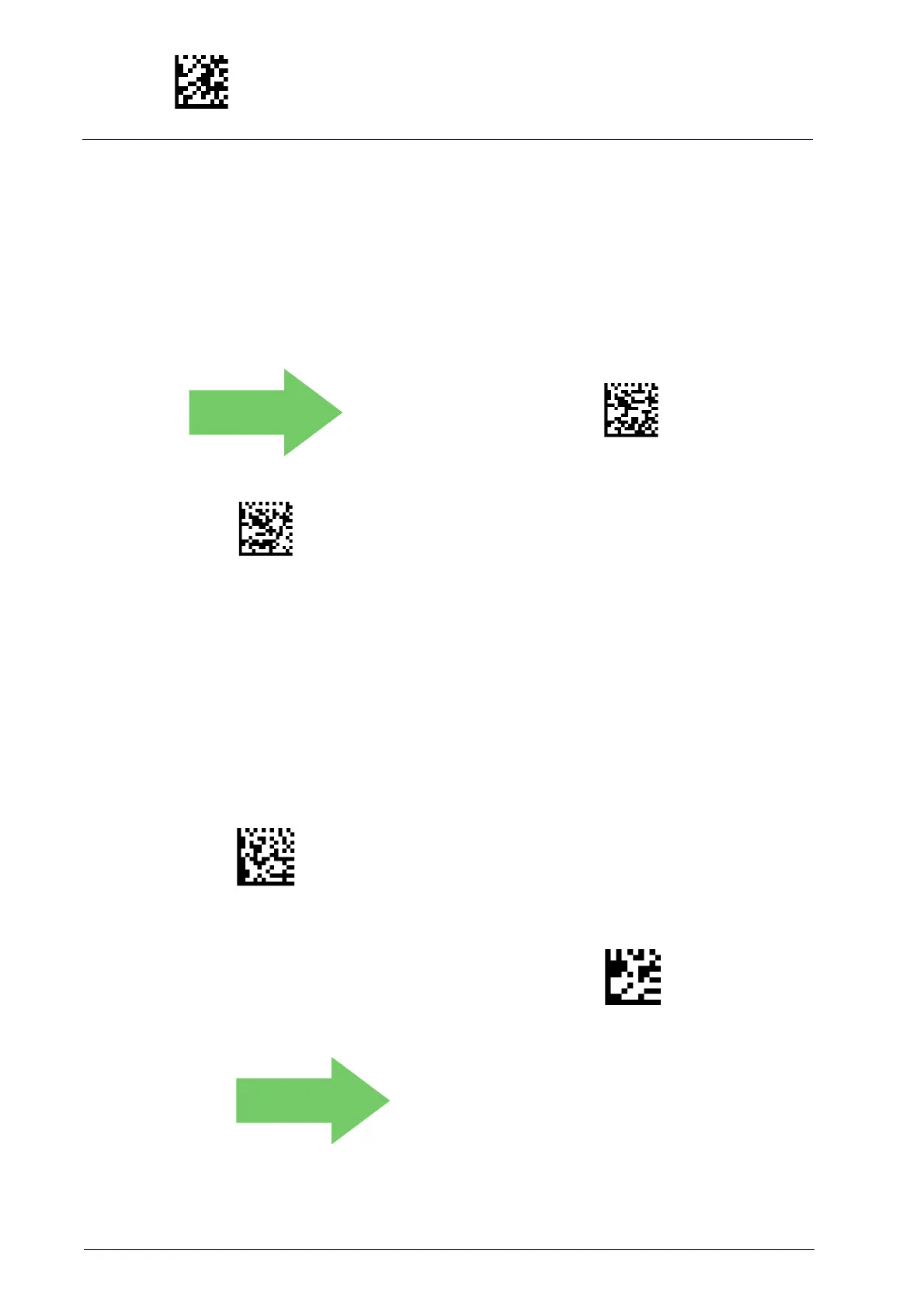

Enter/Exit Programming Mode 2D Global Features

184

PowerScan™ PD953X/PBT950X/PM950X

Data Matrix Length Control

This feature specifies either variable length decoding or fixed length decod-

ing for this symbology.

Variable Length:

For variable length decoding, a minimum and maximum

length may be set.

Fixed Length:

For fixed length decoding, two different lengths may be set.

DEFAULT

$CDMLC00(CR)

Data Matrix Length Control = Variable Length

$CDMLC01(CR)

Data Matrix Length Control = Fixed Length

Data Matrix Set Length 1

Specifies one of the bar code lengths for Data Matrix Length Control. Length

1 is the minimum label length if in Va

riable Length Mode, or the first fixed

length if in Fixed Length Mode. Characters can be set from 0001 to 3,116

characters in increments of 0001 (pad with zeroes).

See page 281 for detailed instructions on setting this feature.

$CDML1

Select Data Matrix Length 1 Setting

To configure this feature, scan the ENTER/EXIT

PROGRAMMING MODE bar code above, then the bar

code at left followed by the digits from the Alphanu-

meric characters in

Appendix D, Keypad

repre-

senting your desired character(s). End by scanning

the ENTER/EXIT ba

r code again.

Make a mistake? Scan the CANCEL bar code to abort

d not save the entry string. You can then start

again at the beginning.

CANCEL

DEFAULT

0001 = Length 1 is 1 Character
