Datalogic QuickScan QM24 Series User Manual

1D Symbologies Enter/Exit Programming Mode

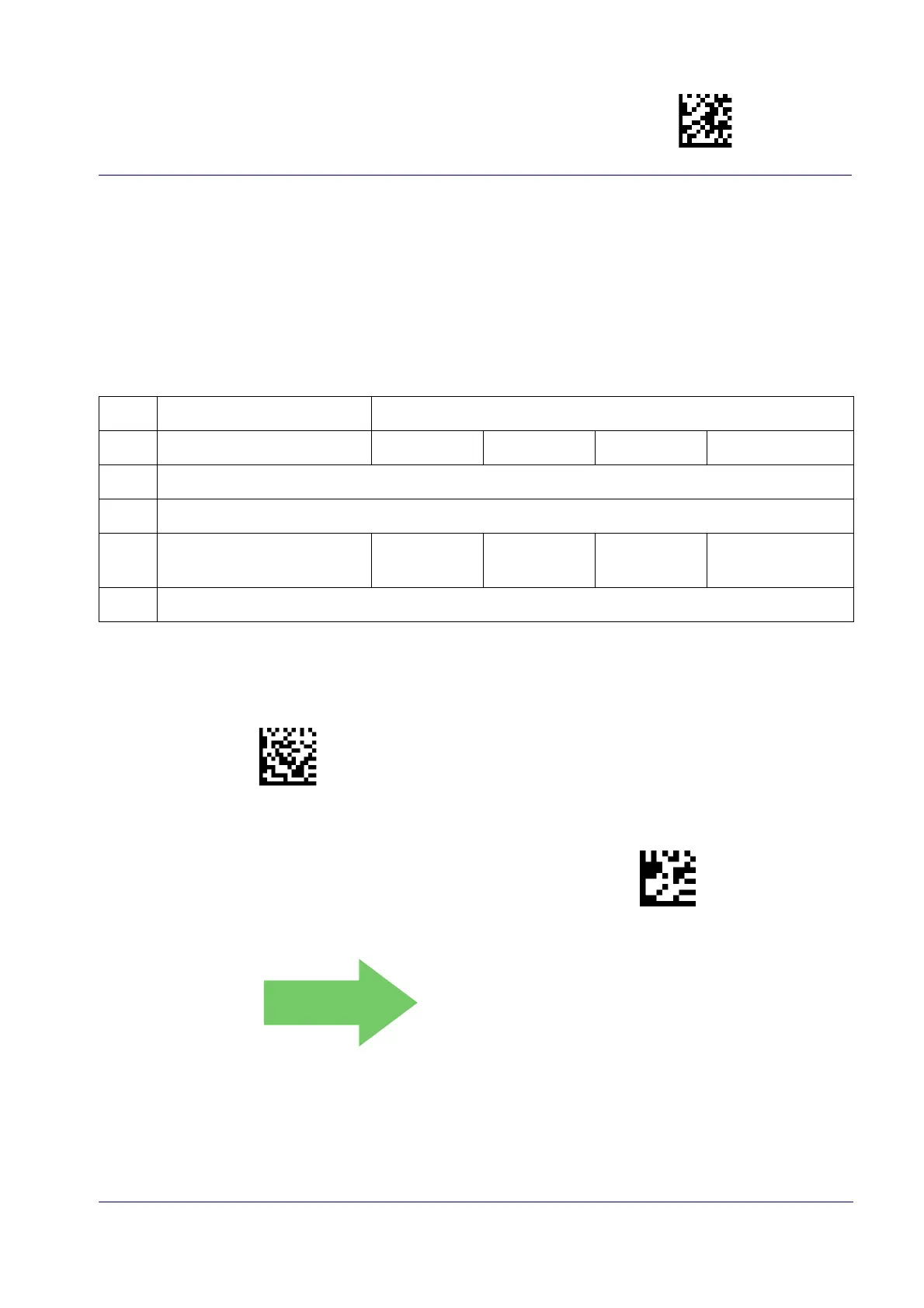

Product Reference Guide 137
Standard 2 of 5 Set Length 1
This feature specifies one of the bar code lengths for Standard 2 of 5 Length Control on page
136. Length 1 is the minimum label length if in Variable Length on page 136 Mode, or the first
fixed length if in Fixed Length on page 113 Mode. Length includes the bar code’s check and
data characters. The length can be set from 1 to 50 characters.
Table 9 provides some examples for setting Length 1. See page 243 if you want detailed
instructions on setting this feature.
Table 9. Standard 2 of 5 Length 1 Setting Examples
STEP ACTION EXAMPLES
1 Desired Setting
01 Character 07 Characters 15 Characters 50 Characters
2 Scan ENTER/EXIT PROGRAMMING MODE
3 Scan SELECT STANDARD 2 OF 5 LENGTH 1 SETTING
4
Scan Two Characters From
Appendix D, Keypad
‘0’ and ‘1’ ‘0’ and ‘7’ ‘1’ and ‘5’ ‘5’ AND ‘0’
5 Scan ENTER/EXIT PROGRAMMING MODE
$CS2L1
Select Standard 2 of 5 Length 1 Setting
Make a mistake? Scan the CANCEL bar code to abort and
not save the entry string. You can then start again at the
beginning.
~
CANCEL
DEFAULT
08 = Length 1 is 8 Characters
