244 QuickScan™ I QD24XX/QBT24XX/QM24XX
4. Scan the appropriate two digits from the keypad in Appendix D, Keypad that represent the
length setting which was determined
in the steps above. You will hear a two-beep indica-
tion after the last character.
If you make a mistake, before the last character scan the CANCEL bar code to abort and
not save the entry string. You can then start again at the beginning.
5. Scan the ENTER/EXIT PROGRAMMING MODE bar code to exit Programming Mode.
This completes the procedure.
Data Editing
CAUTION
It is not recommended to use these features with IBM interfaces.
When a bar code is scanned, additional information can be sent to the host computer along
with the bar code data. This combination of bar code data and supplementary user-defined
data is called a “message string.” The Data Editing features can be used to build specific user-
defined data into a message string.
There are several types of selectable data characters tha
t can be sent before and after scanned
data. You can specify if they should be sent with all symbologies, or only with specific symbol-
ogies. Figure 9 shows the available elements you can add to a message string:

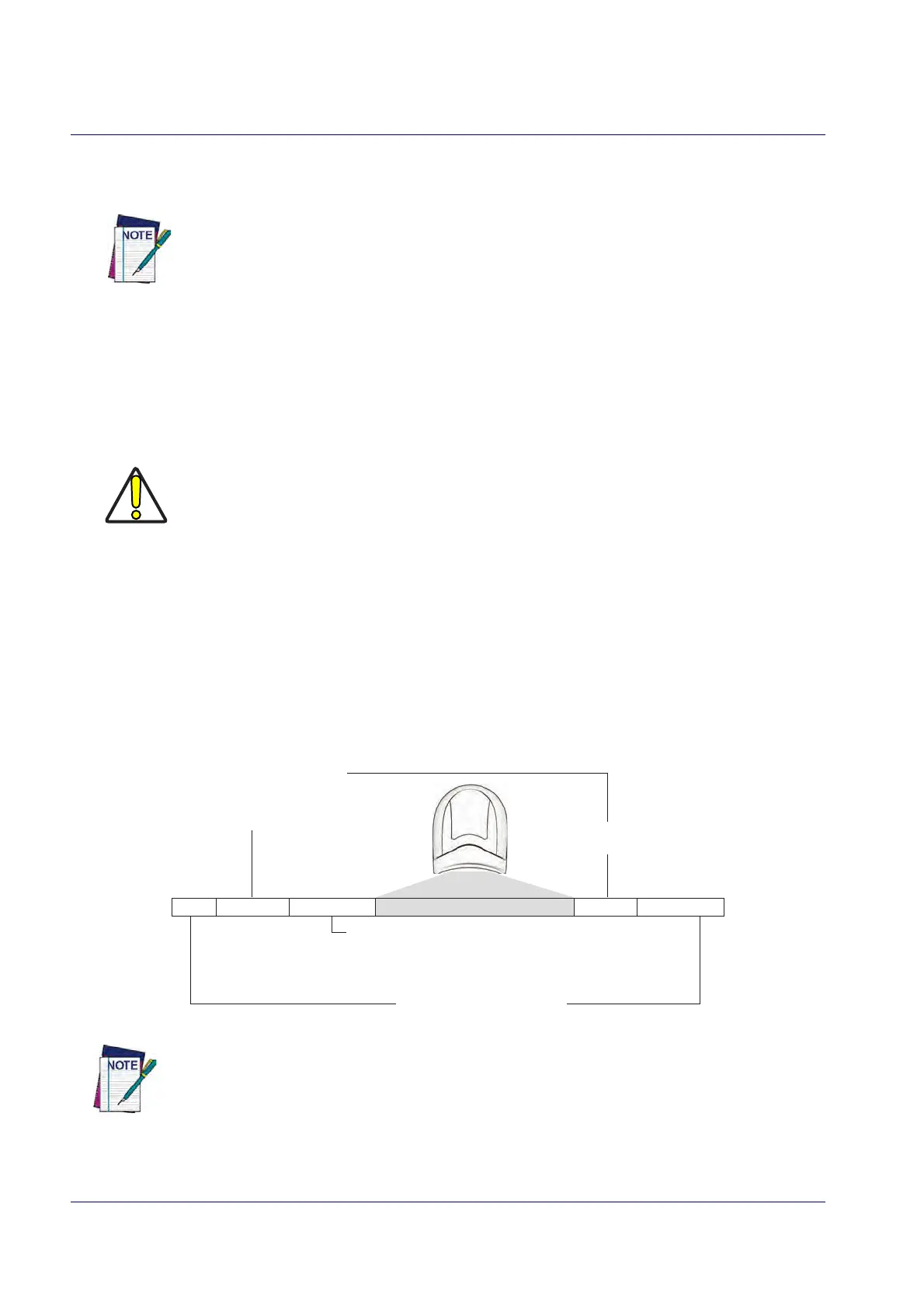

Figure 9. Breakdown of a Message String
Prefix SuffixAIM IDLabel ID Label IDBar Code Data
00 - 20 Characters (ASCII)
Label ID Transmission:
Enable this option to
transmit the Label ID you
configure for the scanned
symbology.
AIM ID: This function is used to identify and display the
common label identifier for its symbology. When enabled,
this ID code will be transmitted before the scanned bar
code data.
OR...
Additional advanced editing is available. See the Advanced formatting features in the Data-
logic Aladdin configuration software, or contact Technical Support (as described on
page 2
)
for more information.
