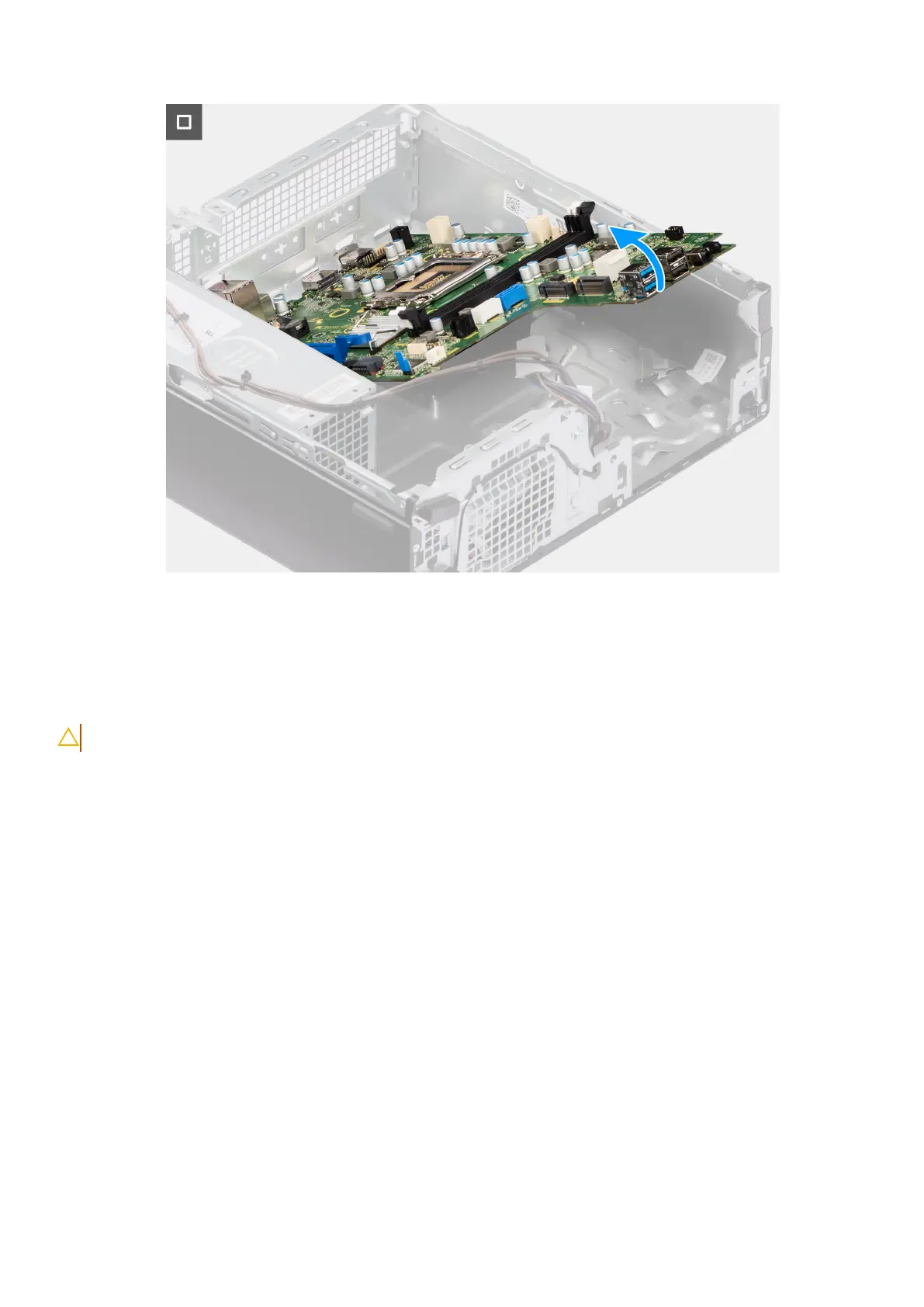

Figure 60. Removing the system board
11. Free the system board from the back I/O panel by sliding it towards the right and lift the system board out of the chassis.
Installing the system board
CAUTION: The information in this removal section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

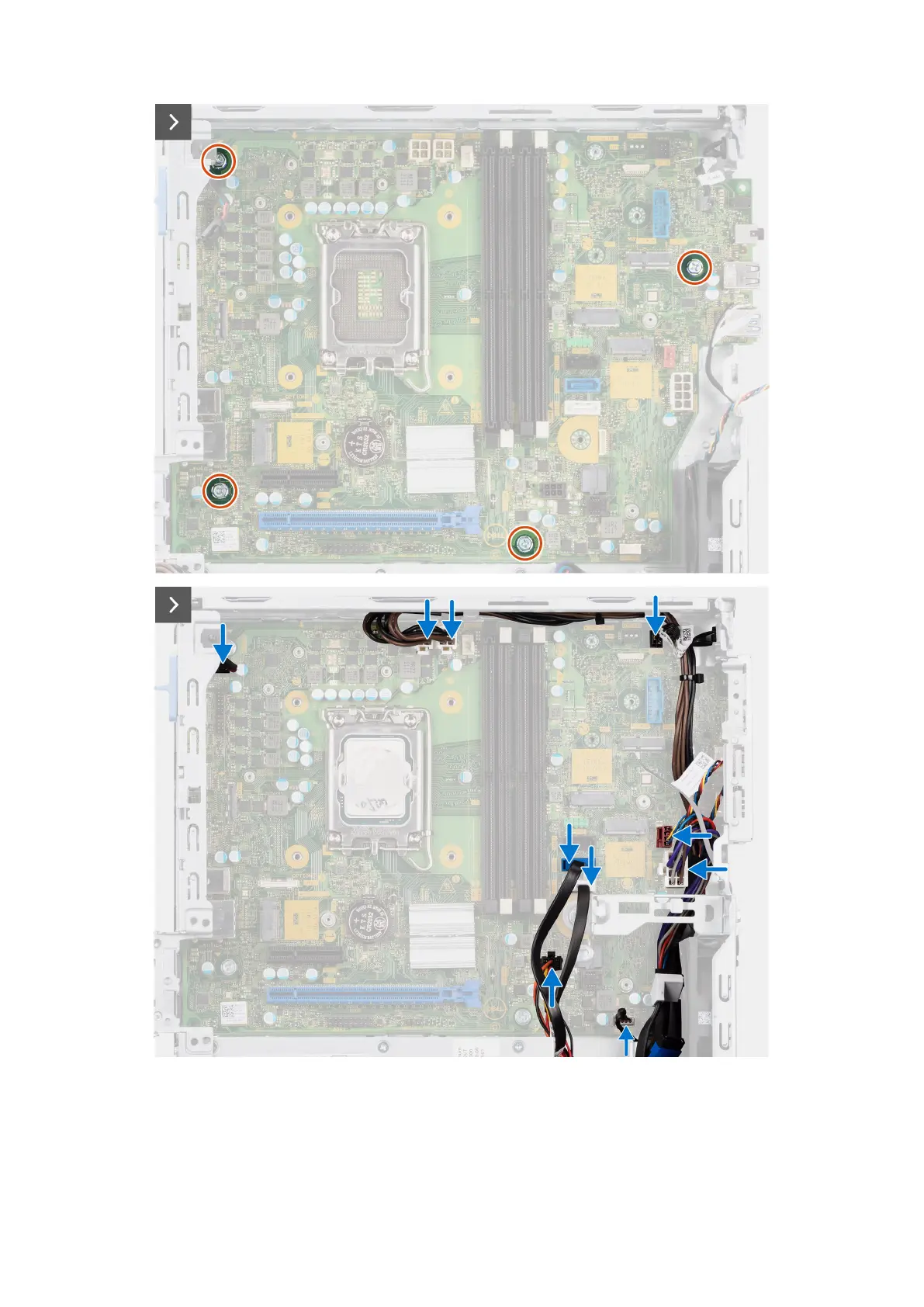

The following image indicates the connectors on your system board.
Removing and installing Field Replaceable Units (FRUs)
107
Restricted - Confidential
