Internal speaker
Removing the internal speaker
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the side cover.
About this task

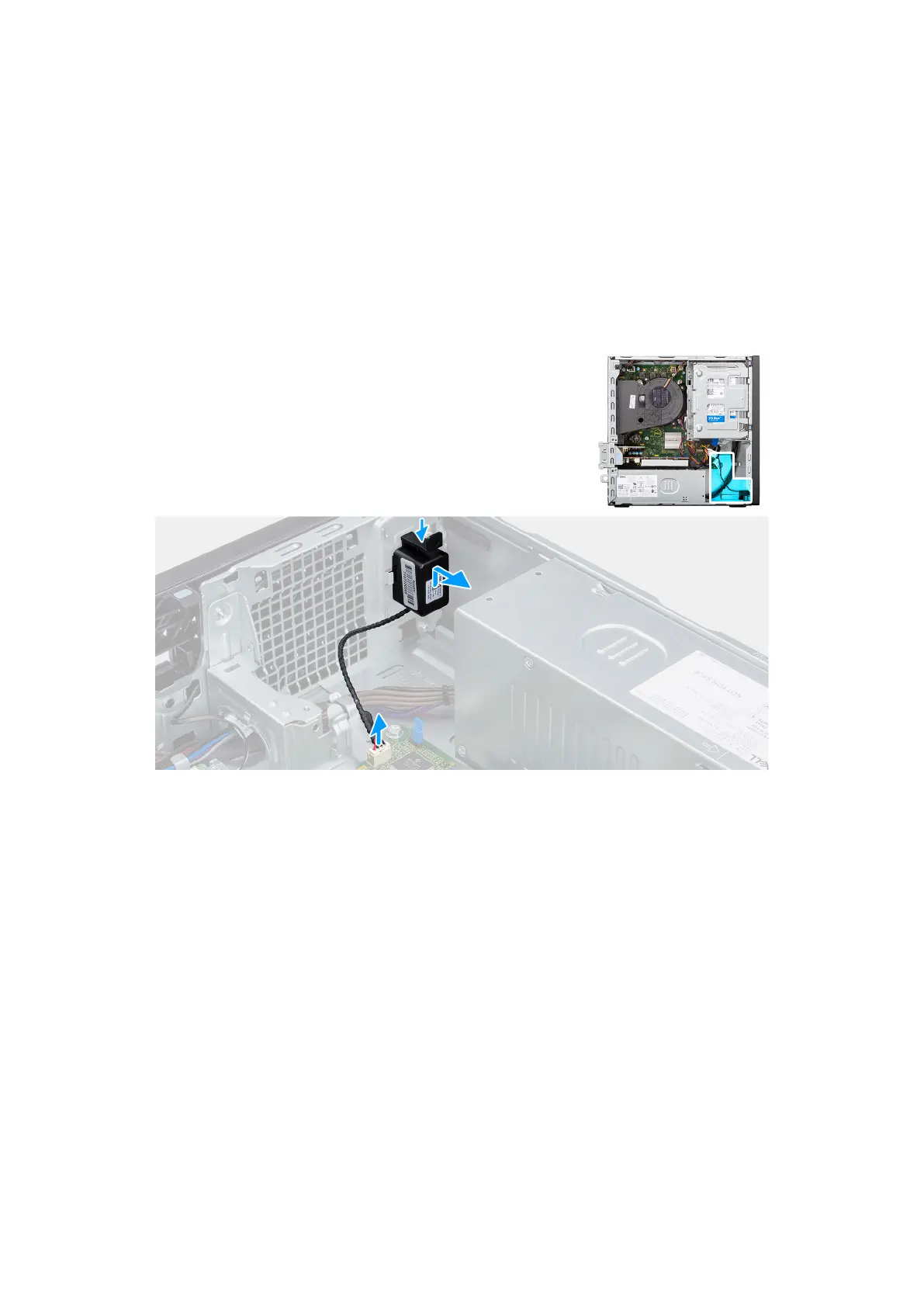

The following images indicate the location of the speaker and provide a visual representation of the removal procedure.

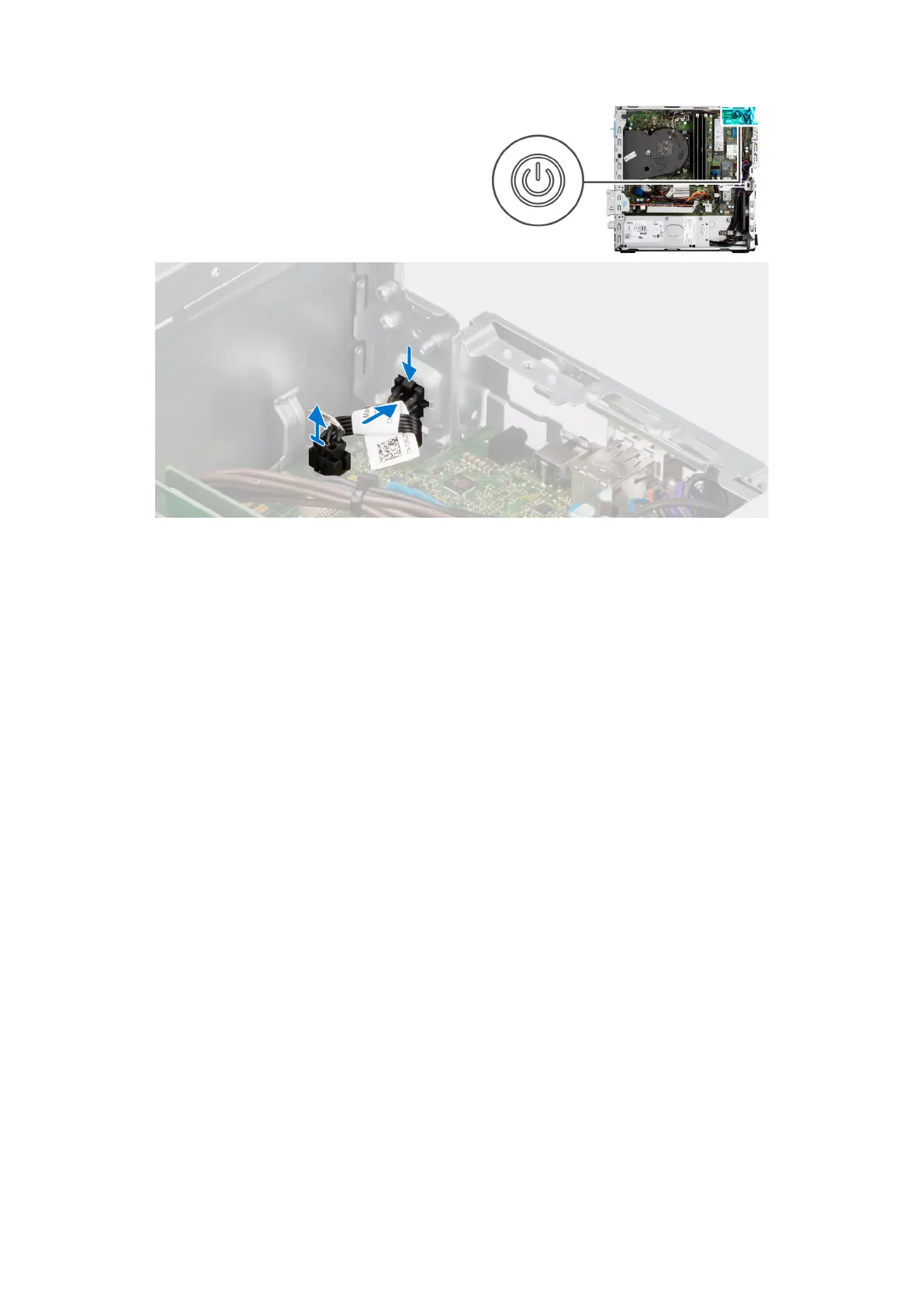

Figure 31. Removing the speaker
Steps
1. Disconnect the speaker cable from its connector (INT SPKR) on the system board.
2. Press the tab, lift and slide the speaker along with the cable from the slot on the chassis.
Installing the internal speaker
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the speaker and provide a visual representation of the installation procedure.
Removing and installing Customer Replaceable Units (CRUs)
73
