About this task

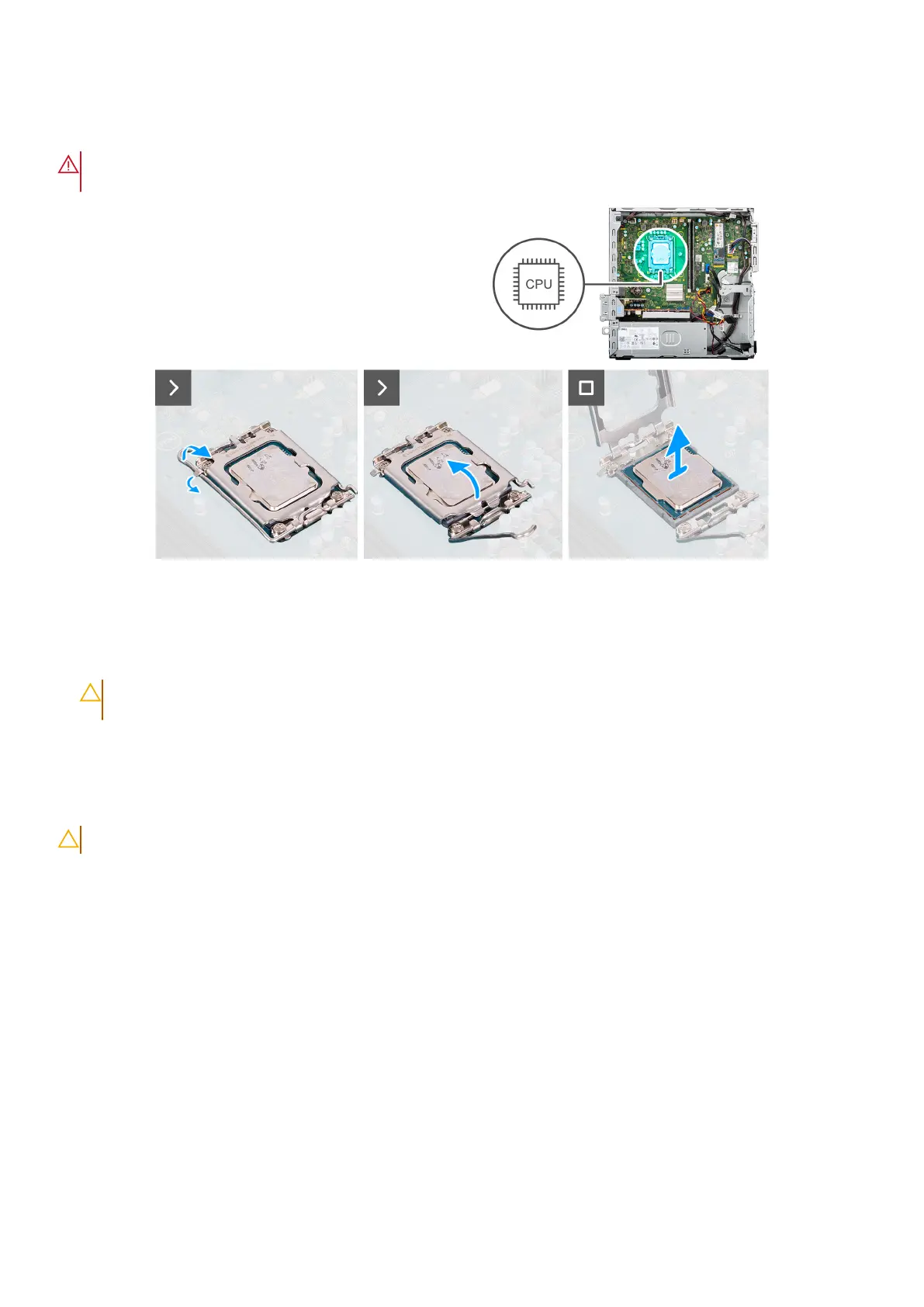

The following images indicate the location of the processor and provide a visual representation of the removal procedure.
WARNING: The processor might still be hot after the computer is shut down. Allow the processor to cool down
before removing it.
Figure 46. Removing the processor
Steps
1. Press the release lever down and then push it away from the processor to release it from the securing tab.
2. Extend the release lever completely and open the processor cover.
CAUTION:
When removing the processor, do not touch any of the pins inside the socket or allow any objects
to fall on the pins in the socket.
3. Gently lift the processor from the processor socket.
Installing the processor
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the processor and provide a visual representation of the installation procedure.
Removing and installing Field Replaceable Units (FRUs)
93
