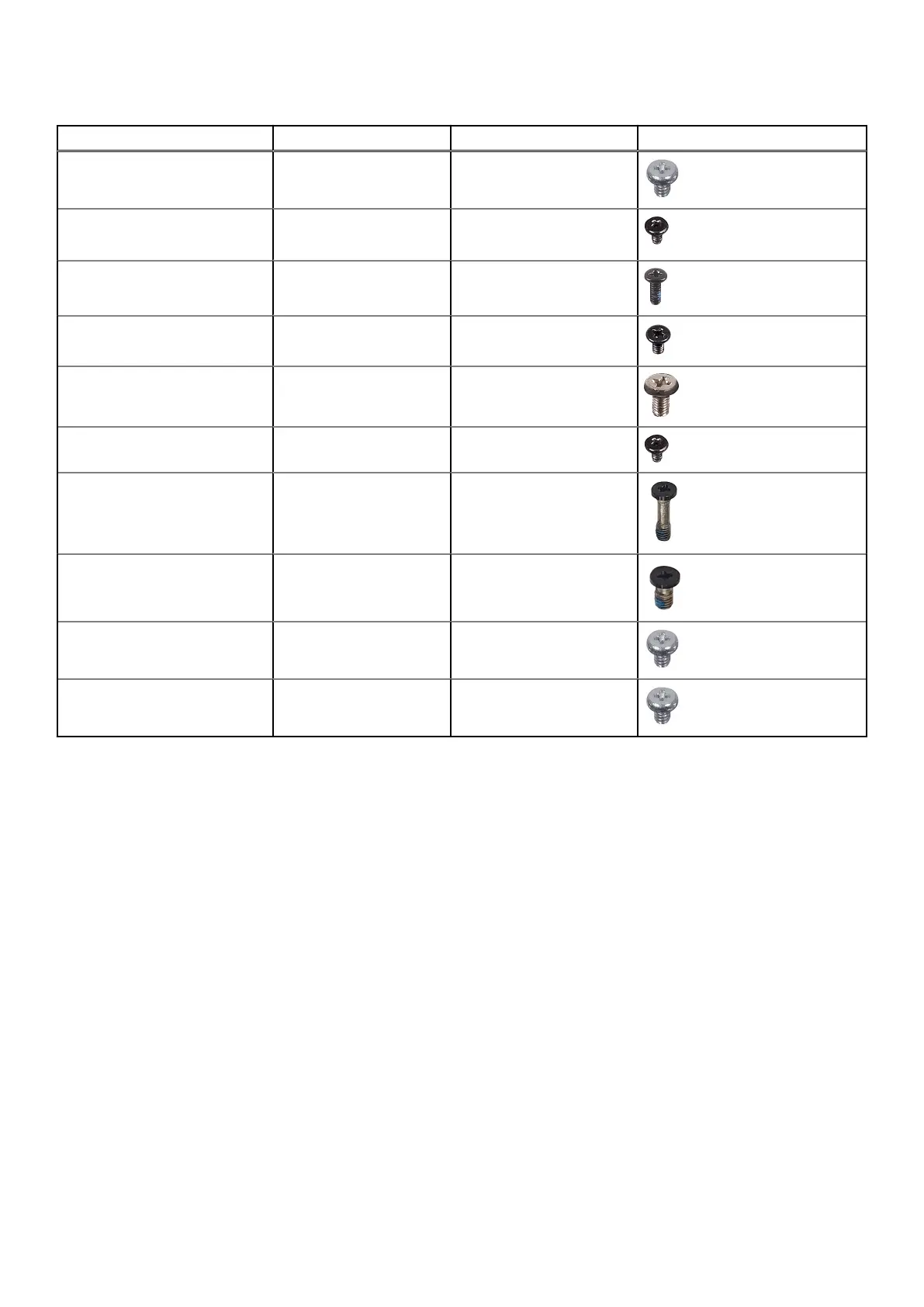

Tabelle 25. Screw list (fortgesetzt)
Component Screw type Quantity Screw image
Hard-drive and optical-drive
supporting bracket (LOW)
#6-32 1
Optical-drive supporting bracket
(LOW)
M2x3 1
Serial/VGA module M2x5
2
DP/HDMI/Type-C module M3x3 2
SD-card reader M3x5 1
WLAN card M2x3 1
Processor-fan and heat-sink
assembly
Captive 4
Voltage regulator heat-sink Captive 4
Power-supply unit #6-32 3
System board #6-32 5
Hauptkomponenten von OptiPlex Small Form Factor
Plus 7010
Die folgende Abbildung zeigt die wichtigsten Komponenten von OptiPlex Small Form Factor Plus 7010.
36
Arbeiten an Komponenten im Inneren des Computers
