5. Install the front bezel.
6. Install the side cover.
7. Follow the procedure in After working inside your computer.
SMA-Antenne
Removing the external SMA antenna kit
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the side cover.
3. Remove the front bezel.
4. Remove the 2.5-inch hard drive if applicable.
5. Remove the 3.5-inch hard drive if applicable.
6. Remove the disk-drive cage.
About this task

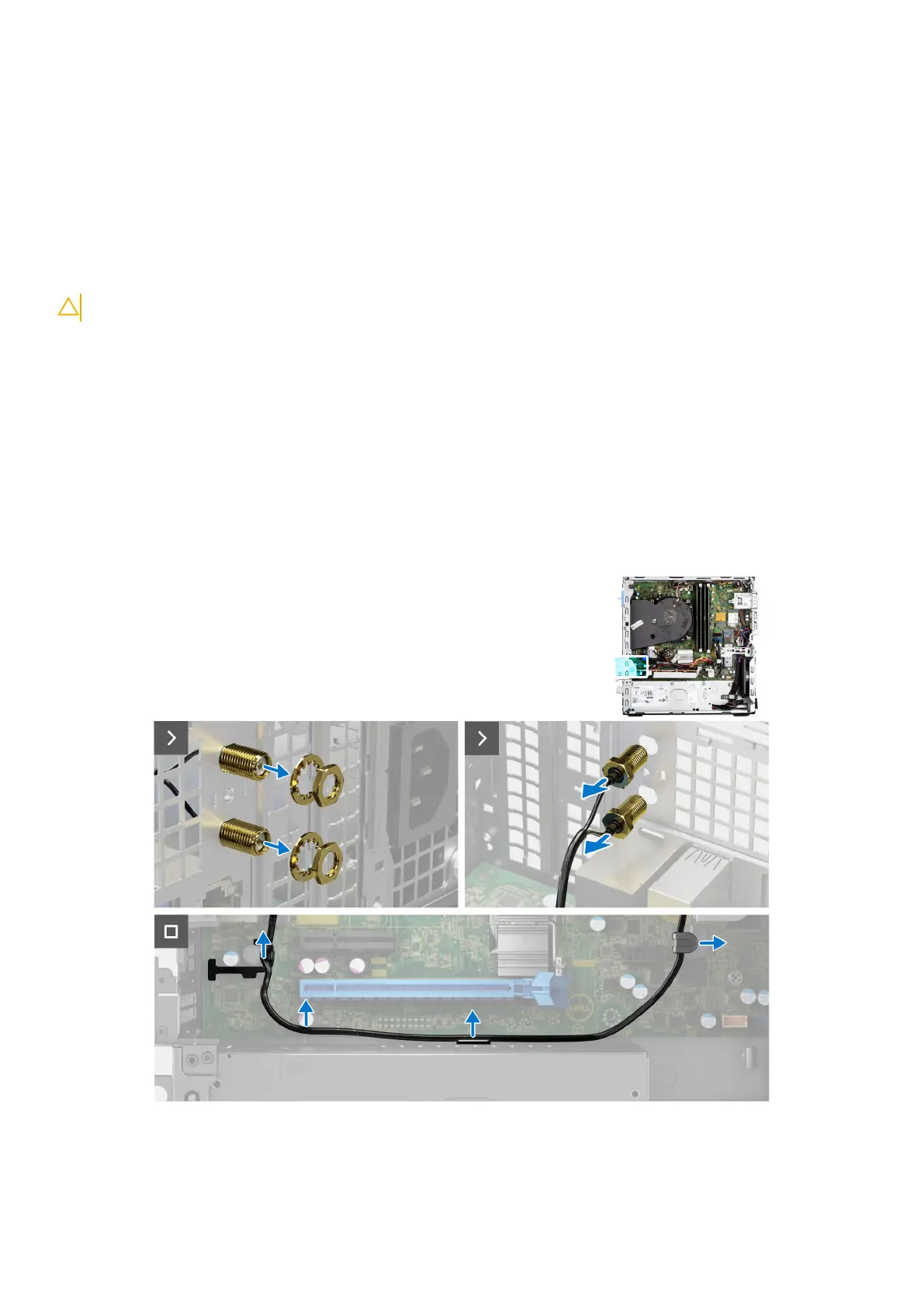

The following image indicates the location of the external SMA antenna kit and provides a visual representation of the removal
procedure.
Steps
1. Remove the nut and washer from the two antenna heads.
2. Gently pry and remove the antenna heads from the chassis.
90
Entfernen und Installieren von vor Ort austauschbaren Einheiten (FRUs)
