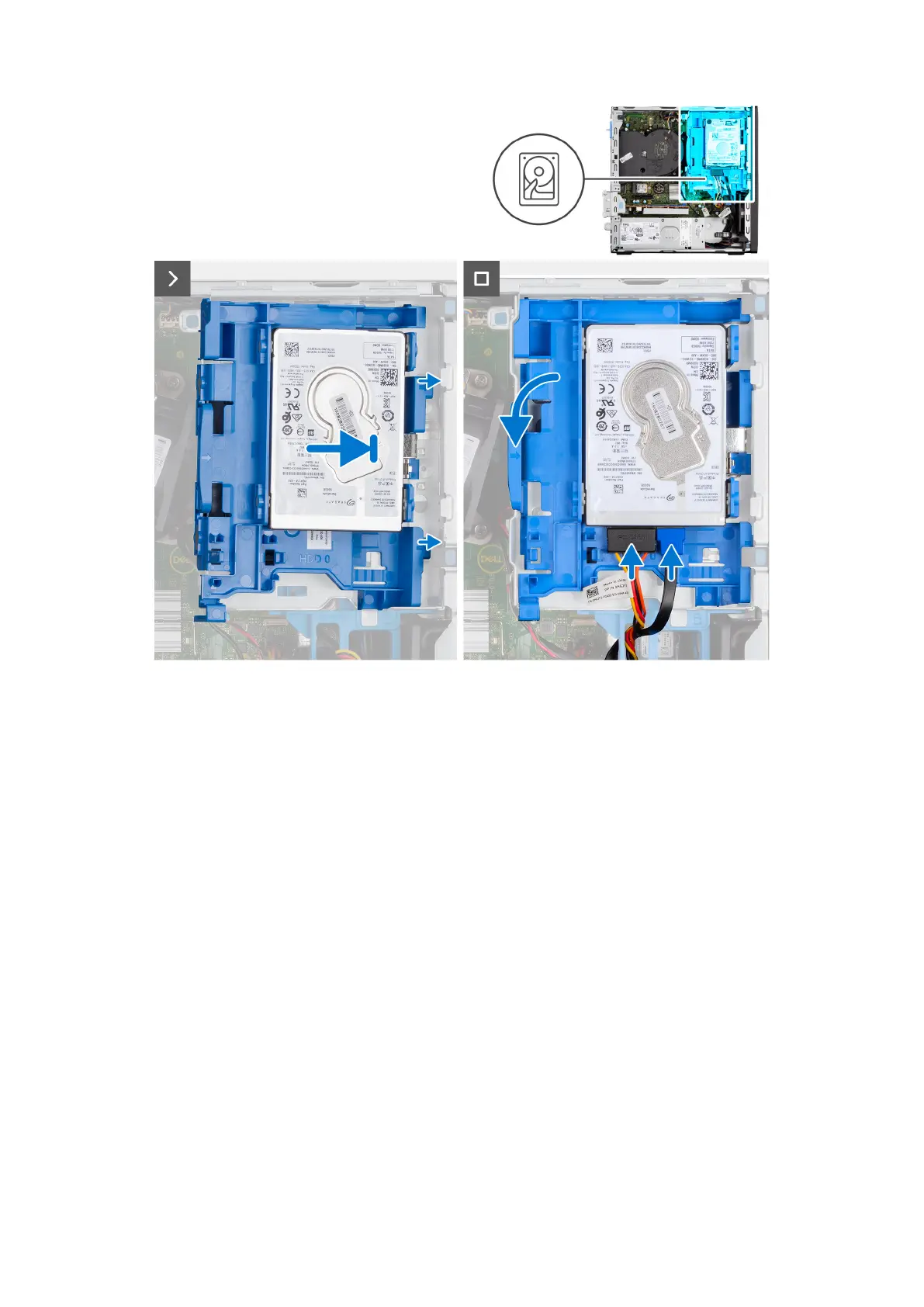

Steps
1. Align the slots on the hard drive with the mounting points on the hard-drive carrier.
2. Pry the hard-drive carrier to align the mounting points on the hard-drive carrier with the slots on the hard drive.
3. Snap the hard drive onto the hard-drive carrier.
4. Align the tabs on the hard-drive carrier with the slots on the chassis and snap the hard-drive carrier onto the disk-drive
cage.
5. Connect the data and power cables to the connectors on the hard drive.
Next steps
1. Install the side cover.
2. Follow the procedure in After working inside your computer.
3,5-Zoll-Festplattenlaufwerk
Removing the 3.5-inch hard drive
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the side cover.
About this task
The following image indicates the location of the 3.5-inch hard-drive assembly and provide a visual representation of the
removal procedure.
46
Entfernen und Installieren von vom Kunden austauschbaren Einheiten (CRUs)
