3. Remove the antenna cables from routing guides on the system board.
4. Remove the external SMA antenna kit off the system board.
Installing the SMA antenna kit
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

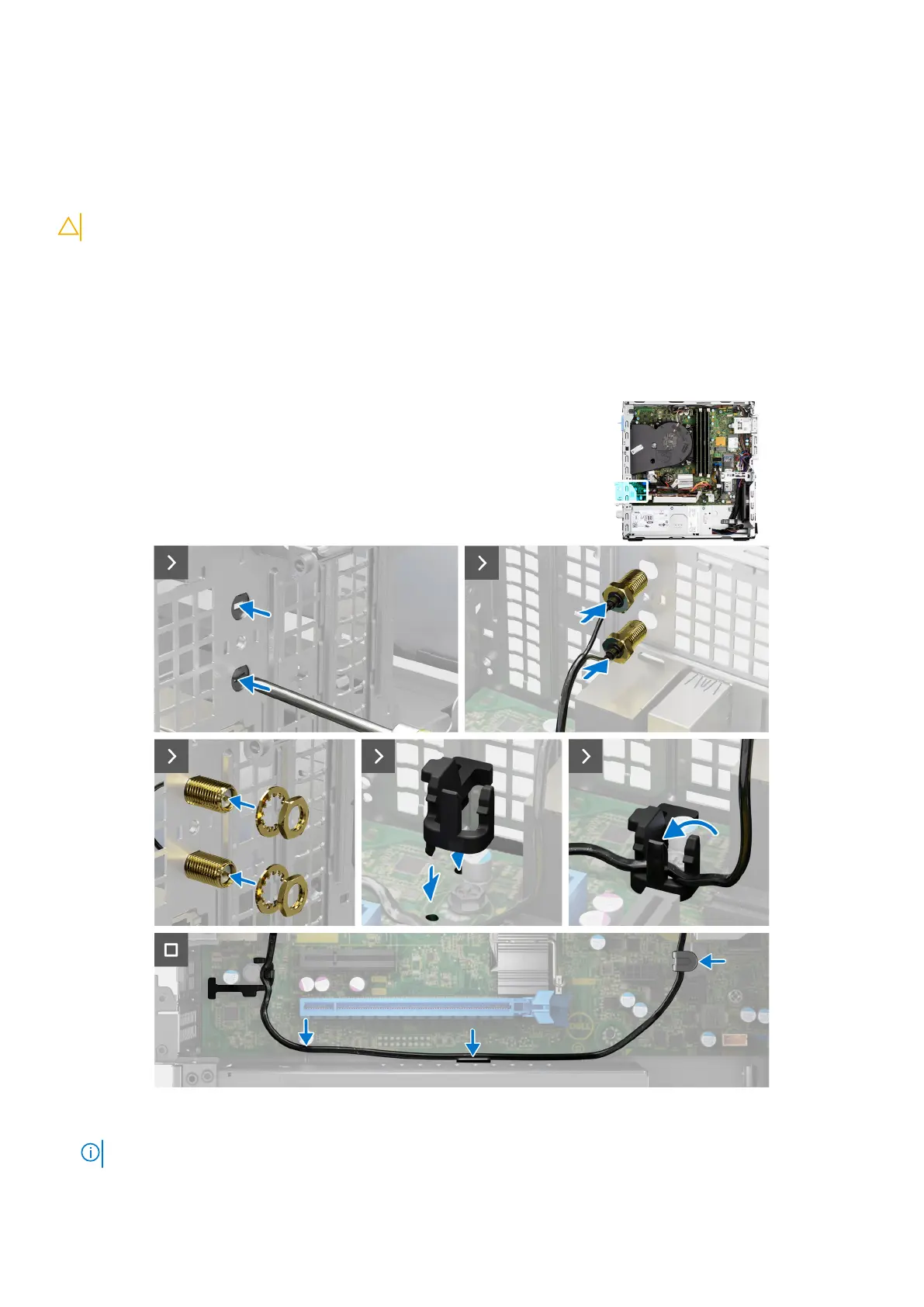

The following image indicates the location of the external SMA antenna kit and provides a visual representation of the
installation procedure.
Steps
1.
NOTE: Steps 1, 2, and 3 are required when installing the external SMA antenna kit for the first time.
Entfernen und Installieren von vor Ort austauschbaren Einheiten (FRUs) 91
