Table 1. Screw list (continued)
Component Secured to Screw type Quantity Screw image
System board Chassis #6-32 8
Left-side cover
Removing the left-side cover
Prerequisites
1. Follow the procedure in Before working inside your computer.
About this task

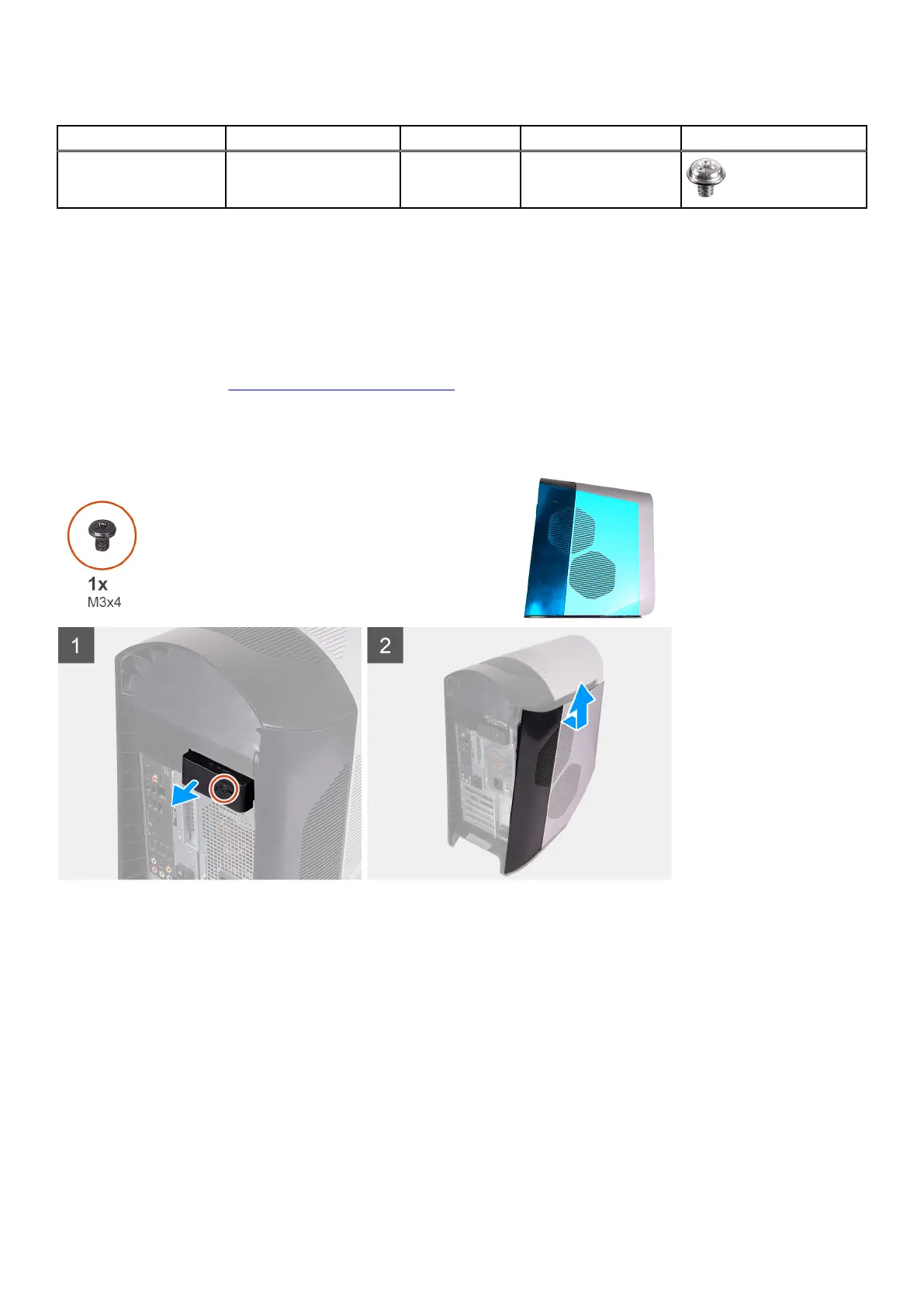

The following images indicate the location of the left-side cover and provides a visual representation of the removal procedure.
Steps
1. Remove the screw (M3x4) that secures the side-cover release latch to the chassis.
2. Pull the side-cover release latch to release the left-side cover away from the chassis.
3. Lift the left-side panel from the chassis.
Installing the left-side cover
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the left-side cover and provides a visual representation of the installation procedure.
