Power-button board
Removing the power-button board
Prerequisites
1. Follow the procedure in
Before working inside your computer.
2. Remove the left-side cover.
3. Remove the right-side cover.
4. Remove the
top-cover.
5. Remove the
front bezel.
About this task

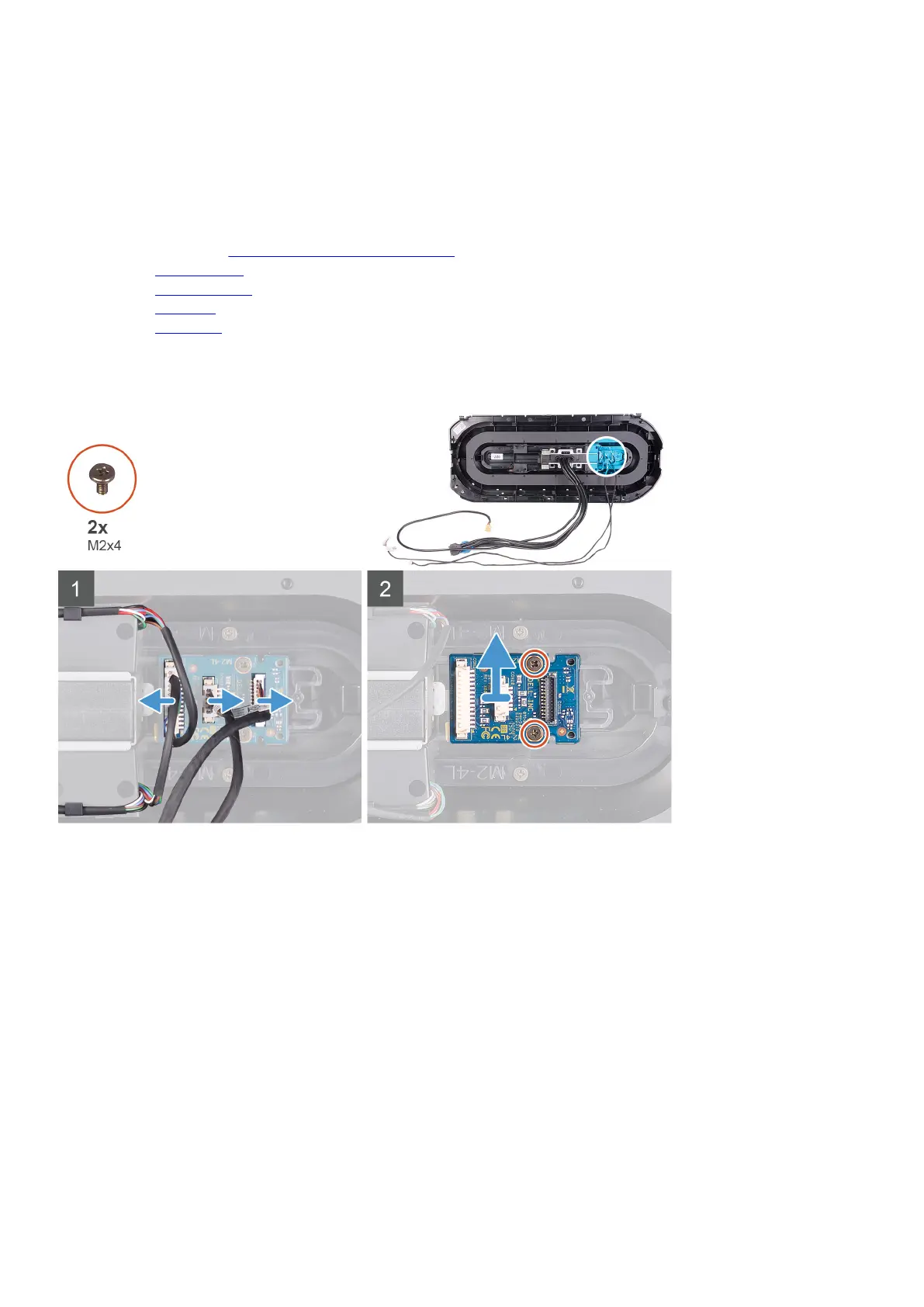

The following images indicate the location of the power-button board and provides a visual representation of the removal procedure.
Steps
1. Remove the two screws (M2x4) that secure the power-button module to the front bezel.
2. Lift the power-button module off the front bezel.
3. Disconnect the cables from the power-button module.
Installing the power-button board
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the power-button board and provides a visual representation of the installation
procedure.
