Steps

1. Remove the two screws (#6-32) that secure the 2.5-inch hard-drive cage to the chassis.

2. Slide and remove the 2.5-inch hard-drive cage off the chassis.

NOTE: Repeat the procedure from step 1 to step 2 to remove the other 2.5-inch hard-drive cage.

Installing the 2.5-inch hard-drive cage

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

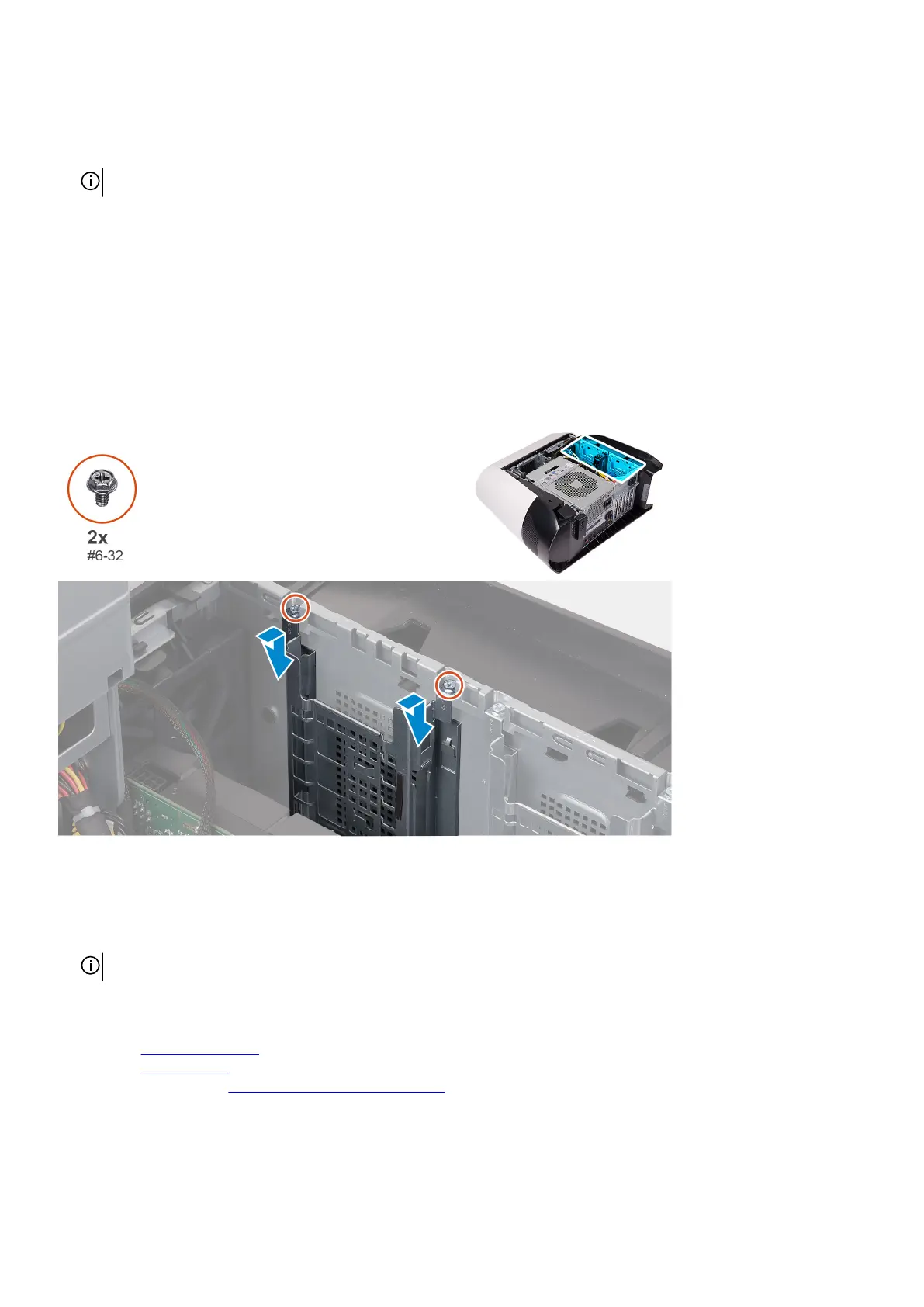

The following images indicate the location of the 2.5-inch hard-drive cage and provides a visual representation of the installation

procedure.

Steps

1. Insert the 2.5-inch hard-drive cage into its slot on the chassis.

2. Align the tabs on the cage with the tabs on the chassis.

3. Replace the two screws (#6-32) that secure the 2.5-inch hard-drive cage to the chassis.

NOTE: Repeat the procedure from step 1 to step 3 to install the other 2.5-inch hard-drive cage.

Next steps

1. Install the

2.5-inch hard drive, if required.

2. Install the

left-side cover.

3. Follow the procedure in After working inside your computer.
