Installing the bottom cover
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

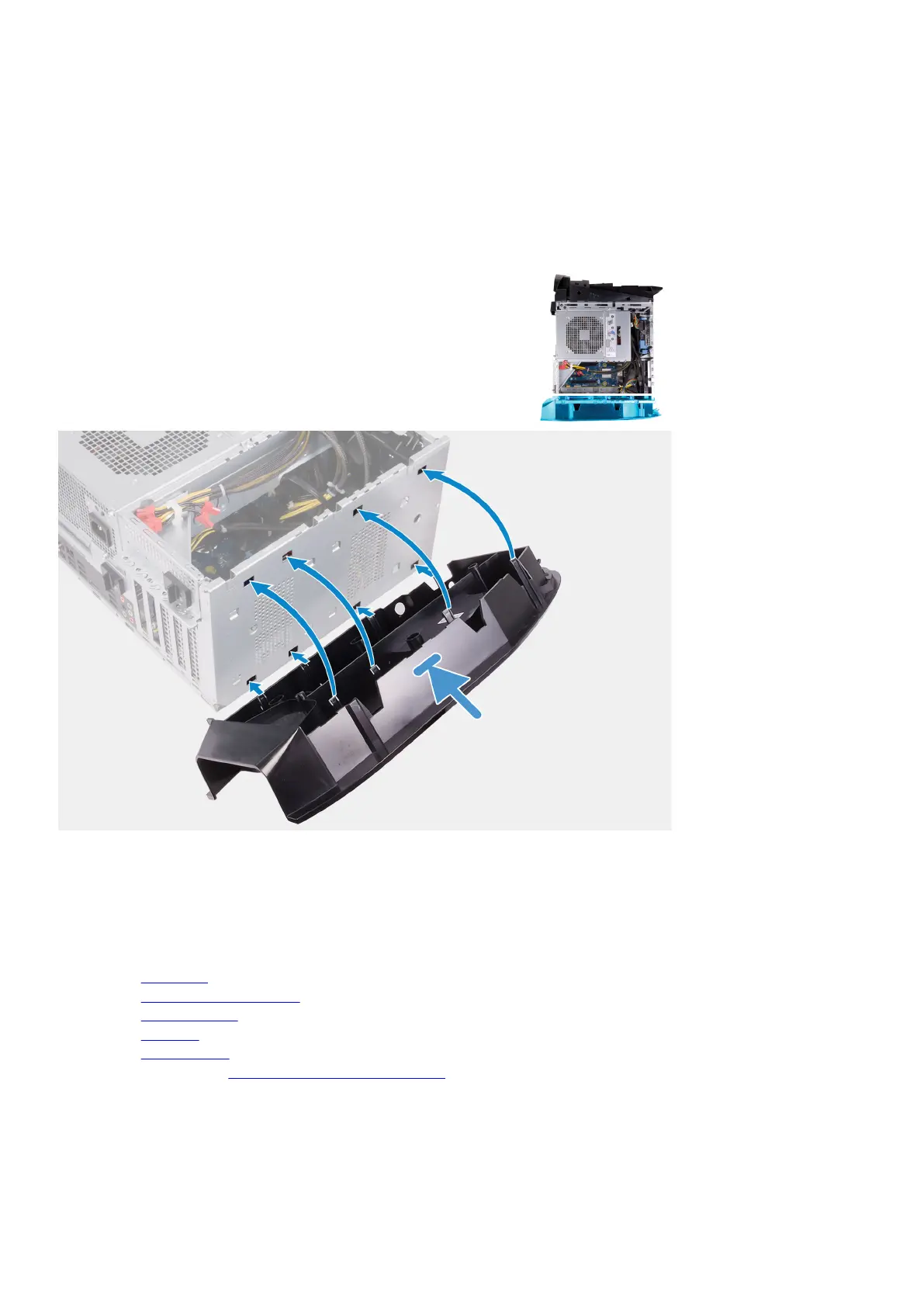

The following images indicate the location of the bottom cover and provides a visual representation of the installation procedure.
Steps
1. Align the tabs on the bottom cover with the slots on the chassis.
2. Rotate the bottom cover towards the chassis until it snaps into place.
Next steps
1. Install the front bezel.
2. Install the 2.5-inch hard-drive cages.
3. Install the
right-side cover.
4. Install the top cover.
5. Install the left-side cover.
6. Follow the procedure in After working inside your computer.
