Steps

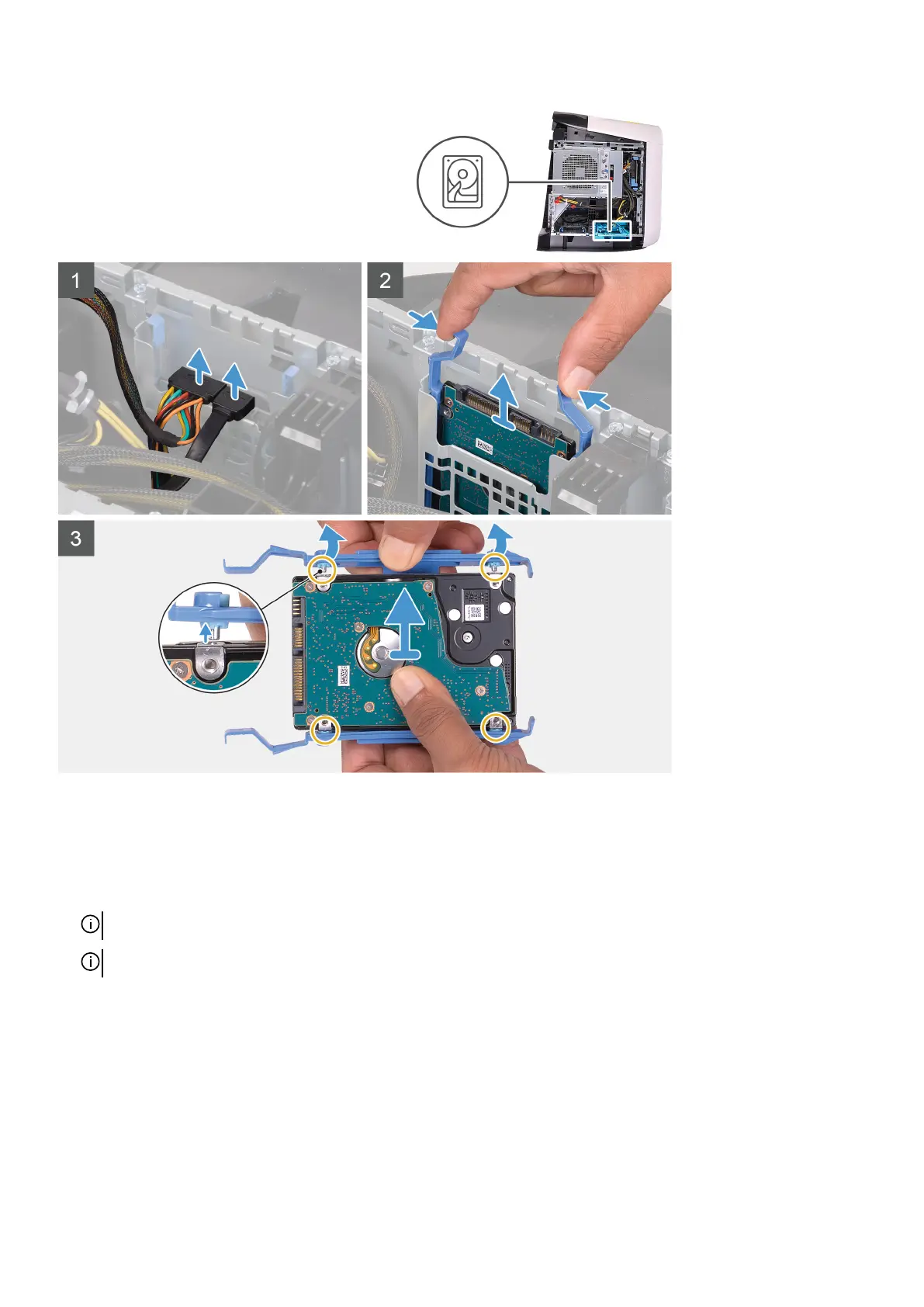

1. Disconnect the data and power cables from the hard drive.
2. Press the release tabs on the hard-drive carrier and slide the hard-drive assembly out of the hard-drive cage.
3. Pry the hard-drive carrier to release the tabs on the assembly from the slots on the hard drive.
4. Lift the hard drive out of the hard-drive assembly.
NOTE: Note the orientation of the hard drive so that you can replace it correctly.
NOTE: Repeat the steps to remove any additional 2.5-inch hard drive from your computer.
Installing the 2.5-inch hard drive
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the 2.5-inch hard drive and provides a visual representation of the installation
procedure.
20
