Next steps
1. Install the power supply units.
2. Follow the procedure listed in After working inside your system.
Related links
Installing a redundant power supply unit
Trusted Platform Module
Trusted Platform Module (TPM) is a dedicated microprocessor designed to secure hardware by integrating cryptographic keys into
devices. A software can use a Trusted Platform Module to authenticate hardware devices. As each TPM chip has a unique and
secret RSA key burned in as it is produced, it can perform the platform authentication.
CAUTION: Do not attempt to remove the Trusted Platform Module (TPM) from the system board. After the TPM is
installed, it is cryptographically bound to that specic system board. Any attempt to remove an installed TPM breaks the
cryptographic binding, and it cannot be re-installed or installed on another system board.
NOTE: This is a Field Replaceable Unit (FRU). Removal and installation procedures must be performed only by Dell
certied service technicians.
Installing the Trusted Platform Module
Prerequisites
CAUTION: Many repairs may only be done by a certied service technician. You should only perform troubleshooting and
simple repairs as authorized in your product documentation, or as directed by the online or telephone service and support
team. Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety
instructions that are shipped with your product.
NOTE: This is a Field Replaceable Unit (FRU). Removal and installation procedures should be performed only by Dell
certied service technicians.
1. Follow the safety guidelines listed in the Safety instructions section.
2. Follow the procedure listed in the Before working inside your system section.
Steps
1. Locate the TPM connector on the system board.
NOTE: To locate the TPM connector on the system board, see the System board connectors section.
2. Align the edge connectors on the TPM with the slot on the TPM connector.
3. Insert the TPM into the TPM connector such that the plastic rivet aligns with the slot on the system board.
4. Press the plastic rivet until the rivet snaps into place.

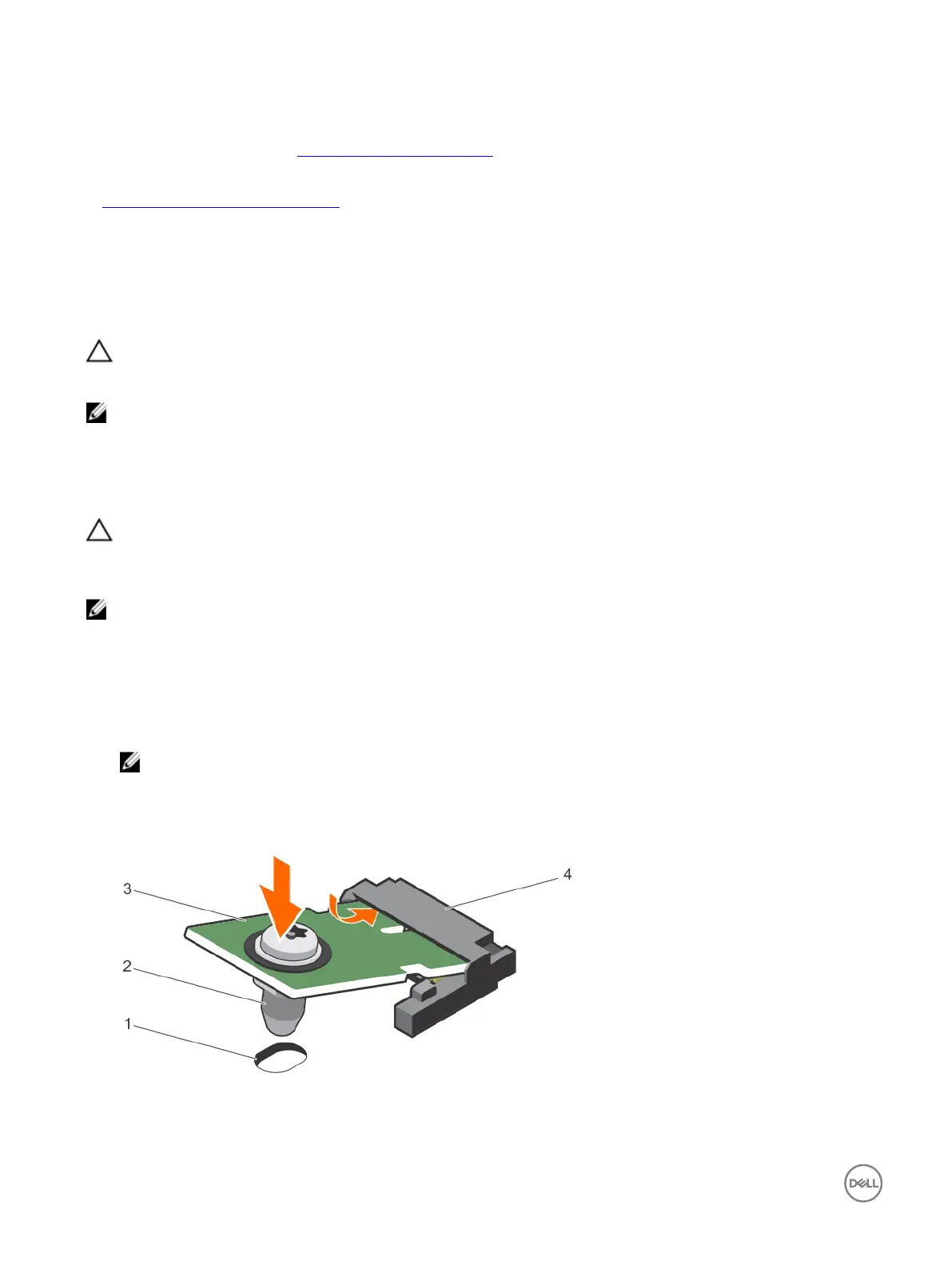

Figure 104. Installing the TPM
1.
rivet slot on the system board 2. plastic rivet
140

Dell PowerEdge R330 Specifications

General

Dell E-Value Code	PER3303a
Processor cache	8 MB
Processor cores	4
Processor model	E3-1220V6
System bus rate	8 GT/s
Processor socket	LGA 1151 (Socket H4)
Motherboard chipset	Intel® C236
Processor frequency	3 GHz
Processor cache type	Smart Cache
Processor lithography	14 nm
Processor manufacturer	Intel
Processor boost frequency	3.5 GHz
Compatible processor series	Intel® Xeon®
Number of processors installed	1
Performance management	IPMI 2.0, Dell OpenManage
Trusted Platform Module (TPM)	Yes
Operating system installed	No
Compatible operating systems	Microsoft Windows Server 2012 R2 Microsoft Windows Server 2012 Red Hat Enterpise Linux SUSE Linux Enterprise Server 12 SP1 SUSE Linux Enterprise Server 11 SP4 VMware vSphere ESXi
Memory slots	4x DIMM
Internal memory	4 GB
Memory clock speed	2400 MHz
Internal memory type	DDR4-SDRAM
Maximum internal memory	64 GB
Memory layout (slots x size)	1 x 4 GB
HDD size	3.5 \
HDD speed	7200 RPM
RAID support	-
HDD interface	Serial ATA III
Optical drive type	DVD±RW
Total storage capacity	1000 GB
Maximum storage capacity	- TB
Supported storage drive interfaces	SAS, Serial ATA III
Chassis type	Rack (1U)
Power supply	350 W
Power supply input frequency	50 - 60 Hz
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet
USB 2.0 ports quantity	2
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12000 m
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Depth	625 mm
Width	434 mm
Height	42.8 mm
Weight	13800 g
