Dell PowerEdge R330 User Manual

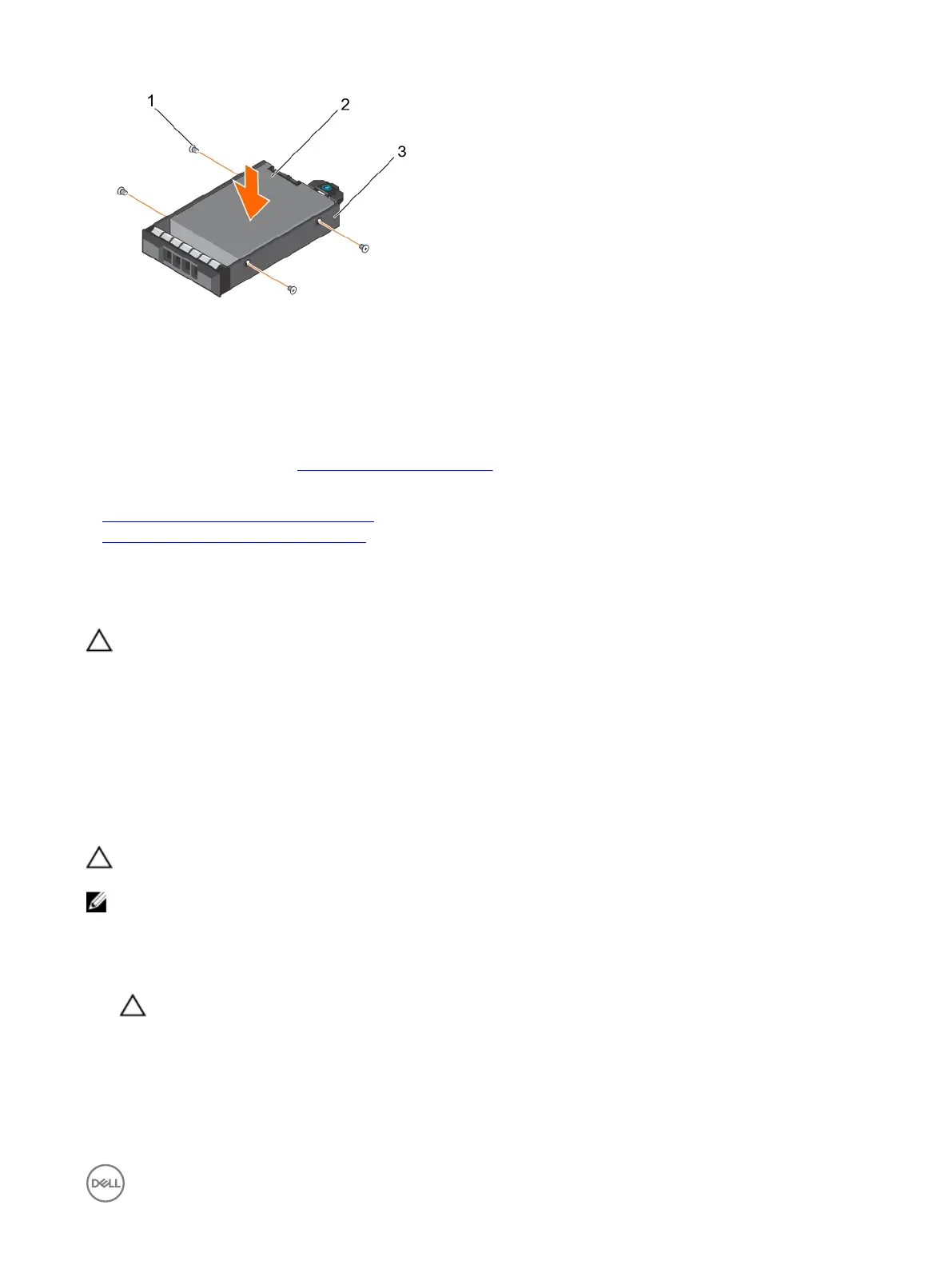

Figure 33. Installing a cabled hard drive to a cabled hard drive carrier
1. screw (4) 2. cabled hard drive
3. cabled hard drive carrier
Next steps
1. Install the cabled hard drive carrier.
2. Follow the procedure listed in After working inside your system.
Related links
Removing a 3.5-inch cabled hard drive carrier
Installing a 3.5-inch cabled hard drive carrier
Removing a hot swappable hard drive carrier
Prerequisites
CAUTION: Many repairs may only be done by a certied service technician. You should only perform troubleshooting and
simple repairs as authorized in your product documentation, or as directed by the online or telephone service and support
team. Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety
instructions that came with the product.
1. Follow the safety guidelines listed in the Safety instructions section.
2. If installed, remove the front bezel.
3. Using the management software, prepare the hard drive for removal. For more information, see the documentation for the
storage controller.
If the hard drive is online, the green activity or fault indicator ashes when the hard drive is turned o. You can remove the hard
drive when the hard drive indicators turn o.
CAUTION: To prevent data loss, ensure that your operating system supports hot-swap drive installation. See the
documentation supplied with your operating system.
NOTE: Hot swappable hard drives are supplied in hot swappable hard drive carriers that t in the hard drive slots.
Steps
1. Press the release button to open the hard drive carrier release handle.
2. Slide the hard drive carrier out of the hard drive slot.
CAUTION: To maintain proper system cooling, all empty hard drive slots must have hard drive carrier blanks installed.
73

Dell PowerEdge R330 Specifications

General

Dell E-Value Code	PER3303a
Processor cache	8 MB
Processor cores	4
Processor model	E3-1220V6
System bus rate	8 GT/s
Processor socket	LGA 1151 (Socket H4)
Motherboard chipset	Intel® C236
Processor frequency	3 GHz
Processor cache type	Smart Cache
Processor lithography	14 nm
Processor manufacturer	Intel
Processor boost frequency	3.5 GHz
Compatible processor series	Intel® Xeon®
Number of processors installed	1
Performance management	IPMI 2.0, Dell OpenManage
Trusted Platform Module (TPM)	Yes
Operating system installed	No
Compatible operating systems	Microsoft Windows Server 2012 R2 Microsoft Windows Server 2012 Red Hat Enterpise Linux SUSE Linux Enterprise Server 12 SP1 SUSE Linux Enterprise Server 11 SP4 VMware vSphere ESXi
Memory slots	4x DIMM
Internal memory	4 GB
Memory clock speed	2400 MHz
Internal memory type	DDR4-SDRAM
Maximum internal memory	64 GB
Memory layout (slots x size)	1 x 4 GB
HDD size	3.5 \
HDD speed	7200 RPM
RAID support	-
HDD interface	Serial ATA III
Optical drive type	DVD±RW
Total storage capacity	1000 GB
Maximum storage capacity	- TB
Supported storage drive interfaces	SAS, Serial ATA III
Chassis type	Rack (1U)
Power supply	350 W
Power supply input frequency	50 - 60 Hz
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet
USB 2.0 ports quantity	2
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12000 m
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Depth	625 mm
Width	434 mm
Height	42.8 mm
Weight	13800 g
