Dell PowerEdge R330 User Manual

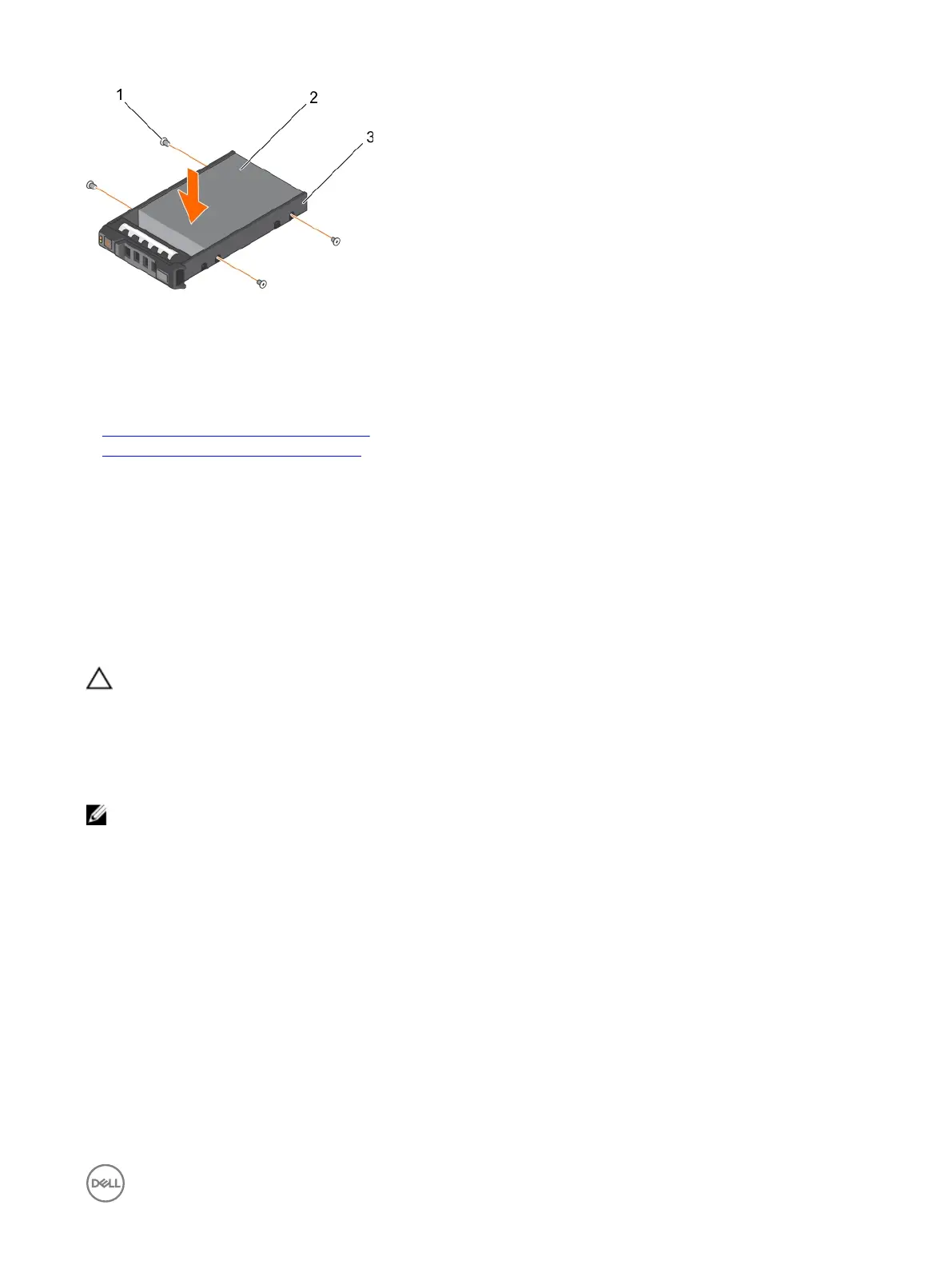

Figure 45. Installing a hot swappable hard drive into a hot swappable hard drive carrier
1. screw (4)
2. hard drive
3. hard drive carrier
Related links
Removing a hot swappable hard drive carrier
Installing a hot swappable hard drive carrier
Optical drive (optional)
Optical drives retrieve and store data on optical discs such as CD and DVD. Optical drives can be categorized into two basic types:
optical disc readers and optical disc writers.
Removing the optional optical drive
The procedure for removing an optical drive and optical drive blank is the same.
Prerequisites
CAUTION: Many repairs may only be done by a certied service technician. You should only perform troubleshooting and
simple repairs as authorized in your product documentation, or as directed by the online or telephone service and support
team. Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety
instructions that are shipped with your product.
1. Follow the safety guidelines listed in the Safety instructions section.
2. Follow the procedure listed in the Before working inside your system section.
NOTE: Observe the routing of the power and data cables inside the chassis as you remove them from the system board
and the optical drive. Route these cables in the same way when you replace them to prevent them from being pinched or
crimped.
Steps
1. Disconnect the power and data cables from the back of the optical drive.
2. If required, disconnect the power and data cables from the system board.
3. To release the optical drive, press and push the release tab toward the front of the system.
4. Slide the optical drive out of the system.
83

Dell PowerEdge R330 Specifications

General

Dell E-Value Code	PER3303a
Processor cache	8 MB
Processor cores	4
Processor model	E3-1220V6
System bus rate	8 GT/s
Processor socket	LGA 1151 (Socket H4)
Motherboard chipset	Intel® C236
Processor frequency	3 GHz
Processor cache type	Smart Cache
Processor lithography	14 nm
Processor manufacturer	Intel
Processor boost frequency	3.5 GHz
Compatible processor series	Intel® Xeon®
Number of processors installed	1
Performance management	IPMI 2.0, Dell OpenManage
Trusted Platform Module (TPM)	Yes
Operating system installed	No
Compatible operating systems	Microsoft Windows Server 2012 R2 Microsoft Windows Server 2012 Red Hat Enterpise Linux SUSE Linux Enterprise Server 12 SP1 SUSE Linux Enterprise Server 11 SP4 VMware vSphere ESXi
Memory slots	4x DIMM
Internal memory	4 GB
Memory clock speed	2400 MHz
Internal memory type	DDR4-SDRAM
Maximum internal memory	64 GB
Memory layout (slots x size)	1 x 4 GB
HDD size	3.5 \
HDD speed	7200 RPM
RAID support	-
HDD interface	Serial ATA III
Optical drive type	DVD±RW
Total storage capacity	1000 GB
Maximum storage capacity	- TB
Supported storage drive interfaces	SAS, Serial ATA III
Chassis type	Rack (1U)
Power supply	350 W
Power supply input frequency	50 - 60 Hz
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet
USB 2.0 ports quantity	2
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12000 m
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Depth	625 mm
Width	434 mm
Height	42.8 mm
Weight	13800 g
