Dell PowerEdge R330 User Manual

Steps
1. Insert the 3.5-inch hard drive adapter into the 3.5-inch hot swappable hard drive carrier with the connector end of the hard
drive toward the back of the 3.5-inch hot swappable hard drive carrier.
2. Align the screw holes on the 3.5-inch hard drive adapter and the 3.5-inch hard drive with the holes on the 3.5-inch hot
swappable hard drive carrier.
3. Install the screws to secure the 3.5-inch hard drive adapter to the 3.5-inch hot swappable hard drive carrier.

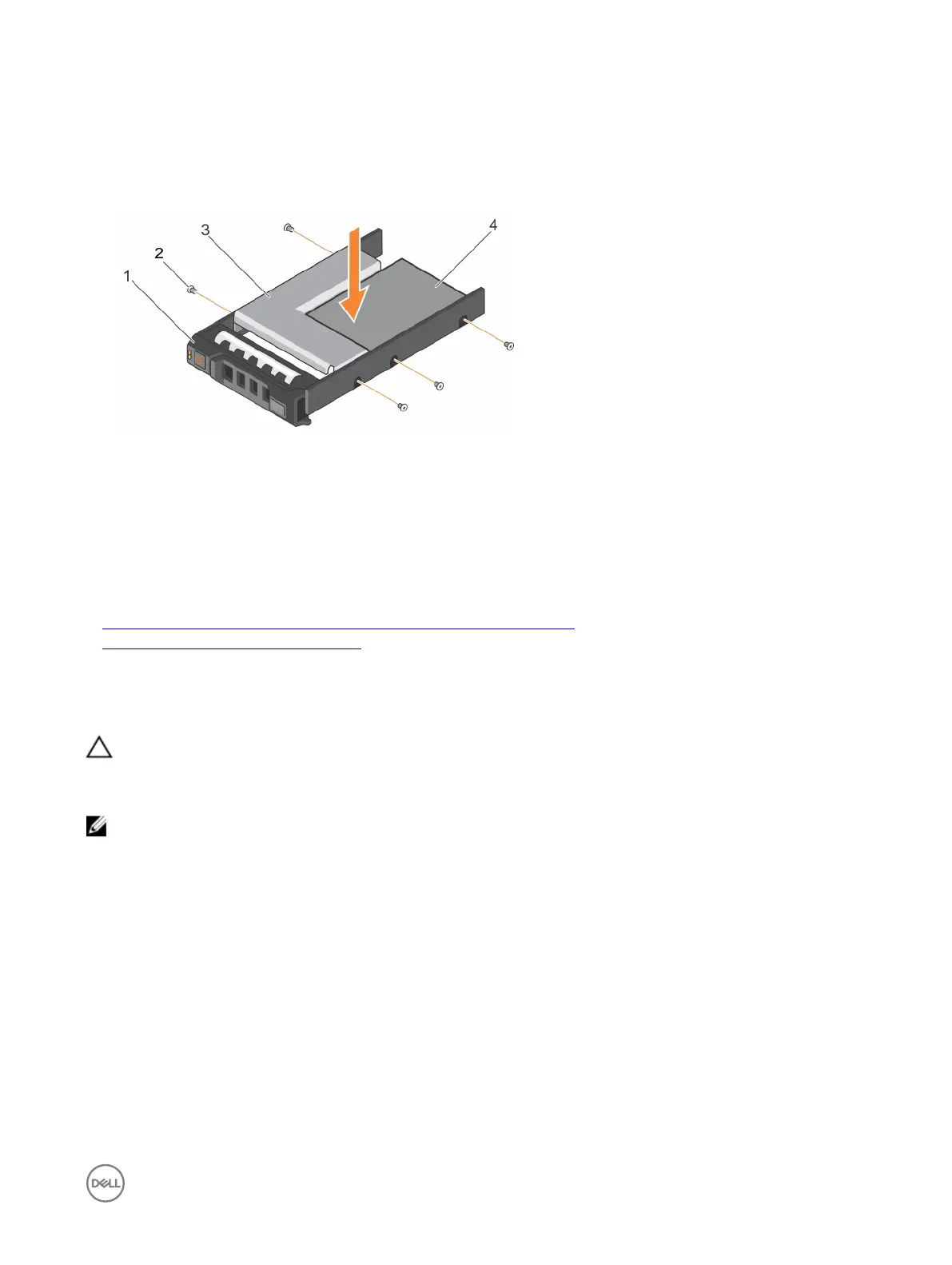

Figure 43. Installing a 3.5-inch hard drive adapter into a hot swappable hard drive carrier
1. 3.5-inch hot swappable hard drive carrier 2. screw (5)
3. hard drive adapter
4. 2.5-inch hard drive
Next steps
Install the 3.5-inch hot swappable hard drive carrier into the system.
Related links
Installing a 2.5-inch hot swappable hard drive into a 3.5-inch hard drive adapter
Installing a hot swappable hard drive carrier
Removing a hot swappable hard drive from a hard drive carrier
Prerequisites
CAUTION: Many repairs may only be done by a certied service technician. You should only perform troubleshooting and
simple repairs as authorized in your product documentation, or as directed by the online or telephone service and support
team. Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety
instructions that are shipped with your product.
NOTE: Hot swappable hard drives are supplied in hot swappable hard drive carriers that t in the hard drive slots.
1. Keep the Phillips #2 screwdriver ready.
2. Remove the hard drive carrier from the system.
Steps
1. Remove the screws from the side rails on the hard drive carrier.
2. Lift the hard drive out of the hard drive carrier.
81

Dell PowerEdge R330 Specifications

General

Dell E-Value Code	PER3303a
Processor cache	8 MB
Processor cores	4
Processor model	E3-1220V6
System bus rate	8 GT/s
Processor socket	LGA 1151 (Socket H4)
Motherboard chipset	Intel® C236
Processor frequency	3 GHz
Processor cache type	Smart Cache
Processor lithography	14 nm
Processor manufacturer	Intel
Processor boost frequency	3.5 GHz
Compatible processor series	Intel® Xeon®
Number of processors installed	1
Performance management	IPMI 2.0, Dell OpenManage
Trusted Platform Module (TPM)	Yes
Operating system installed	No
Compatible operating systems	Microsoft Windows Server 2012 R2 Microsoft Windows Server 2012 Red Hat Enterpise Linux SUSE Linux Enterprise Server 12 SP1 SUSE Linux Enterprise Server 11 SP4 VMware vSphere ESXi
Memory slots	4x DIMM
Internal memory	4 GB
Memory clock speed	2400 MHz
Internal memory type	DDR4-SDRAM
Maximum internal memory	64 GB
Memory layout (slots x size)	1 x 4 GB
HDD size	3.5 \
HDD speed	7200 RPM
RAID support	-
HDD interface	Serial ATA III
Optical drive type	DVD±RW
Total storage capacity	1000 GB
Maximum storage capacity	- TB
Supported storage drive interfaces	SAS, Serial ATA III
Chassis type	Rack (1U)
Power supply	350 W
Power supply input frequency	50 - 60 Hz
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet
USB 2.0 ports quantity	2
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12000 m
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Depth	625 mm
Width	434 mm
Height	42.8 mm
Weight	13800 g
