Dell PowerEdge R740xd Service Manual

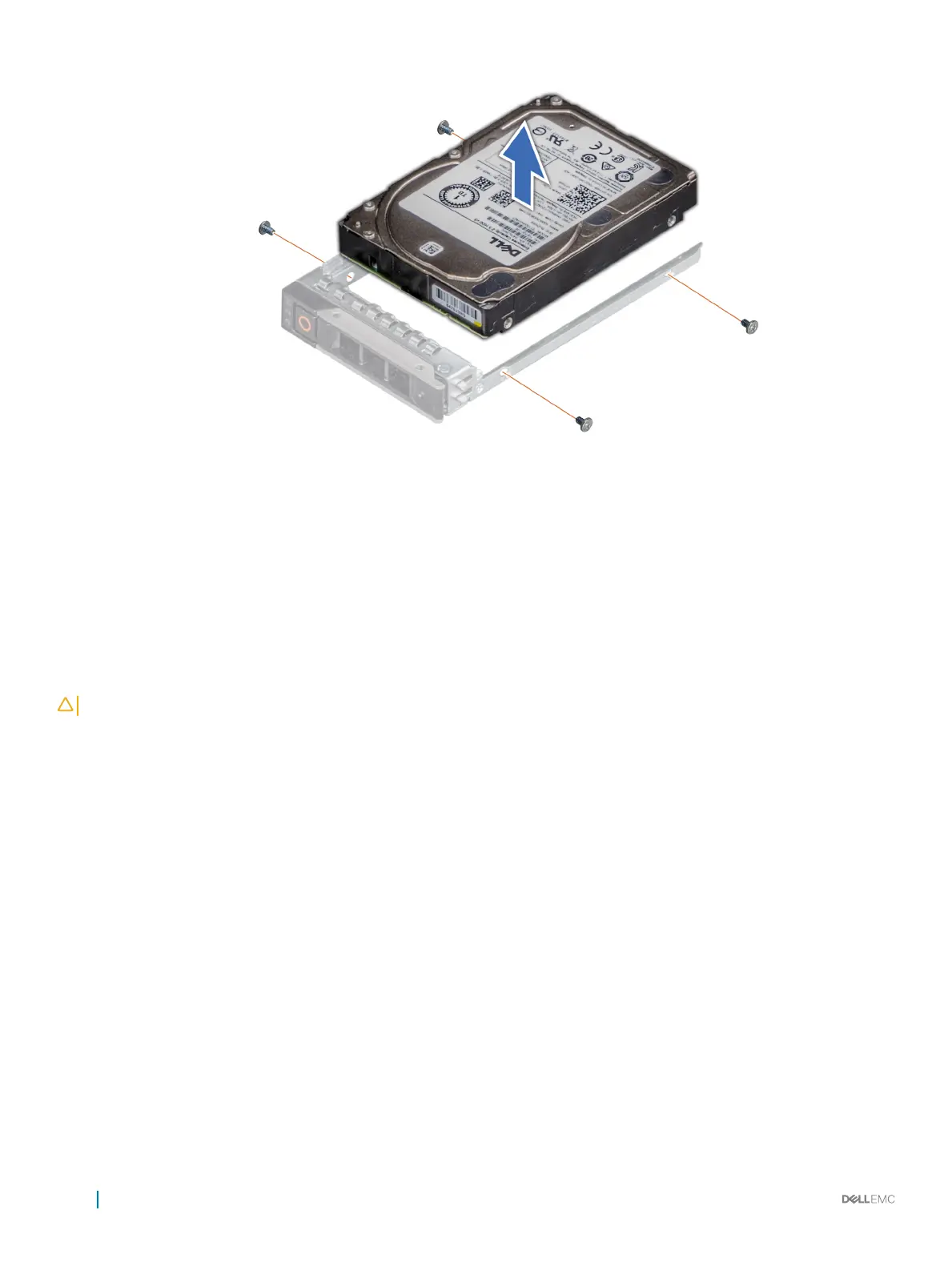

Figure 55. Removing the drive from the drive carrier
Next step
If applicable, install the drive into the drive carrier.
Related link
Installing a drive into the drive carrier
Installing a drive into the drive carrier
Prerequisite
CAUTION
: Mixing drive carriers from other generations of PowerEdge servers is not supported.
Steps
1 Insert the drive into the drive carrier with the connector end of the drive towards the back of the carrier.
2 Align the screw holes on the drive with the screws holes on the drive carrier.
When aligned correctly, the back of the drive is ush with the back of the drive carrier.
3 Using the Phillips #1 screwdriver, secure the drive to the drive carrier with screws.
106
Installing and removing system components

Dell PowerEdge R740xd Specifications

General

Processor cache	22 MB
Processor model	4216
Execute Disable Bit	Yes
Processor frequency	2.1 GHz
Processor manufacturer	Intel
Processor boost frequency	3.2 GHz
On-board graphics card	-
Memory slots	24
Memory ranking	2
Internal memory	16 GB
Buffered memory type	Registered (buffered)
Internal memory type	DDR4-SDRAM
Maximum internal memory	192 GB
HDD size	2.5 \
HDD speed	10000 RPM
HDD interface	Serial Attached SCSI (SAS)
Optical drive type	No
Total storage capacity	1800 GB
Maximum storage capacity	- TB
Number of HDDs installed	1
Supported RAID controllers	PERC H740P 8GB
LAN controller	Broadcom 5720, Broadcom 57412
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	10 Gigabit Ethernet, Gigabit Ethernet
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	4
Chassis type	Rack (2U)
Product color	Black
Compatible operating systems	- Canonical Ubuntu LTS - Citrix XenServer - Microsoft Windows Server with Hyper-V - Red Hat Enterprise Linux - SUSE Linux Enterprise Server - VMware ESXi
Power supply	750 W
Certification	CE, CCC, BIS
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12000 m
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Width	- mm
Height	86.8 mm
