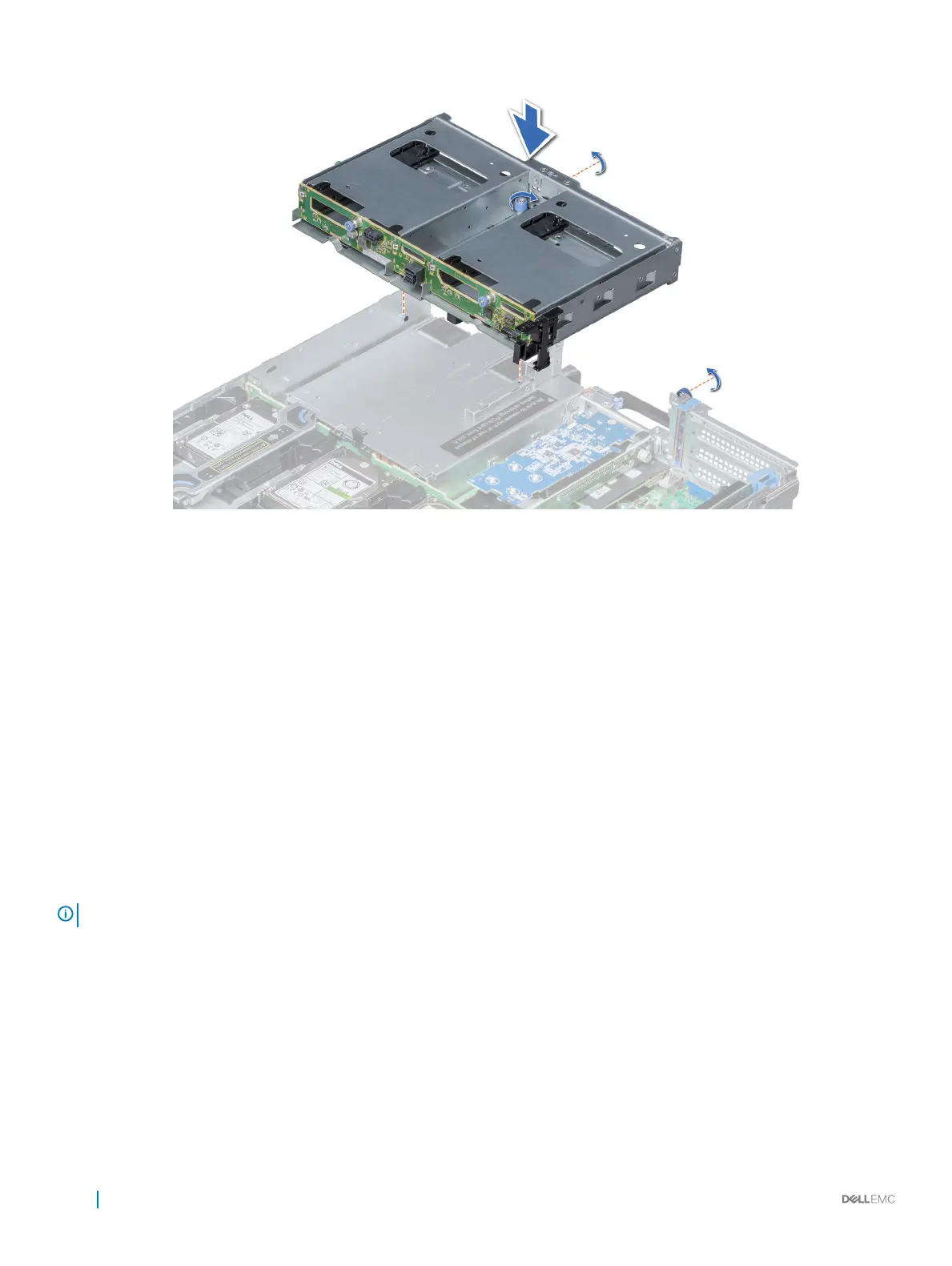

Figure 60. Installing 2 x 3.5 inch rear drive cage
Next steps
1 Install the rear drive backplane.
2 Connect all the cables to the rear drive backplane.
3 Install all the drives.
4 Follow the procedure listed in After working inside your system.
Related link
Installing 3.5 inch drive backplane (rear)
Installing the 2.5 inch drive backplane (rear)
Installing a drive carrier
System memory
The system supports DDR4 registered DIMMs (RDIMMs), load reduced DIMMs (LRDIMMs) and non-volatile dual in-line DIMM-Ns
(NVDIMM-Ns). System memory holds the instructions that are executed by the processor.
NOTE
: MT/s indicates DIMM speed in MegaTransfers per second.
Memory bus operating frequency can be 2666 MT/s, 2400 MT/s, or 2133 MT/s depending on the following factors:
DIMM type (RDIMM or LRDIMM)
Number of DIMMs populated per channel
System prole selected (for example, Performance Optimized, or Custom [can be run at high speed or lower])
Maximum supported DIMM frequency of the processors
Your system contains 24 memory sockets split into two sets of 12 sockets, one set per processor. Each 12-socket set is organized into six
channels. In each channel, the release tabs of the rst socket are marked white, and the second socket black.
110
