Installing expansion card riser 3
Prerequisite
Follow the safety guidelines listed in Safety instructions.
Steps
1 Align the tab on the riser with the slot on the system, and guide rails on the riser with the standos on the side of the system.
2 Lower the riser into the system until the riser edge connector engages with the connector on the system board.
The riser card edge engages with the riser guide on the system.
3 Using Phillips #2 screwdriver, tighten the screw to secure the riser to the system.

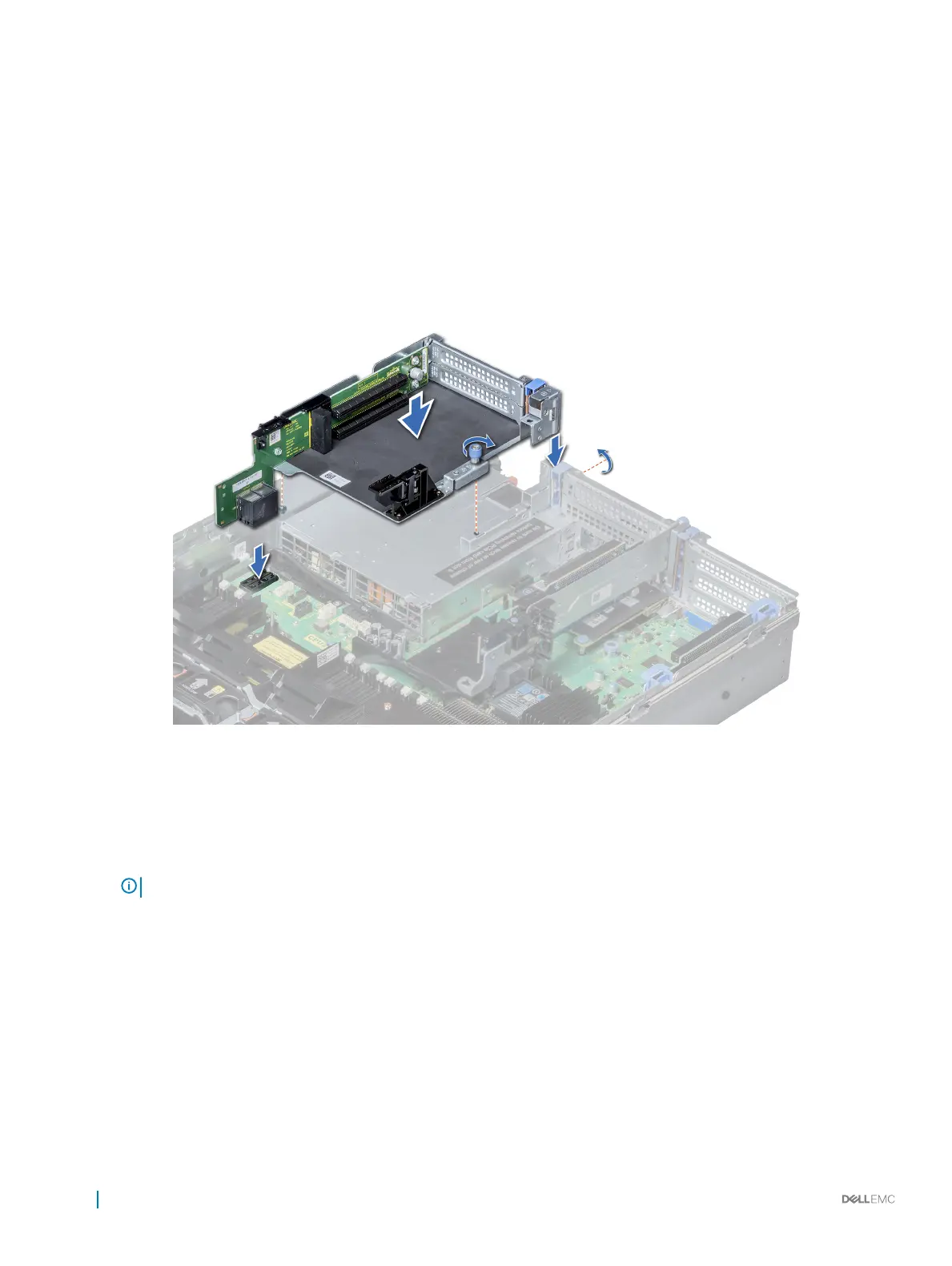

Figure 94. Installing expansion card riser 3
Next steps
1 If removed, install expansion cards into the riser.
2 Install the air shroud.
NOTE
: If applicable, open the PCIe card holder latch on the air shroud to install the full length card.
3 Follow the procedure listed in After working inside your system.
4 Install any device drivers required for the card as described in the documentation for the card.
Related link
Installing expansion card into expansion card riser
Installing the air shroud
GPU card installation guidelines
• Ensure that both the processors are installed.
• The processor must use a GPU kit low-prole processor and heat sink module.
144
Installing and removing system components
