Dell PowerEdge R740xd Service Manual

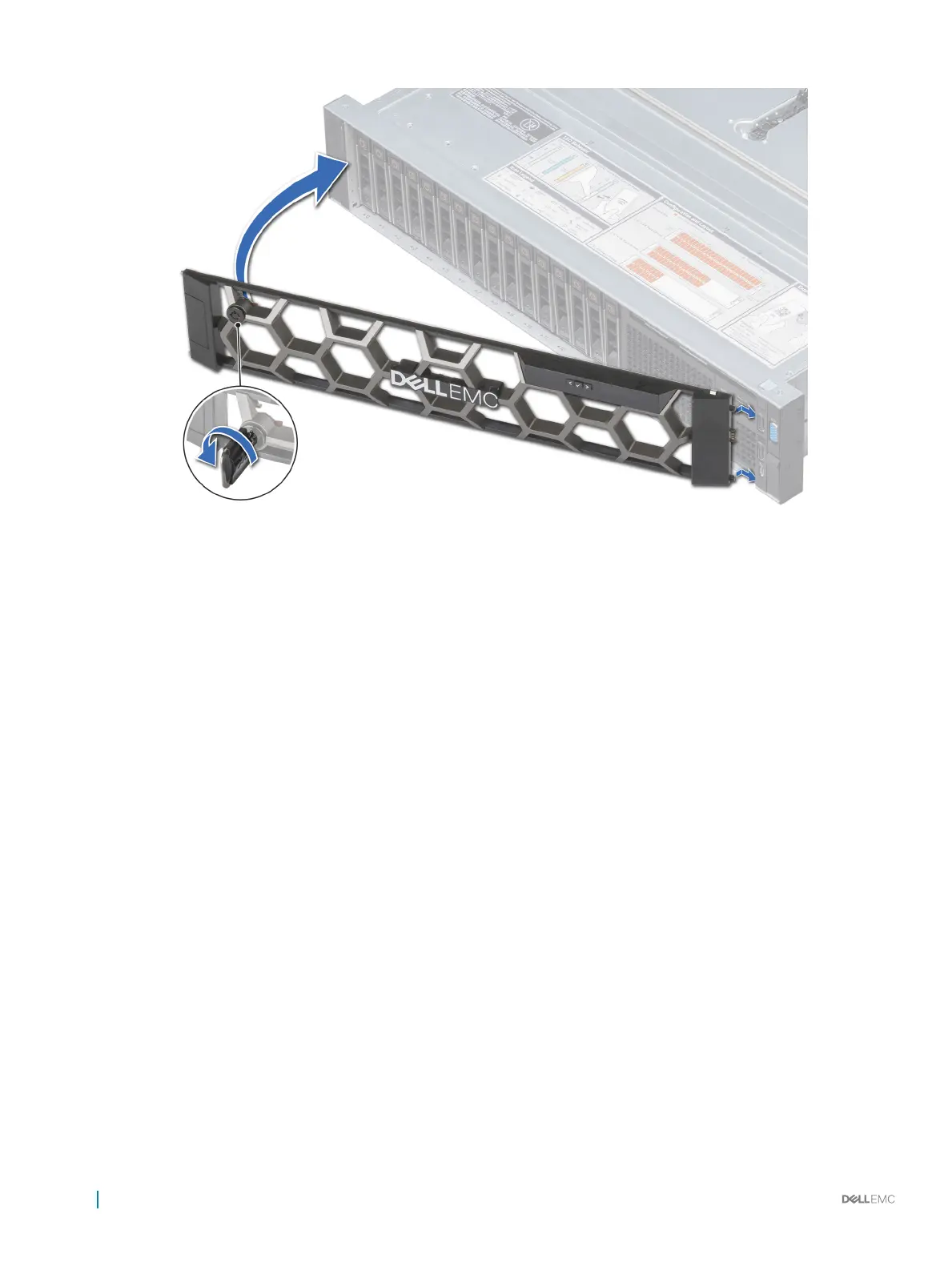

Figure 18. Installing the optional front bezel with the LCD panel
System cover
System cover provides security for the entire system and also helps in maintaining proper air ow inside the system.
Removing the system cover
Prerequisites
1 Follow the safety guidelines listed in Safety instructions.
2 Turn o the system, including any attached peripherals.
3 Disconnect the system from the electrical outlet and disconnect the peripherals.
Steps
1 Using a at or a Phillips head screwdriver, rotate the latch release lock counter clockwise to the unlocked position.
2 Lift the latch till the system cover slides back and the tabs on the system cover disengage from the guide slots on the system.
3 Hold the cover on both sides, and lift the cover away from the system.
68
Installing and removing system components

Dell PowerEdge R740xd Specifications

General

Processor cache	22 MB
Processor model	4216
Execute Disable Bit	Yes
Processor frequency	2.1 GHz
Processor manufacturer	Intel
Processor boost frequency	3.2 GHz
On-board graphics card	-
Memory slots	24
Memory ranking	2
Internal memory	16 GB
Buffered memory type	Registered (buffered)
Internal memory type	DDR4-SDRAM
Maximum internal memory	192 GB
HDD size	2.5 \
HDD speed	10000 RPM
HDD interface	Serial Attached SCSI (SAS)
Optical drive type	No
Total storage capacity	1800 GB
Maximum storage capacity	- TB
Number of HDDs installed	1
Supported RAID controllers	PERC H740P 8GB
LAN controller	Broadcom 5720, Broadcom 57412
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	10 Gigabit Ethernet, Gigabit Ethernet
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	4
Chassis type	Rack (2U)
Product color	Black
Compatible operating systems	- Canonical Ubuntu LTS - Citrix XenServer - Microsoft Windows Server with Hyper-V - Red Hat Enterprise Linux - SUSE Linux Enterprise Server - VMware ESXi
Power supply	750 W
Certification	CE, CCC, BIS
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12000 m
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Width	- mm
Height	86.8 mm
