Dell PowerEdge R740xd Service Manual

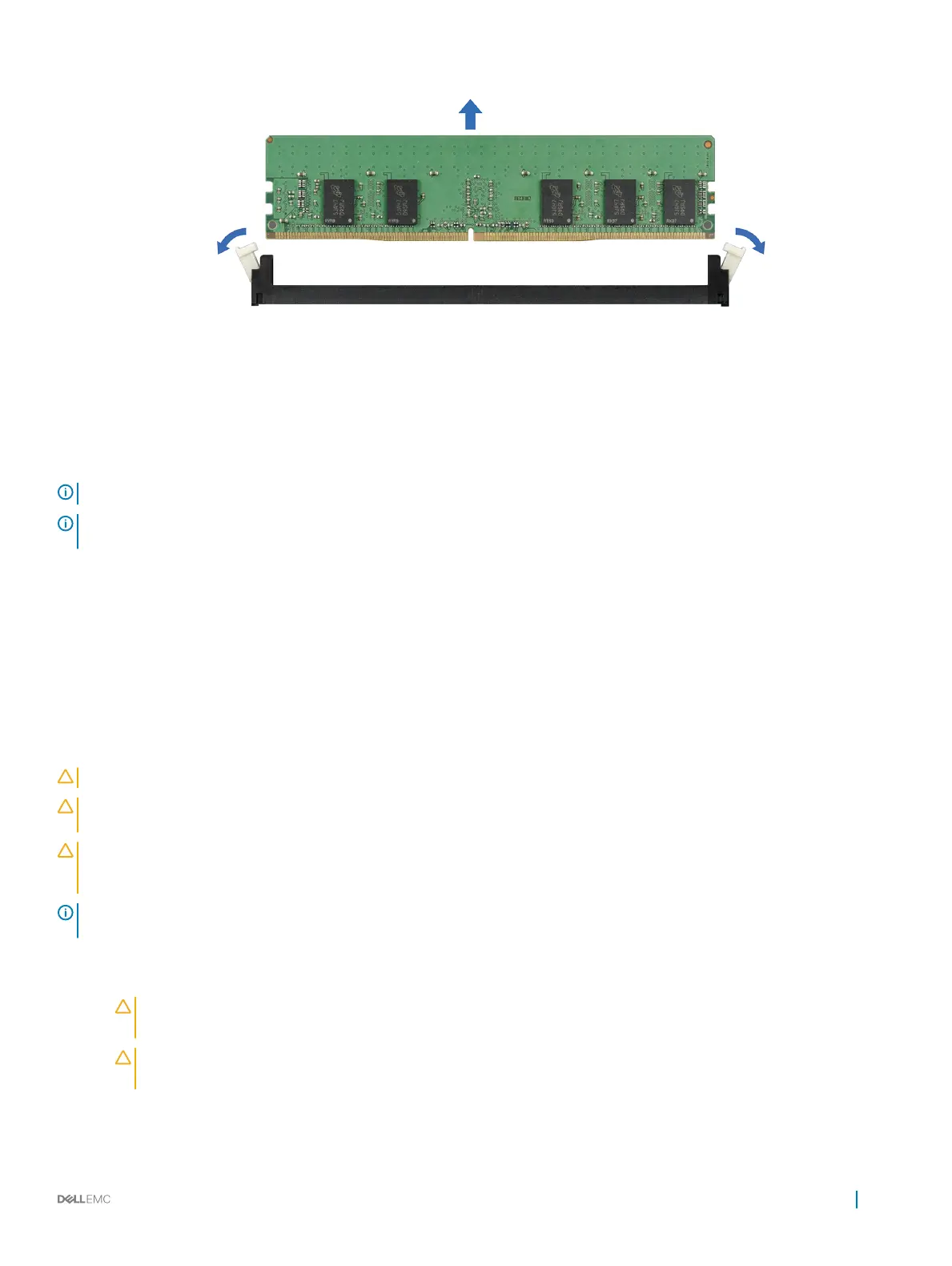

Figure 62. Removing a memory module
Next steps
1 Install the memory module.
2 For congurations with mid drive tray, if you are removing the memory module permanently, install a memory module blank. The
procedure to install a memory module blank is similar to that of the memory module.
NOTE: For single processor systems, install processor/DIMM blank on CPU2 socket.
NOTE: To ensure proper cooling, DIMM blank must be installed for systems with mid drive tray
conguration.
Related link
Removing the air shroud
Installing a memory module
Installing a memory module
The procedure for installing a memory module and NVDIMM-N is identical.
Prerequisites
Follow the safety guidelines listed in Safety instructions.
CAUTION
: Ensure that you install the NVDIMM-N battery if you are using NVDIMM-N.
CAUTION: To prevent data loss and potential damage to your system, ensure that your system, LEDs on system, LEDs on
NVDIMM-N and LEDs on NVDIMM-N battery are turned o before installing the NVDIMM-N battery.
CAUTION: To ensure proper system cooling in congurations with mid drive tray, memory module blanks must be installed in any
memory socket that is not occupied. Remove memory module blanks only if you intend to install memory modules in those
sockets.
NOTE: You must follow the thermal restriction while using DIMM blank. For information about thermal restriction, see the
Thermal restrictions section.
Steps
1 Locate the appropriate memory module socket.
CAUTION
: Handle each memory module only by the card edges, ensuring not to touch the middle of the memory
module or metallic contacts.
CAUTION: To prevent damage to the memory module or the memory module socket during installation, do not bend or
ex the memory module. You must insert both ends of the memory module simultaneously.
2 Open the ejectors on the memory module socket outward to allow the memory module to be inserted into the socket.
3 Align the edge connector of the memory module with the alignment key of the memory module socket, and insert the memory module
in the socket.
Installing and removing system components
115

Dell PowerEdge R740xd Specifications

General

Processor cache	22 MB
Processor model	4216
Execute Disable Bit	Yes
Processor frequency	2.1 GHz
Processor manufacturer	Intel
Processor boost frequency	3.2 GHz
On-board graphics card	-
Memory slots	24
Memory ranking	2
Internal memory	16 GB
Buffered memory type	Registered (buffered)
Internal memory type	DDR4-SDRAM
Maximum internal memory	192 GB
HDD size	2.5 \
HDD speed	10000 RPM
HDD interface	Serial Attached SCSI (SAS)
Optical drive type	No
Total storage capacity	1800 GB
Maximum storage capacity	- TB
Number of HDDs installed	1
Supported RAID controllers	PERC H740P 8GB
LAN controller	Broadcom 5720, Broadcom 57412
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	10 Gigabit Ethernet, Gigabit Ethernet
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	4
Chassis type	Rack (2U)
Product color	Black
Compatible operating systems	- Canonical Ubuntu LTS - Citrix XenServer - Microsoft Windows Server with Hyper-V - Red Hat Enterprise Linux - SUSE Linux Enterprise Server - VMware ESXi
Power supply	750 W
Certification	CE, CCC, BIS
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12000 m
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Width	- mm
Height	86.8 mm
