Dell PowerEdge T30 User Manual

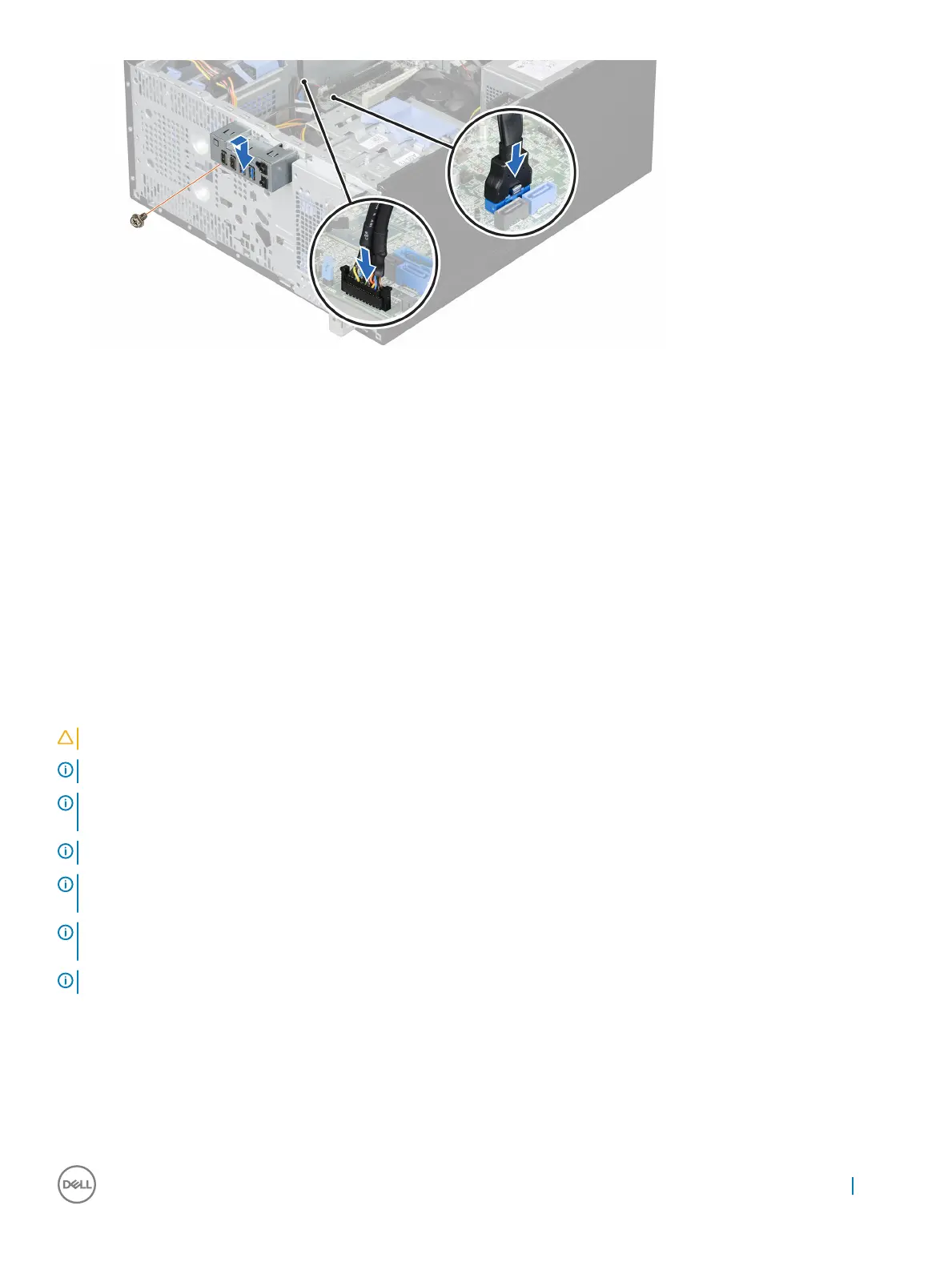

Figure 17. Installing the I/O panel
Next steps
1 Install the bezel.
2 Follow the procedure listed in the After working inside your system section.
Related links
Safety instructions
Before working inside your system
Removing the bezel
Installing the bezel
After working inside your system
Hard drives
Your system supports 2.5-inch and 3.5-inch hard drives. Choosing the right drive type depends on the usage pattern. Improper use of hard
drives will lead to significant risk and increase the drives failure rate.
CAUTION
: Do not turn off or reboot your system while the hard drive is being formatted. Doing so can cause a hard drive failure.
NOTE: Use only hard drives that have been tested and approved for use with your system.
NOTE: To install more than four drive devices (including optical drive and hard drives), you need an additional power extension
cable, controller card, and SATA cables (minimum 1.6 ft).
NOTE: The screws that secure the 2.5-inch hard drive to the hard drive cage are available on the front of the hard drive cage.
NOTE: Use the vertical type SATA cables to connect hard drives in the hard drive cage to avoid damaging the connector pins.
This is applicable for the 2.5-inch hard drives and optical drive.
NOTE: Use right angle connectors to connect to the hard drives in the hard drive bay. You may not be able to close the system
cover if incorrect connector cables are used.
NOTE: Do not mix enterprise class hard drives with entry-level hard drives.
Your system supports four 3.5-inch entry-level hard drives and enterprise class hard drives. Entry-level hard drives are designed for 8x5
operating environment and enterprise class hard drives are designed for 24x7 operating environment. Two hard drives are located in the
removable hard drive cage and two hard drives are located in the fixed hard drive bay.
Choosing the right hard drive type depends on the usage pattern. Improper use of entry-level hard drives (including workloads exceeding
550 TB/year) leads to significant risk and increases the failure rate of the drives. Due to industry advances, in some cases, the larger
capacity drives have been changed to a larger sector size. The larger sector size can have impacts on operating systems and applications.
Installing and removing system components
51

Dell PowerEdge T30 Specifications

General

Bus type	DMI3
Stepping	R0
Scalability	1S
Processor code	SR2DC
Processor cache	3 MB
Processor cores	2
Processor model	G4400
System bus rate	8 GT/s
Processor family	Intel Pentium G
Processor series	Intel Pentium G4400 series for Desktop
Processor socket	LGA 1151 (Socket H4)
Processor codename	Skylake
Execute Disable Bit	Yes
Motherboard chipset	Intel® C236
Processor frequency	3.3 GHz
Processor cache type	Smart Cache
Processor lithography	14 nm
Processor manufacturer	Intel
Processor package size	37.5 x 37.5 mm
Processor front side bus	- MHz
Processor operating modes	32-bit, 64-bit
PCI Express configurations	1x16, 1x8+2x4, 2x8
Supported instruction sets	SSE4.1, SSE4.2
Thermal Design Power (TDP)	47, 54 W
Number of processors installed	1
Thermal solution specification	PCG 2015C
Maximum number of PCI Express lanes	16
Memory types supported by processor	DDR3L-SDRAM, DDR4-SDRAM
Memory voltage supported by processor	1.35 V
Memory channels supported by processor	Dual
Memory clock speeds supported by processor	1866, 1333, 2133, 1600 MHz
Memory bandwidth supported by processor (max)	34.1 GB/s
Maximum internal memory supported by processor	64 GB
HDD size	- \
HDD interface	-
Optical drive type	No
Total storage capacity	1000 GB
Maximum storage capacity	- TB
Memory slots	4
Internal memory	4 GB
Memory clock speed	2133 MHz
Internal memory type	DDR4-SDRAM
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
VGA (D-Sub) ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
PCI Express x4 slots	7
PCI Express slots version	3.0
Compatible operating systems	- Microsoft Windows Server 2012; 2012 R2; 2016 - Red Hat Enterprise Linux - Ubuntu Server 14.04/16.04
Chassis type	Mini Tower
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 35000 m
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 80 %
On-board graphics card ID	0x1902
On-board graphics card model	Intel® HD Graphics 510
On-board graphics card family	Intel® HD Graphics
Maximum on-board graphics card memory	1.7 GB
On-board graphics card OpenGL version	4.4
On-board graphics card base frequency	350 MHz
On-board graphics card DirectX version	12.0
On-board graphics card dynamic frequency (max)	1000 MHz
Number of displays supported (on-board graphics)	3
Processor ARK ID	88179
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	0.00

Weight and Dimensions

Depth	454 mm
Width	175 mm
Height	360 mm
Weight	11700 g
