3 If the value is incorrect, one or more of the memory modules may not be installed properly. Repeat step 1 through step 3 of this
procedure, checking to ensure that the memory modules are firmly seated in their sockets.
4 Run the appropriate diagnostic test.
Related links
Before working inside your system
After working inside your system
System fan
Your system supports one system fan. The system fan is an essential part of a server's cooling system. It ensures that the key components
of the server such as the processors, hard drives, and memory get adequate air circulation to keep them cool. A failure in the server's
cooling system can result in the server overheating and may lead to damage.
Removing the system fan
Prerequisites
CAUTION: Many repairs may only be done by a certified service technician. You should only perform troubleshooting and simple
repairs as authorized in your product documentation, or as directed by the online or telephone service and support team.
Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that are shipped with your product.
CAUTION: Never operate your system with the system fan removed. System can overheat and result in shutdown of the system
and loss of data.
CAUTION: Do not operate the system with the cover removed for a duration exceeding 5 minutes.
1 Follow the safety guidelines listed in the Safety instructions section.
2 Follow the procedure listed in the Before working inside your system section.
3 Disconnect the system fan power cable from the system board.
Steps
1 Stretch the grommets that secure the fan to the chassis to ease the removal of the fan.
CAUTION
: Do not remove or install the system fan by holding the fan blades.
2 Hold the system fan by the side and push it out of the grommet.
3 Repeat steps 1 and 2 to release all four sides of the system fan.

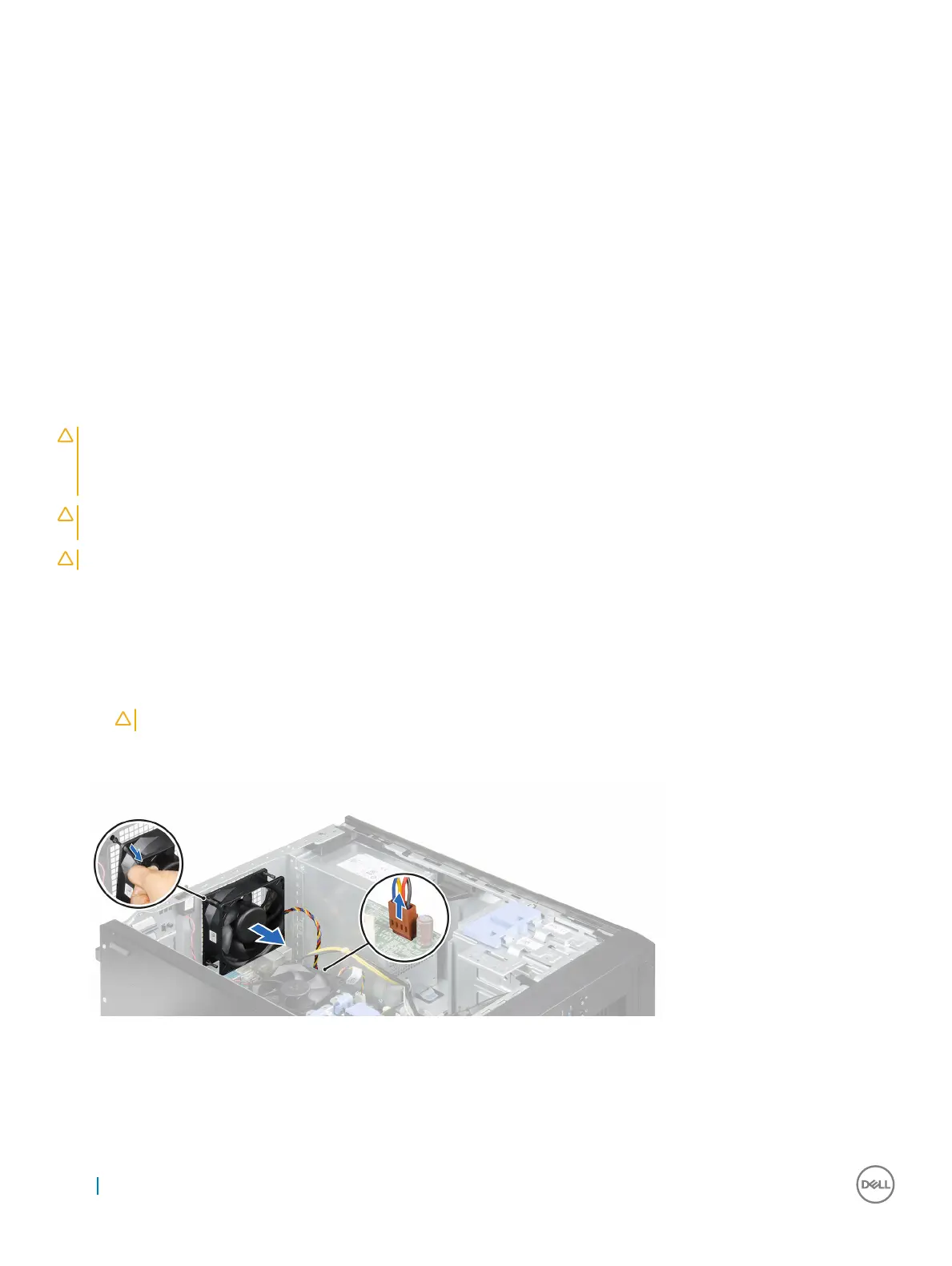

Figure 37. Removing the system fan
Next steps
1 Install the system fan.
74
Installing and removing system components

Dell PowerEdge T30 Specifications

General

Bus type	DMI3
Stepping	R0
Scalability	1S
Processor code	SR2DC
Processor cache	3 MB
Processor cores	2
Processor model	G4400
System bus rate	8 GT/s
Processor family	Intel Pentium G
Processor series	Intel Pentium G4400 series for Desktop
Processor socket	LGA 1151 (Socket H4)
Processor codename	Skylake
Execute Disable Bit	Yes
Motherboard chipset	Intel® C236
Processor frequency	3.3 GHz
Processor cache type	Smart Cache
Processor lithography	14 nm
Processor manufacturer	Intel
Processor package size	37.5 x 37.5 mm
Processor front side bus	- MHz
Processor operating modes	32-bit, 64-bit
PCI Express configurations	1x16, 1x8+2x4, 2x8
Supported instruction sets	SSE4.1, SSE4.2
Thermal Design Power (TDP)	47, 54 W
Number of processors installed	1
Thermal solution specification	PCG 2015C
Maximum number of PCI Express lanes	16
Memory types supported by processor	DDR3L-SDRAM, DDR4-SDRAM
Memory voltage supported by processor	1.35 V
Memory channels supported by processor	Dual
Memory clock speeds supported by processor	1866, 1333, 2133, 1600 MHz
Memory bandwidth supported by processor (max)	34.1 GB/s
Maximum internal memory supported by processor	64 GB
HDD size	- \
HDD interface	-
Optical drive type	No
Total storage capacity	1000 GB
Maximum storage capacity	- TB
Memory slots	4
Internal memory	4 GB
Memory clock speed	2133 MHz
Internal memory type	DDR4-SDRAM
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
VGA (D-Sub) ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
PCI Express x4 slots	7
PCI Express slots version	3.0
Compatible operating systems	- Microsoft Windows Server 2012; 2012 R2; 2016 - Red Hat Enterprise Linux - Ubuntu Server 14.04/16.04
Chassis type	Mini Tower
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 35000 m
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 80 %
On-board graphics card ID	0x1902
On-board graphics card model	Intel® HD Graphics 510
On-board graphics card family	Intel® HD Graphics
Maximum on-board graphics card memory	1.7 GB
On-board graphics card OpenGL version	4.4
On-board graphics card base frequency	350 MHz
On-board graphics card DirectX version	12.0
On-board graphics card dynamic frequency (max)	1000 MHz
Number of displays supported (on-board graphics)	3
Processor ARK ID	88179
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	0.00

Weight and Dimensions

Depth	454 mm
Width	175 mm
Height	360 mm
Weight	11700 g
