Delta AH Series Hardware Manual

AH Motion Controller – Hardware Manual
2-10
_
2
Component Model Name Description
Dummy
module
AHASP01-5A Dummy module used for an empty I/O slot
2.2 Software Connection

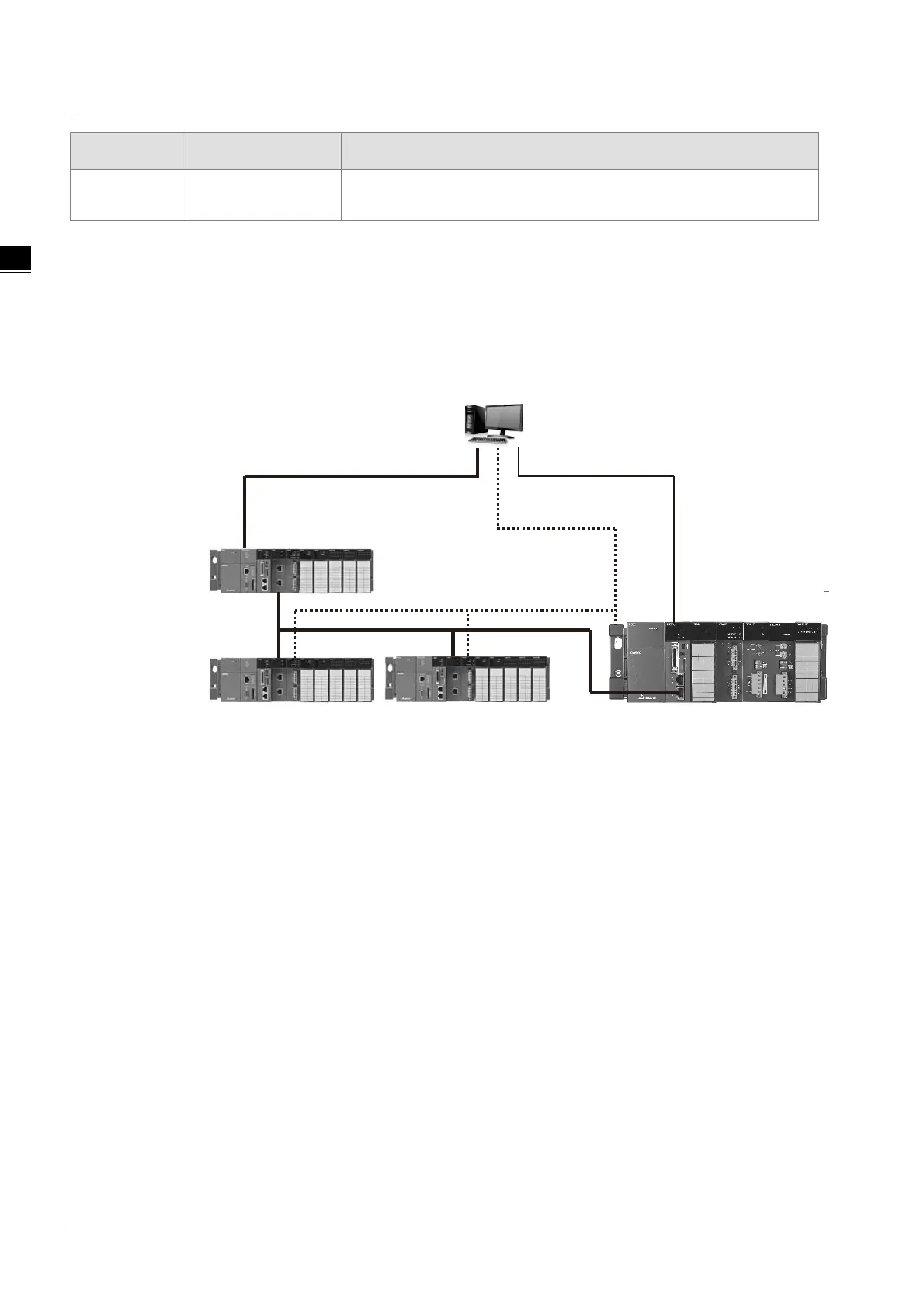

Through the network interfaces on the AH motion CPU and the motion backplane, you can connect the CPU to the host
computer with RS-232(USB), RS-485, and Ethernet networks. In this configuration, you can also connect ISPSoft with
AH500 series PLCs. Refer to
ISPSoft User Manual
for information on the procedures of the connections between the AH
Motion system and the ISPSoft.
P
L
C
S
o
f
tware
ISPSoft
AH Motion CPU
EtherNet/IP Network
RS-485
RS-232
AH500 AH Motion/
series PLCs
E
therNet/IP Scanner
P
