3-14
_3

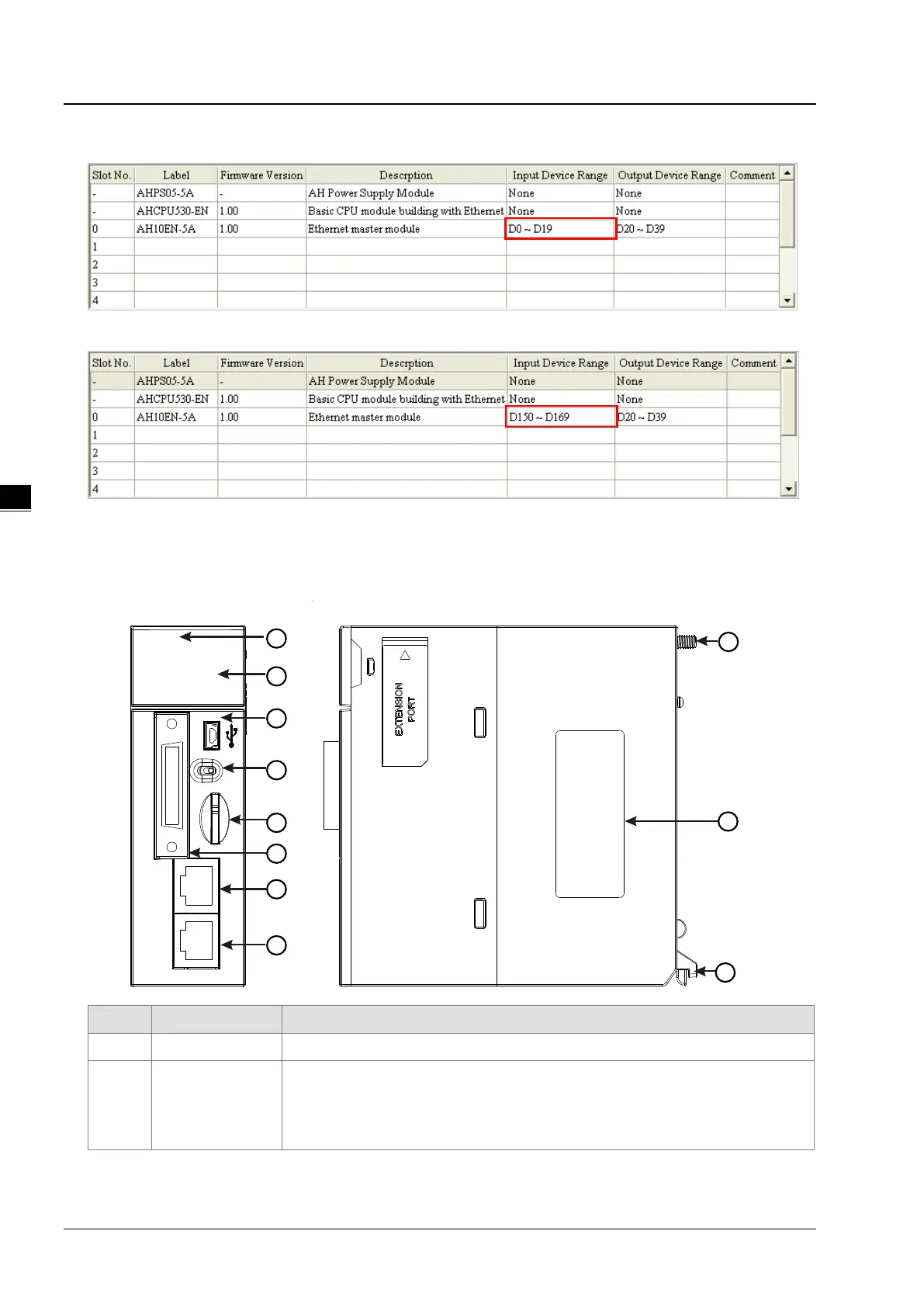

 The default input device range: D0~D19
 The user-defined input device range: D150~D169
3.2.5 Profiles
 AHxxEMC-5A
RUN
ETH
ERRO R
RUN
Etherne t E the rCAT
CN 1
R UN
S TO P
Mic ro SD
Et he rC AT
10EMC
ETH
ERRO R
1
4
5
2
3
6
8
7
9
10....
11
Number
Name
Description
1
Model name
Model name of the CPU module
2
RUN LED
indicator
Operating status of the CPU module
ON: The user program is being executed.
OFF: The execution of the user program stops.
Blink: The user program is in a debugging mode.
