Delta AH Series Hardware Manual

Chapter 4 Installation and Wiring
4-27
4
_
Terminal Description
Response
characteristic
Rated input
Current Voltage
X1.2,
X1.3
X1.0 and X1.1 are for counter 4.
X1.2 and X1.3 are for counter 5.
 High-speed capture: The terminals can function
as trigger signals for high-speed captures.
 Interrupt inputs:
X0.12, X0.13, X0.14 and X0.15 can function as
interrupt inputs.
Y0.8,
Y0.9,
Y0.10,
Y0.11
1. Pulse output temrinals (open collector).
2. The function of the terminals:
 High-speed comparison: The terminals can
function as high-speed comparison outputs.
200 kHz 15 mA 24 V
*1. If the frequency of input signals received by an input terminal must be 200 kHz, the input terminal must be connected
to a 1 kΩ (2 W) resistor in parallel.

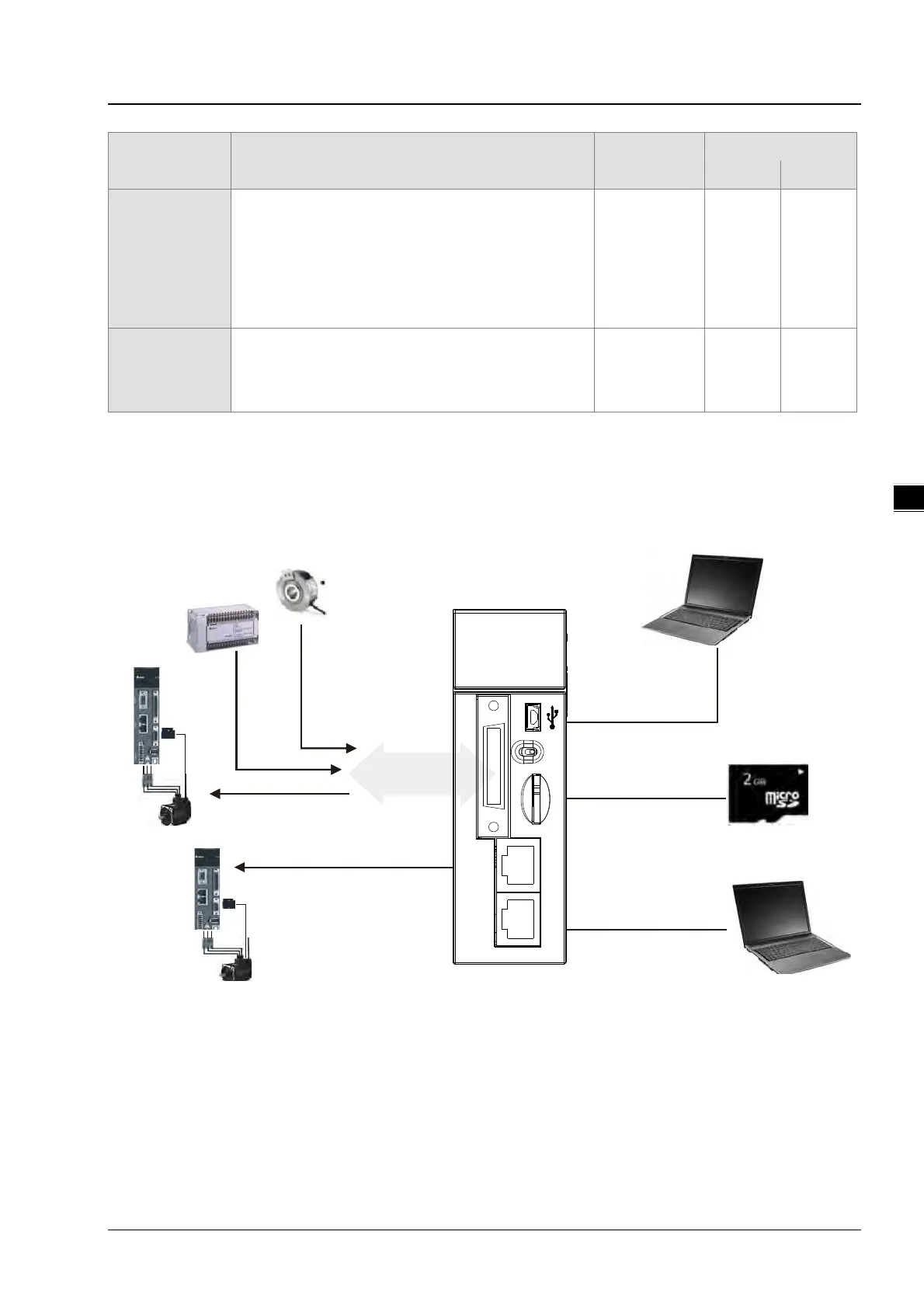

4.6.2 Wiring AHxxEMC-5A
 External devices for AHxxEMC-5A
External
terminal
module
RJ45 (EtherCAT)
USB
RJ45 (Ethernet)
MicroSD
SD
RUN
ETH
ERROR
RUN
E ther net Et h erCA T
CN1
RUNSTOP
Micro S D
Ethe rCAT
10EMC
ETH
ERROR
MDR36
conn ector
