Delta NT Series User Manual

53
Ultron NT Series

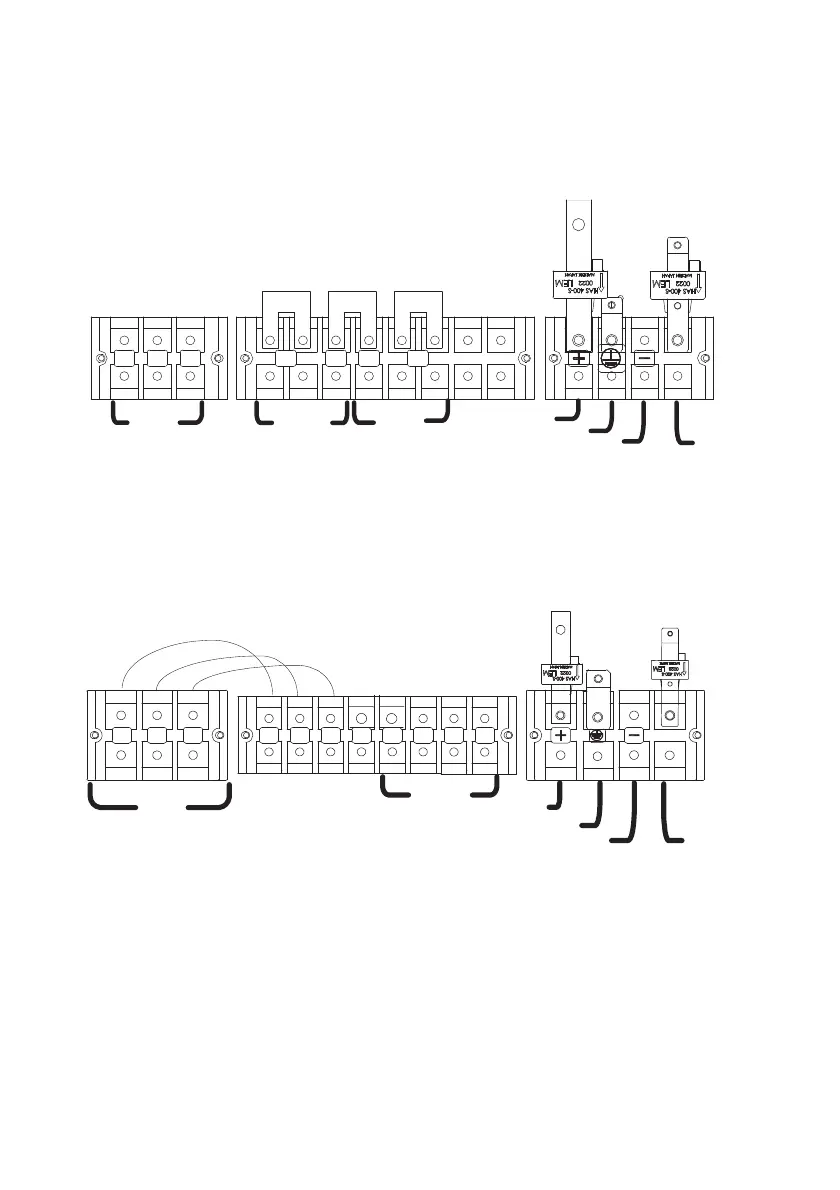

Dual input: When there are two input (mains and reserve) sources, remove the
cable (wire number 1B) from the input terminal. Please see the wiring diagram as
follows.
R
S
TRNNR
Input Output
Reserve
Battery+
Battery -
Ground
Battery
Cabinet
Ground
4.9.2 10~60kVA Output 220/ 380Vac Terminal Wiring
Diagram
Single input: When there is only one input source, the wiring diagram is as follows.
RST NRST N R ST
Input
Output
1B 2B 3B
Battery
Cabinet
Ground
Battery+
Battery -
Ground

Delta NT Series Specifications

General

Brand	Delta
Model	NT Series
Category	UPS
Language	English
