Chapter 4 Installation & Wiring
58

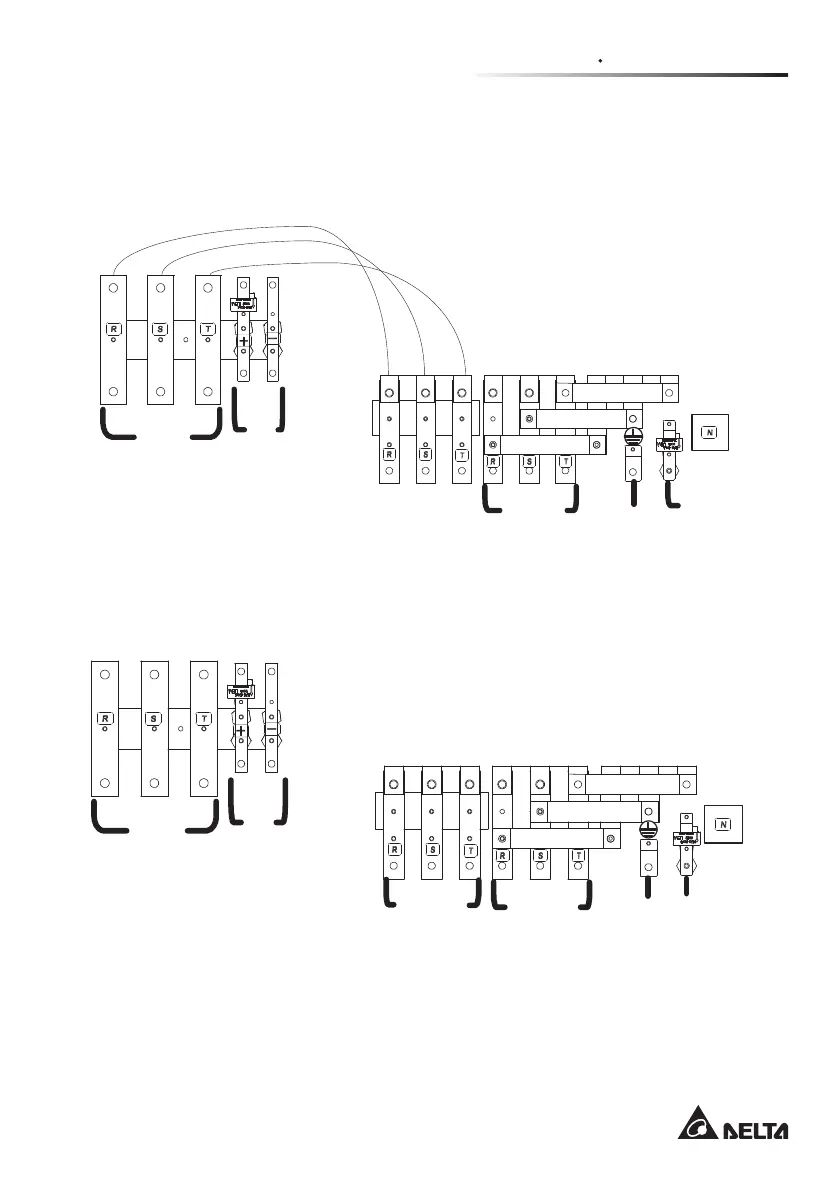

4.9.7 160/ 200kVA Output 220/ 380Vac Terminal Wiring
Diagram
Single input: When there is only one input source, the wiring diagram is as follows.
IJŃ ijŃ ĴŃ
Input
Battery
Output
Battery
Cabinet
Ground
Ground
Dual input: When there are two input (mains and reserve) sources, remove the
cables (wire number 1B, 2B and 3B) from the input terminals. The wiring diagram is
as follows.
.
Input
Battery
Output
Reserve
Battery
Cabinet
Ground
Ground
To Next Page
