Ultron NT Series

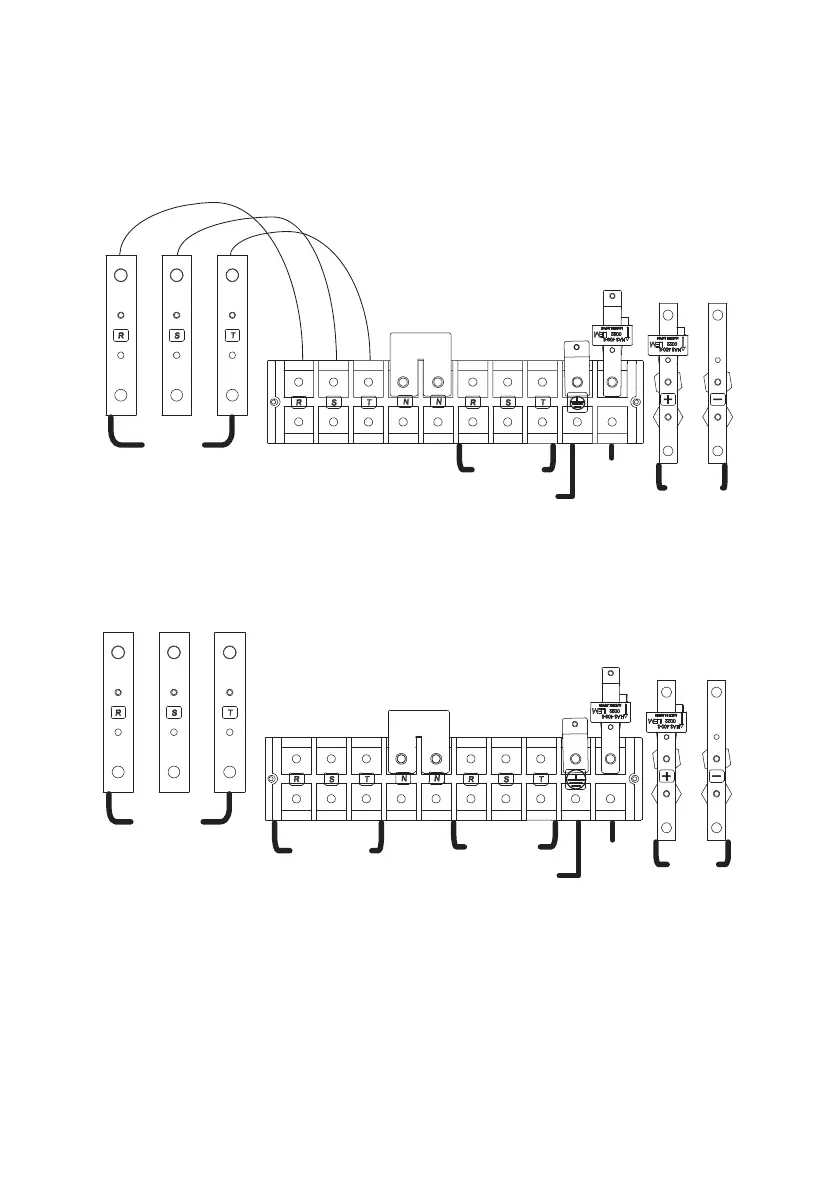

4.9.6 120kVA Output 220/ 380Vac Terminal Wiring Diagram
Single input: When there is only one input source, the wiring diagram is as follows.
IJŃ ijŃ ĴŃ
Input
Battery
Output
Battery
Cabinet
Ground
Ground
Dual input: When there are two input (mains and reserve) sources, remove the
cables (wire number 1B, 2B and 3B) from the input terminals. The wiring diagram is
as follows.
Input
Battery
Output
Battery
Cabinet
Ground
Reserve
Ground
