Delta RPI M6A Operation And Installation Manual

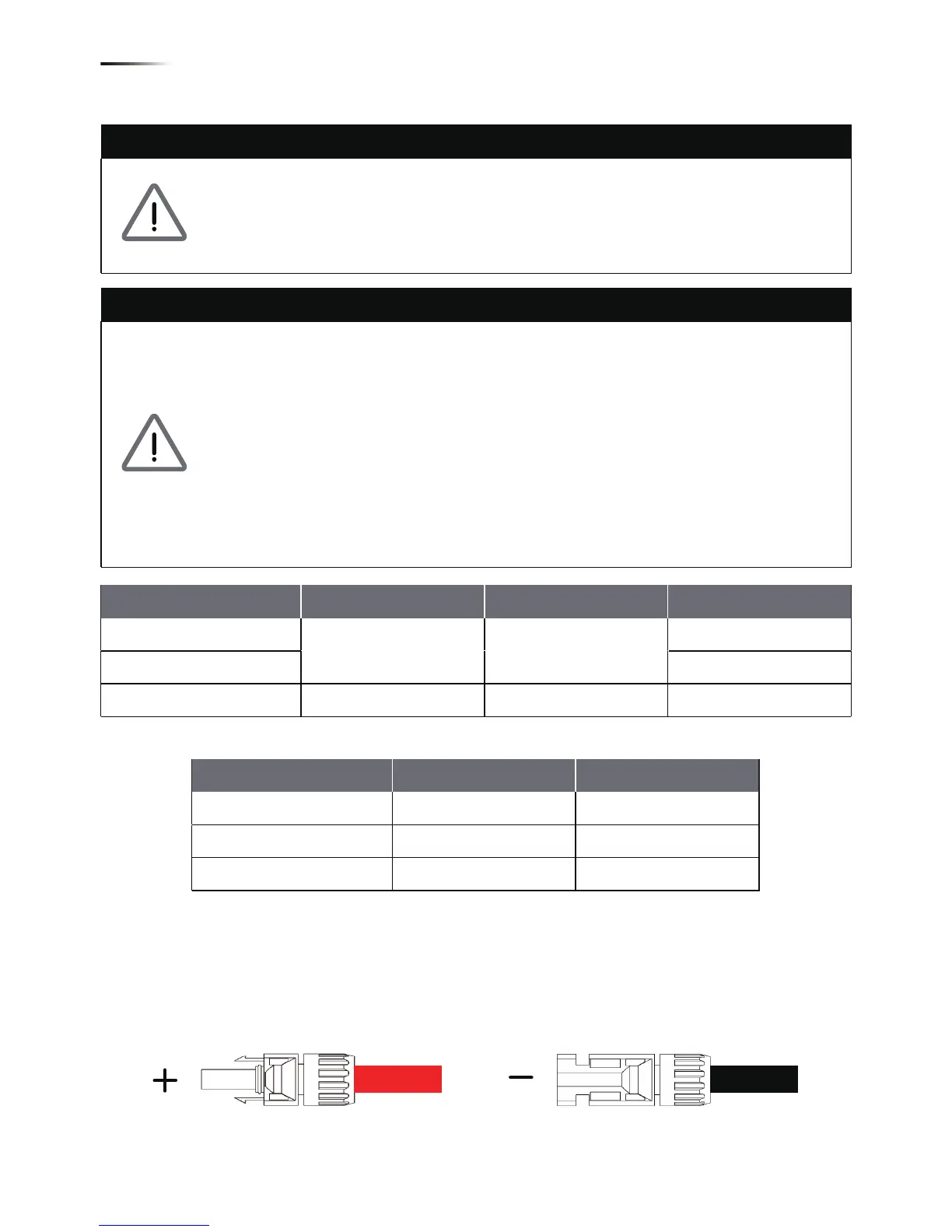

4.3. DC Connection (from PV Array)
WARNING！
• When undertaking DC wiring, please ensure the correct polarities are
connected.
• When undertaking DC wiring please ensures that the power switch on
the PV array is OFF.
CAUTION！
• The connection number of PV Array, open circuit voltage and power of
all strings in DC1 must be coherent.
• The maximum open circuit voltage of PV Array cannot exceed 1000V.
• Any device installed between PV Array and inverter must meet the
following specifications:
Rated voltage > open-circuit voltage of PV Array.
Rated current > short-circuit current of PV Array.
• The input power to the inverter should not higher than the rated power
shown in table 4-3.
Type of limit RPI M6A RPI M8A RPI M10A
DC1
4.25 kW
@ Vdc=425V-800V
5.65 kW
@ Vdc=565V-800V
7 kW
DC2
Maximum input power 6.6 kW 8.8 kW
5.4 kW
11 kW
Model Current Rating Wire size
M6A
M8A
M10A DC 15A
DC 10A
DC 10A
3 - 5mm
2
/ 12 AWG
2 - 3mm
2
/ 14 AWG
2 - 3mm
2
/ 14 AWG
Table 4-3 Maximum rating of input power
Table 4-4 Cable size
Figure 4-5 DC Plug Wiring illustration
DC wiring polarities are divided into positive and negative, which is shown
in Figure 4-5. The connection shall be coherent with the indication marked
on inverter.
PV-KBT4/6 Ⅱ
PV-KST4/6 Ⅱ
18
Wiring
