5.3.6.4. Grid Settings
Grid settings page includes the voltage and frequency protection points.
These protection points are linked to electricity regulations. If there is no
any special requirement, please do not change any grid settings.
Inverter ID: 002
Insulation
Country
Grid Settings
►
Voltage Protection
Freq. Protection
Reconnect T
P Ramp Up
►
High Off
High On
High Off T
Low Off
►
276.0V
259.0V
0.3s
104.0V
Low On
Low Off T
Hi Off Slow
Hi On Slow
►
219.0V
0.3s
276.0V
259.0V
Hi Off Sl T
Lo Off Slow
Lo On Slow
Lo Off Sl T
►
600.0s
184.0V
219.0V
1.0s
Voltage Protection
Freq. Protection
Reconnect T
P Ramp Up
►
High Off
High On
High Off T
Low Off
►
51.50Hz
50.05Hz
0.1s
47.50Hz
Low On
Low Off T
Hi Off Slow
Hi On Slow
►
47.55Hz
0.1s
65.00Hz
64.95Hz
Hi Off Slow T
Lo Off Slow
Lo On Slow
Lo Off Slow T
►
5.0s
45.00Hz
45.55Hz
5.0s
600s
6000%/m
600s
6000%/m
EXIT
EXIT
ENT
EXIT
EXIT
EXIT
EXIT
EXIT
ENT
EXIT
ENT

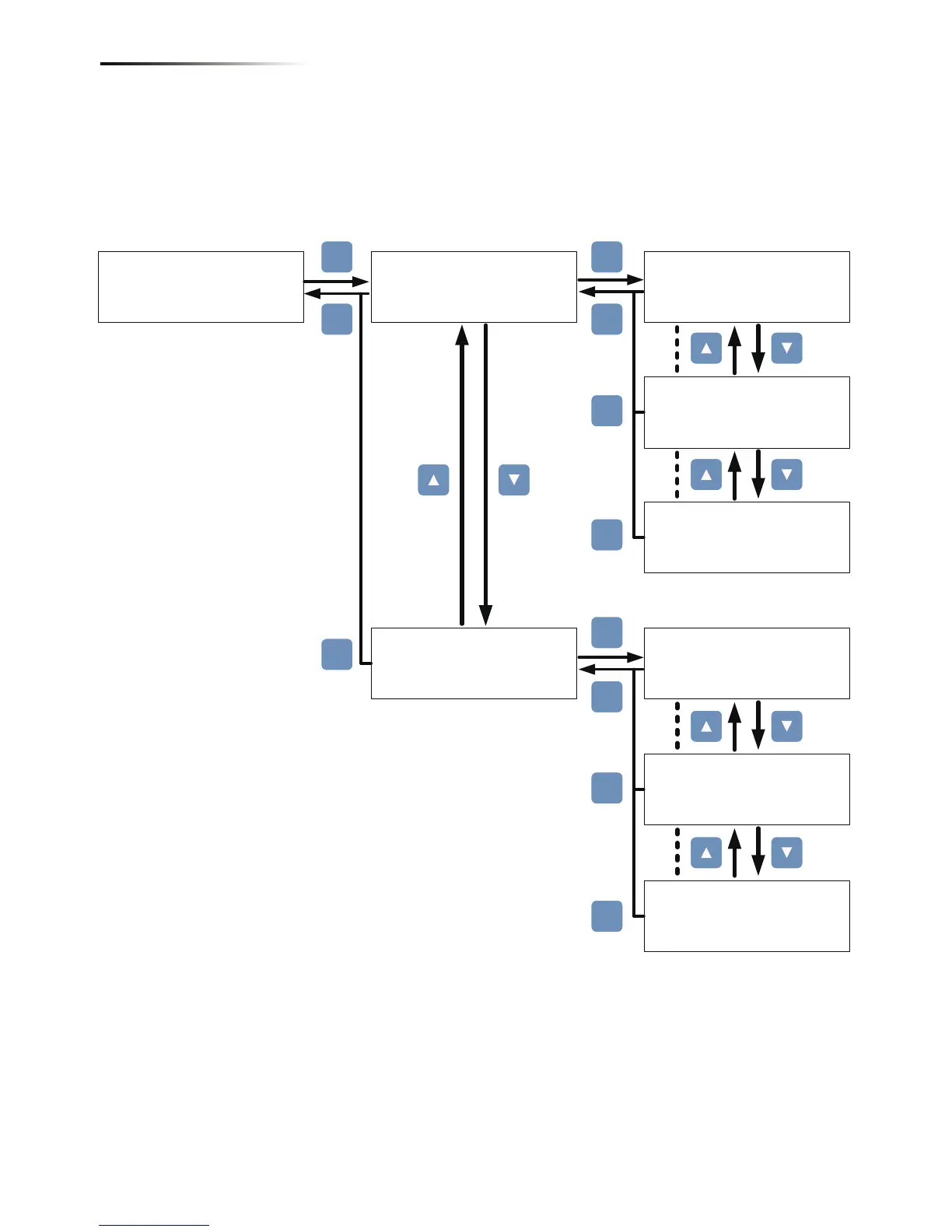

Figure 5-14 Grid Settings page
32
