Delta VFD1A5MS43ANSAA User Manual

Chapter 7 Optional AccessoriesMS300
94

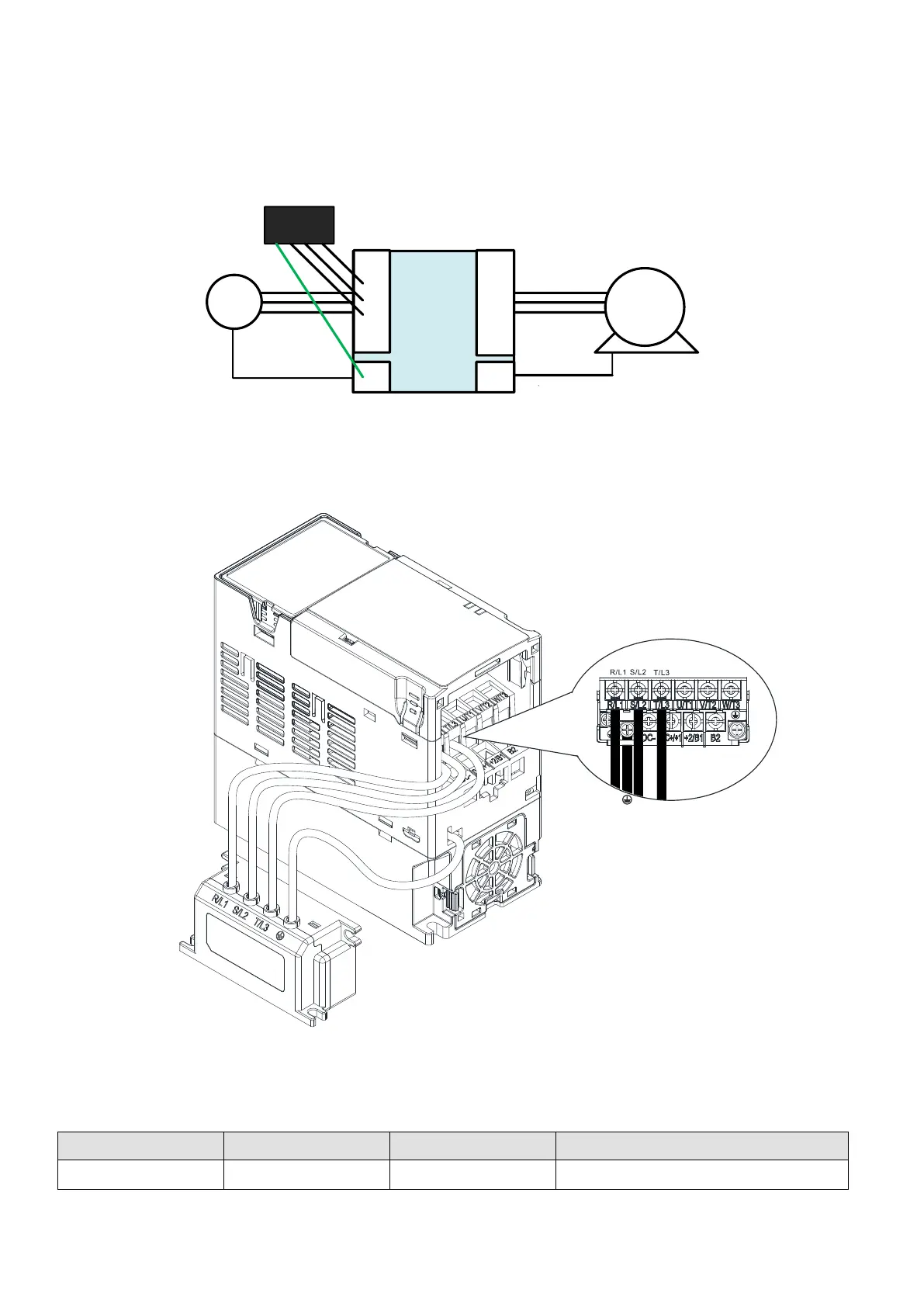

7-8 Capacitive Filter
The capacitive filter (CXY101-43A) is a simple filter that supports basic filtering and noise interference
reduction and applicable for models below 460V.
Installation diagram:
VFD
R
S
T
U
V
W
PE
Motor
PE
Grid
Capacitor
Filter
Figure 7-46
Wiring diagram for the capacitive filter and the drive:
Figure 7-47
Specifications:
Model
Applicable Voltage
Temperature Range
Capacitance
CXY101-43A
110–480 V
AC
-40–85°C
Cx: 1uF ± 20% Cy: 0.1uF ± 20%
NOTE: CXY101-43A is not applicable for 575V models.
Table 7-53
