Delta VFD1A5MS43ANSAA User Manual

Chapter 2 DimensionsMS300
10
2-1 Frame A
A1: VFD1A6MS11ANSAA; VFD1A6MS11ENSAA; VFD1A6MS21ANSAA; VFD1A6MS21ENSAA;
VFD1A6MS23ANSAA; VFD1A6MS23ENSAA
A2: VFD2A8MS23ANSAA; VFD2A8MS23ENSAA
A3: VFD2A5MS11ANSAA; VFD2A5MS11ENSAA; VFD2A8MS21ANSAA; VFD2A8MS21ENSAA
A4: VFD1A5MS43ANSAA; VFD1A5MS43ENSAA
A5: VFD4A8MS23ANSAA; VFD4A8MS23ENSAA; VFD2A7MS43ANSAA; VFD2A7MS43ENSAA;
VFD1A7MS53ANSAA

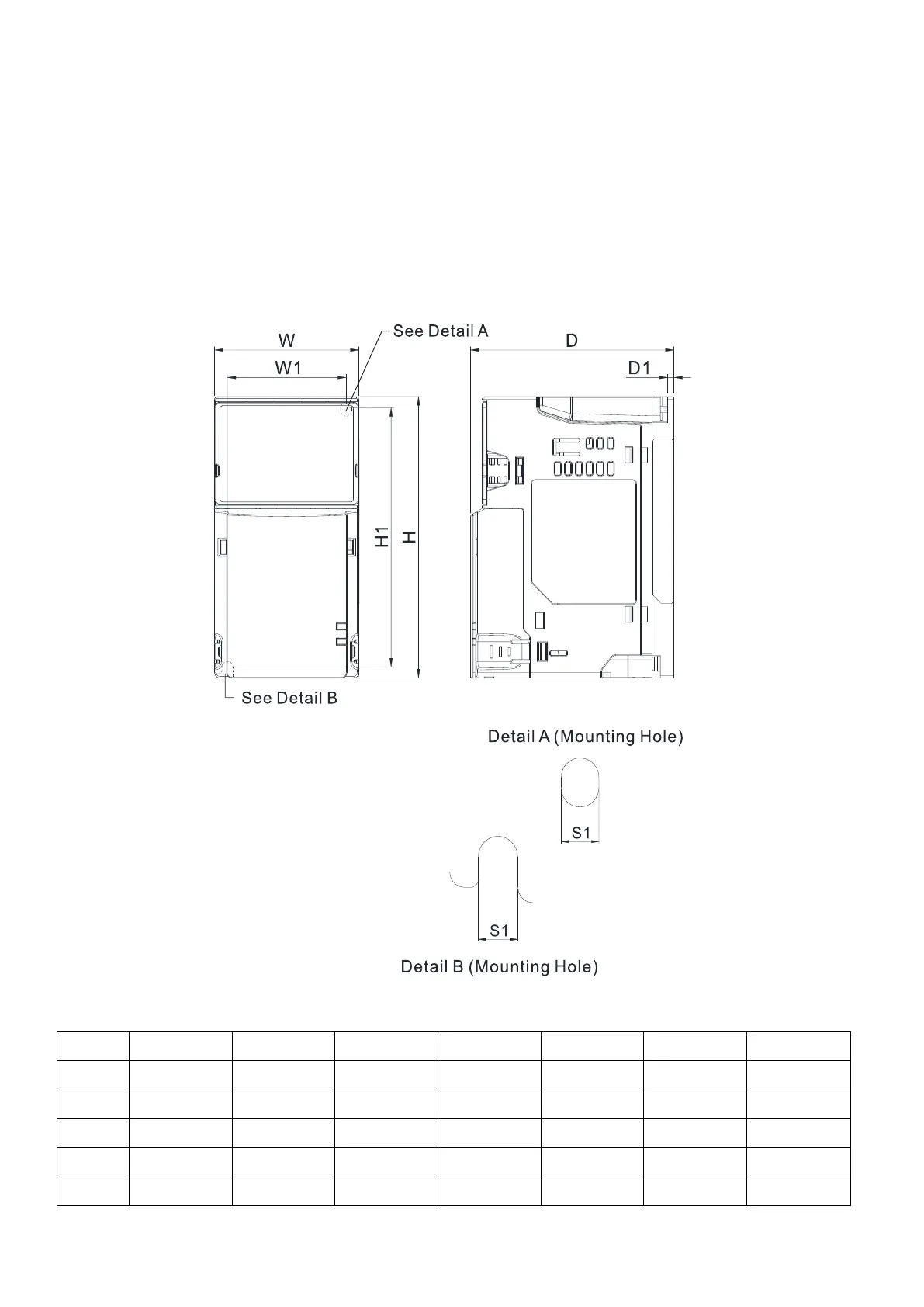

Figure 2-1
Unit: mm (inch)
Frame
W
H
D
W1
H1
D1
S1
A1
68.0 (2.68)
128.0 (5.04)
96.0 (3.78)
56.0 (2.20)
118.0 (4.65)
3.0 (0.12)
5.2 (0.20)
A2
68.0 (2.68)
128.0 (5.04)
110.0 (4.33)
56.0 (2.20)
118.0 (4.65)
3.0 (0.12)
5.2 (0.20)
A3
68.0 (2.68)
128.0 (5.04)
125.0 (4.92)
56.0 (2.20)
118.0 (4.65)
3.0 (0.12)
5.2 (0.20)
A4
68.0 (2.68)
128.0 (5.04)
129.0 (5.08)
56.0 (2.20)
118.0 (4.65)
3.0 (0.12)
5.2 (0.20)
A5
68.0 (2.68)
128.0 (5.04)
143.0 (5.63)
56.0 (2.20)
118.0 (4.65)
3.0 (0.12)
5.2 (0.20)
Table 2-1
