Chapter 8 Option CardsMS300
156

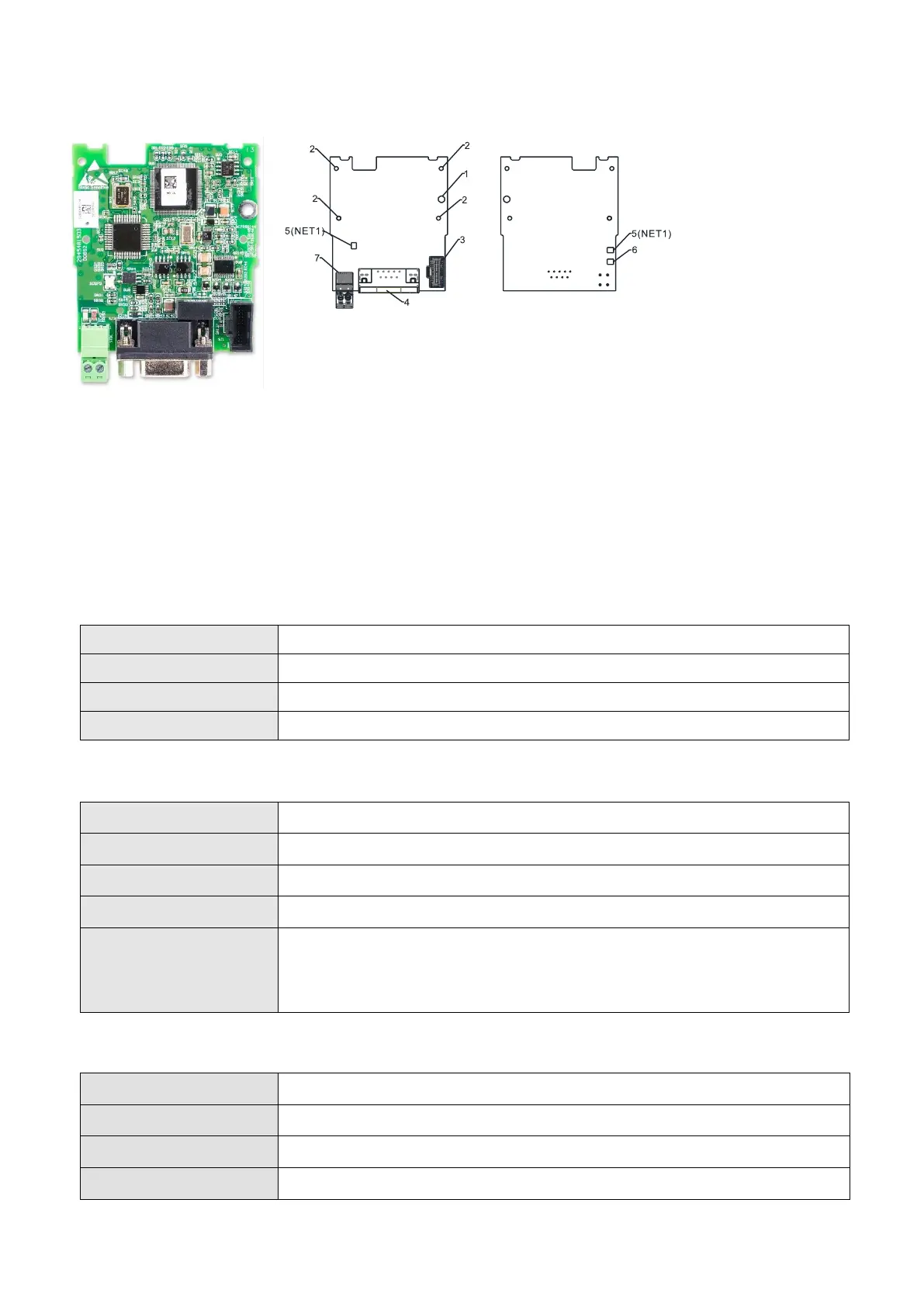

8-2 CMM-PD02 – Communication card, Profibus DP
8-2-1 Product Profile
Figure 8-24
Figure 8-25
Wire gauge: 0.25–0.5 mm
2
/ (24–20 AWG)
Stripping length: 7–8 mm
Screw torque: 2 kg-cm / (1.7 Ib-in.) / (0.2 Nm)
1. Screw fixing
hole
2. Positioning hole
3. AC motor drive
connection port
4. Communication
port
5. Indicator
NET1
6. POWER
indicator
7. Ground terminal
block
8-2-2 Features
1. Supports PZD control data exchange.
2. Supports PKW access AC motor drive parameters.
3. Supports user diagnosis function.
4. Auto-detects baud rates; supports a maximum of 12 Mbps.
8-2-3 Specifications
PROFIBUS DP Connector
Interface
DB9 connector
Transmission Method
High-speed RS-485
Transmission Cable
Shielded twisted-pair cable
Electrical Isolation
500 V
DC
Table 8-5
Communication
Message Type
Cyclic data exchange
Module Name
CMM-PD02
GSD Document
DELA08DB.GSD
Product ID
08DB (HEX)
Serial Transmission Speed
Supported (Auto-
Detection)
9.6 Kbps; 19.2 Kbps; 93.75 Kbps; 187.5 Kbps; 500 Kbps; 1.5 Mbps; 3 Mbps;
6 Mbps; 12 Mbps (bits per second)
Table 8-6
Electrical Specification
Power Supply Voltage
15 V
DC
(supplied by the AC motor drive)
Insulation Voltage
500 V
DC
Power Consumption
1 W
Weight
28 g
Table 8-7
