8-4 CMM-EIP02 – Communication Extension Card, (Single-port) EtherNet/IP, Modbus TCP
8-4-1 Product Profile

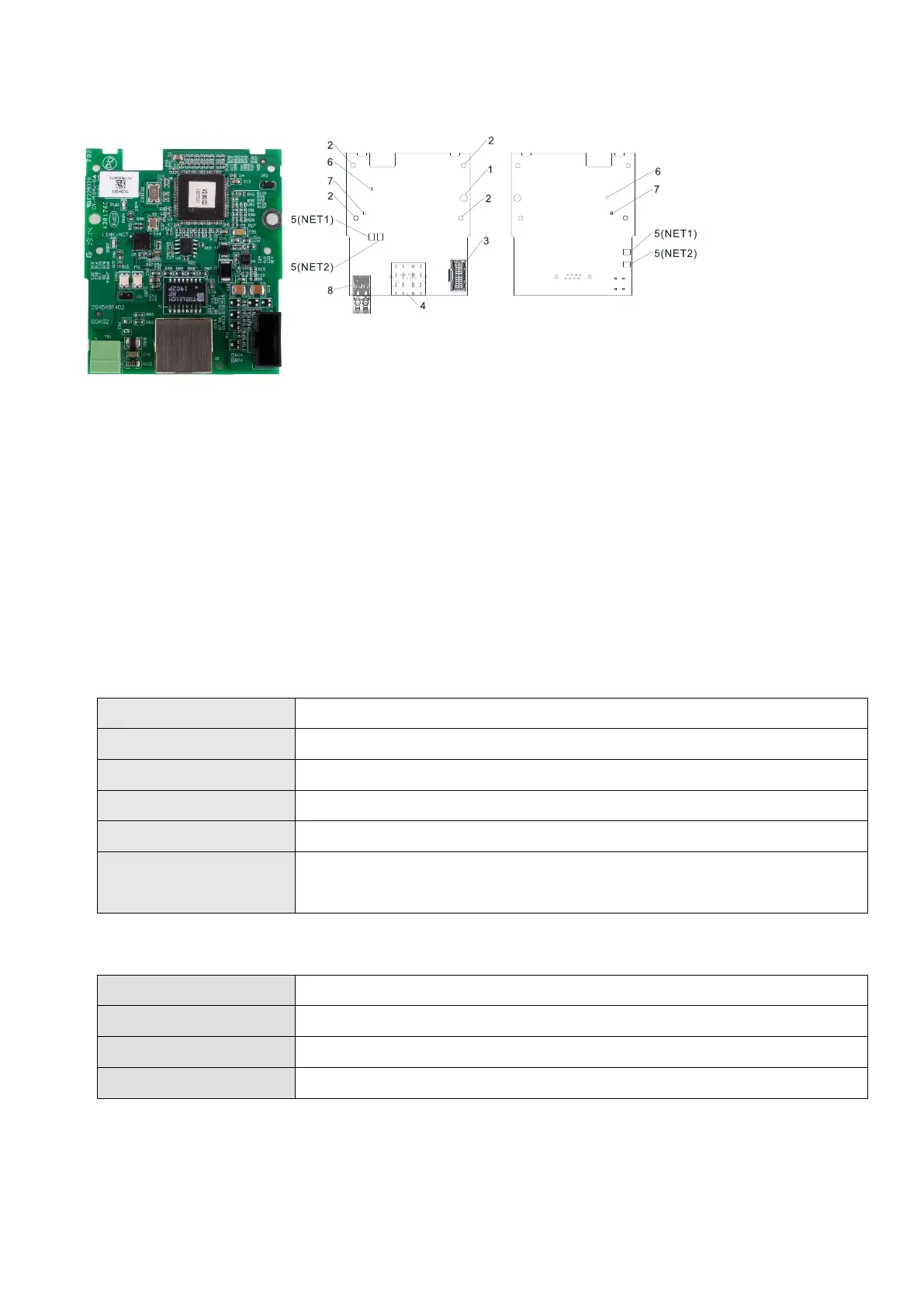

Figure 8-30
Figure 8-31
Wire gauge: 0.25–0.5 mm
2
(24–20 AWG)
Stripping length: 7–8 mm
Screw torque: 4–6 kg-cm / (3.5–5.2 Ib-in.) / (0.39–0.59 Nm)
1. Screw fixing
hole
2. Positioning
hole
3. AC motor
drive
connection
port
4. Communicatio
n port
5. Indicator
NET1 (NS),
NET2 (MS)
6. POWER
indicator
7. Ground
terminal block
8-4-2 Features
1. Supports Modbus TCP and EtherNet/IP protocol
2. 32 / 32 words parameter reading / writing correspondence
3. User-defined corresponding parameters
4. MDI / MDI-X auto-detect
5. E-mail alarm
6. IP filter simple firewall function
8-4-3 Specifications
Network Interface
Interface
RJ45 with Auto MDI / MDIX
Number Of Ports
1 Port
Transmission Method
IEEE 802.3, IEEE 802.3u
Transmission Cable
Category 5e shielding 100 M
Transmission Speed
10/100 Mbps Auto-Detect
Network Protocol
ICMP, IP, TCP, UDP, DHCP, HTTP, SMTP, Modbus TCP, EtherNet/IP, Delta
Configuration
Table 8-19
Electrical Specification
Power Supply Voltage
15 V
DC
Insulation Voltage
500 V
DC
Power Consumption
0.8 W
Weight
25 g
Table 8-20

Delta VFD1A5MS43ANSAA Specifications
