16
AVR-2310CI/2310/890, AVC-2310

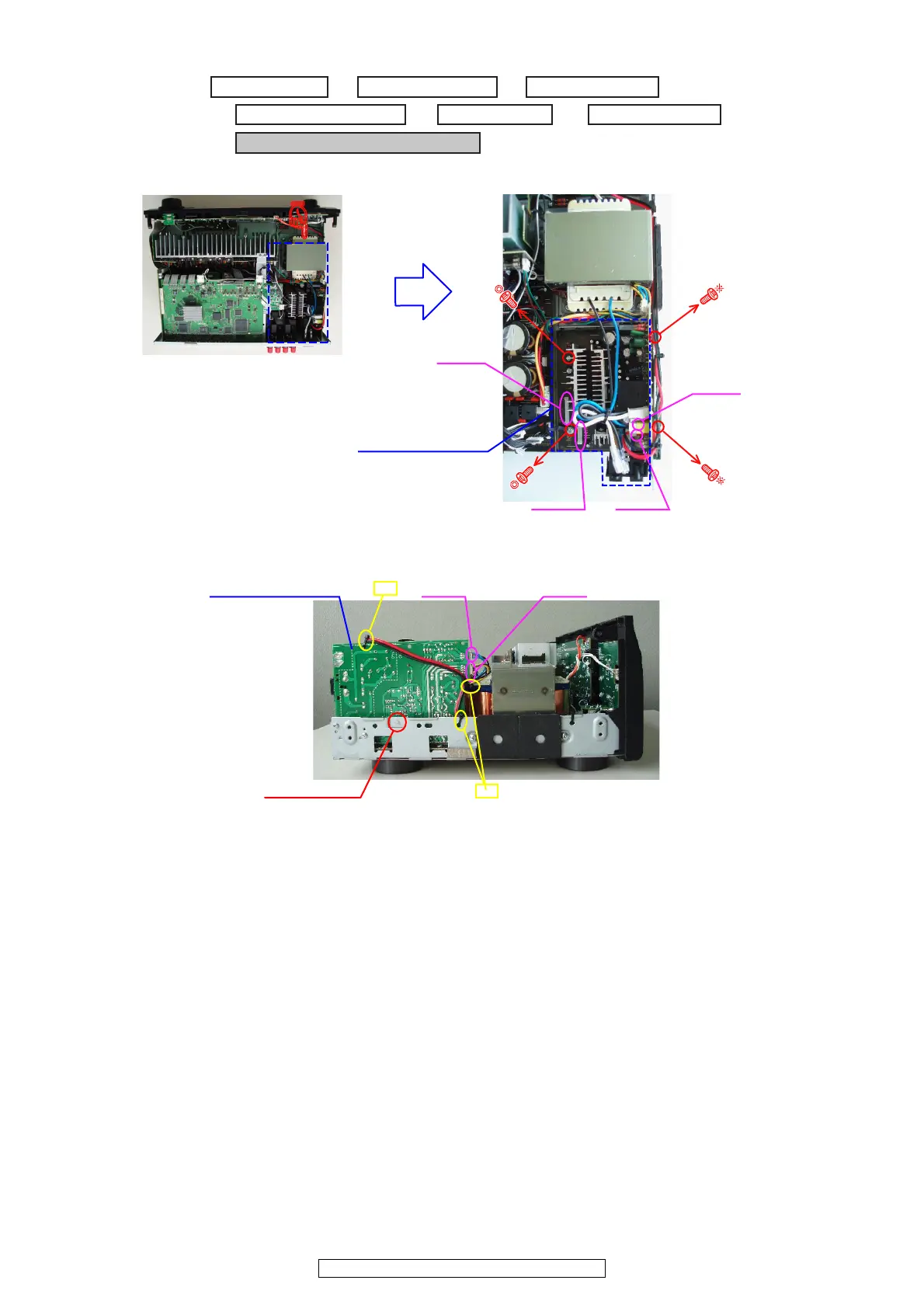

12. PCB SUPPLY and PCB POWER
(1) Disconnect the connector wires, then remove the screws.
(2) Cut the wire clamp bands, then disconnect the connector wires and SUPPORTER.
→
TUNER PACK
→
CHASSIS BACK
Proceeding : CABINET TOP HDMI PWB ASSY
→
→
DIGI-CNT PWB ASSY
→
PCB SUPPLY and PCB POWER
BRACKET HDMI
→
v
PCB SUPPLY ASSY
CP501
CP503CP511
CP515
Direction of photograph: D
SUPPORTER
CP513 CP512
cut
cut
PCB POWER ASSY
