Denon AVR-2310 Service Manual

47
AVR-2310CI/2310/890, AVC-2310
R5F3650TNFB (IC901 : HDMI B’D)
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
1
00
P0_0/AN0_0/D0
P0_1/AN0_1/D1
P0_2/AN0_2/D2
P0_3/AN0_3/D3
P0_4/AN0_4/D4
P0_5/AN0_5/D5
P0_6/AN0_6/D6
P0_7/AN0_7/D7
P1_0/CTS6/RTS6/D8
P1_1/CLK6/D9
P1_2/RXD6/SCL6/D10
VREF
AVSS
AVCC
P10_0/AN0
P10_1/AN1
P10_2/AN2
P10_3/AN3
P9_5/ANEX0/CLK4
P9_6/ANEX1/SOUT4
P9_7/ADTRG/SIN4
P10_7/AN7/KI3
P10_6/AN6/KI2
P10_5/AN5/KI1
P10_4/AN4/KI0

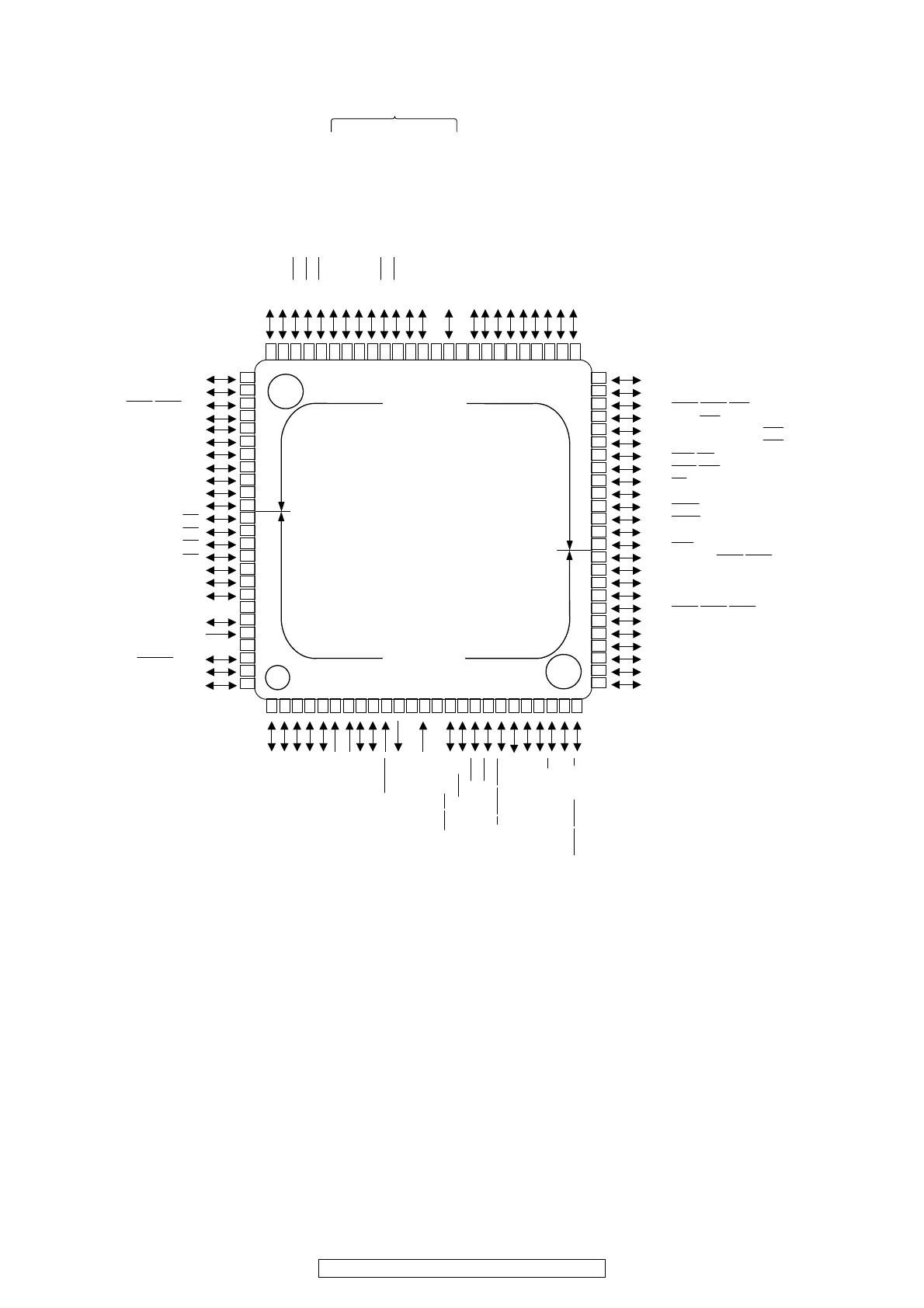

M16C/65 Group
PLQP0100KB-A
(100P6Q-A)
(top view)
P1_3/TXD6/SDA6/D11 P1_4/D12 P3_1/A9 P3_2/A10 P3_3/A11 P3_4/A12 P3_5/A13 P3_6/A14 P3_7/A15 P4_0/A16 P4_1/A17 VCC2 VSS
P4_2/A18
P4_3/A19
P5_6/ALE
P5_5/HOLD
P5_4/HLDA
P5_3/BCLK
P5_2/RD
P5_7/RDY/CLKOUT
P6_3/TXD0/SDA0
P6_5/CLK1
P6_6/RXD1/SCL1
P6_7/TXD1/SDA1
P6_1/CLK0
P6_2/RXD0/SCL0
P6_0/RTCOUT/CTS0/RTS0
P6_4/CTS1/RTS1/CTS0/CLKS1
P5_0/WRL/WR
P5_1/WRH/BHE
P7_2/CLK2/TA1OUT/V
P7_1/RXD2/SCL2/SCLMM/TA0IN/TB5IN
(1)
P7_0/TXD2/SDA2/SDAMM/TA0OUT
(1)
VCC1
XIN
XOUT
VSS
RESET
CNVSS
P8_7/XCIN
P8_6/XCOUT
BYTE
P7_4/TA2OUT/W
P9_3/DA0/TB3IN/PWM0
P9_4/DA1/TB4IN/PWM1
P9_1/TB1IN/PMC1/SIN3
P9_2/TB2IN/PMC0/SOUT3
P8_2/INT0 P8_3/INT1
P8_5/NMI/SD/CEC
(1)
P9_0/TB0IN/CLK3
P8_4/INT2/ZP
P7_5/TA2IN/W
P7_3/CTS2/RTS2/TA1IN/V
P7_6/TA3OUT/TXD5/SDA5
P7_7/TA3IN/CLK5
P8_0/TA4OUT/U/RXD5/SCL5
P8_1/TA4IN/U/CTS5/RTS5
P4_5/CLK7/CS1
P4_4/CTS7/RTS7/CS0
P3_0/A8 [A8/D7] P2_0/AN2_0/A0, [A0/D0], A0 P2_1/AN2_1/A1, [A1/D1], [A1/D0] P2_2/AN2_2/A2, [A2/D2], [A2/D1] P2_3/AN2_3/A3, [A3/D3], [A3/D2] P2_4/INT6/AN2_4/A4, [A4/D4], [A4/D3] P2_5/INT7/AN2_5/A5, [A5/D5], [A5/D4] P2_6/AN2_6/A6, [A6/D6], [A6/D5] P2_7/AN2_7/A7, [A7/D7], [A7/D6]
(3)
P1_5/INT3/IDV/D13 P1_6/INT4/IDW/D14 P1_7/INT5/IDU/D15
P4_6/PWM0/RXD7/SCL7/CS2
P4_7/PWM1/TXD7/SDA7/CS3
VCC2 ports
VCC1 ports
Notes:
1. N-channel open drain output.
2. Check the position of Pin 1 by referring to appendix 1, Package Dimensions.
3. Pin names in brackets [ ] represent a single functional signal. They should not be considered as two separate functional signals.

Denon AVR-2310 Specifications

General

Equalizer	Yes
Product color	Black
Impedance	8 Ω
Frequency range	10 - 100000 Hz
Total Harmonic Distortion (THD)	0.05 %
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
S-Video inputs quantity	7
Component video (YPbPr/YCbCr) in	3
Dimensions (WxDxH)	431 x 377 x 171 mm
HDMI ports quantity	5
Connectivity technology	Wired
Headphone connectivity	3.5 mm
S-Video outputs quantity	2
Digital audio optical out	1

Weight and Dimensions

Weight	11200 g
