Denon AVR-2310 Service Manual

20
AVR-2310CI/2310/890, AVC-2310

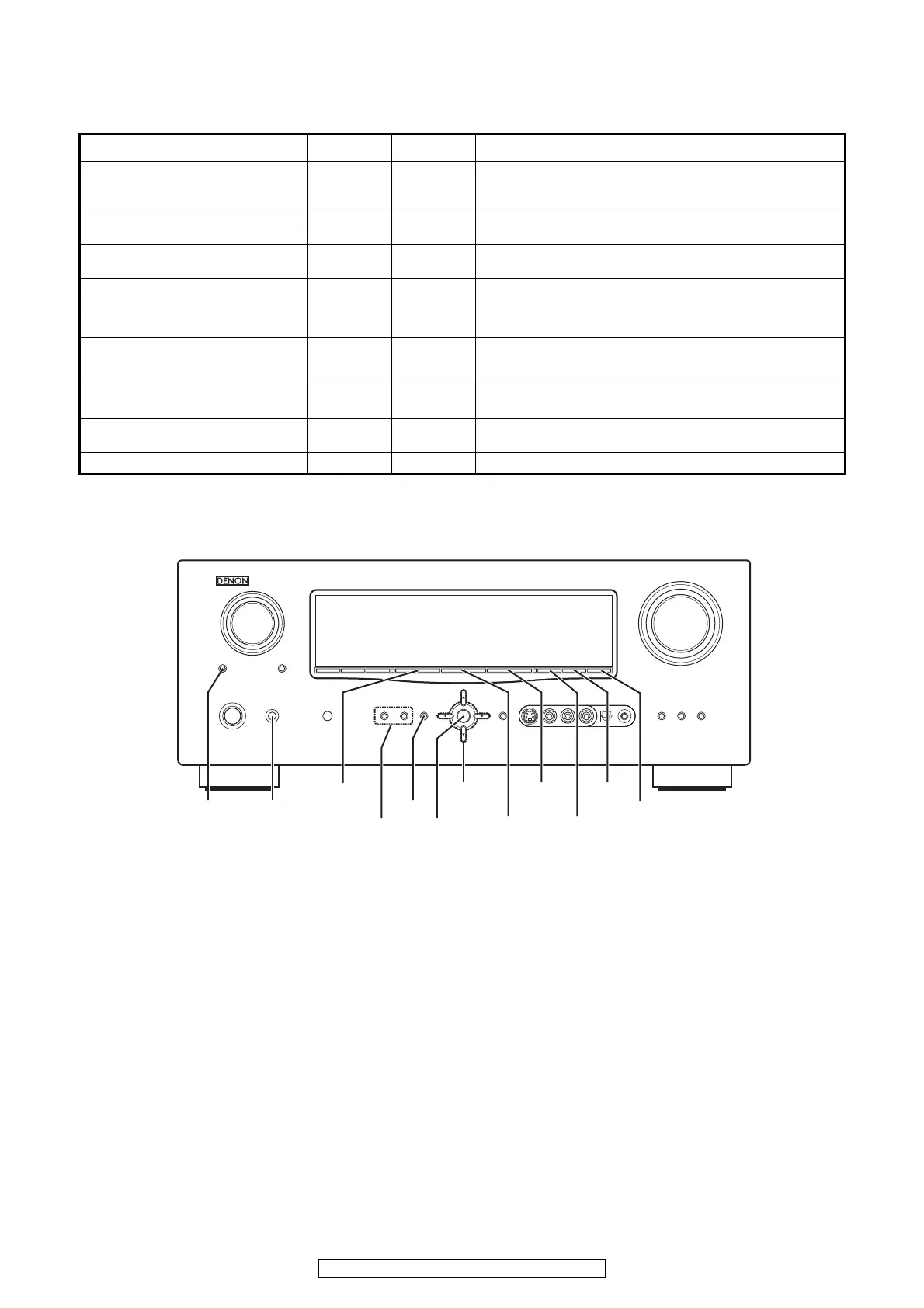

SPECIAL MODE d
Special mode setting button
※ Press the ON/OFF button to turn on while pressing both buttons A and B at the same time.
Mode Button A Button B Contents
µcom/DSP Version display mode STATUS DIMMER
Serial No. and firmware versions such as Main, Sub, DSP are
displayed in the FL manager. Errors are displayed when they
occur. (Refer to 21 page.)
Errors checking mode
(Displaying the protection history mode)
STATUS MULTEQ
Displaying the protection history
(Refer to 22 page.)
Initialization mode
SURROUND
MODE0
SURROUND
MODE1
Backup data initialization is carried out.
(Refer to 19 page.)
Mode for switching tuner frequency step
DYNAMIC
EQ
DYNAMIC
VOL
---E2 model only---
Select with the SOURCE 0 1 button.
Change tuner frequency step to AM9k/FM50kHz STEP or AM:10k/
FM:200kHz.
Mode for preventing remote control
acceptance
CURSOR 0 RESTORER
Operations using remote control are rejected.
(Mode cancellation: Turn off power and execute the same button
operations as when performing setup.)
Panel lock mode
SURROUND
MODE0
RESTORER
Operations using main unit panel buttons or master volume are
rejected.
Panel lock mode
(Remove Master volume)
SURROUND
MODE1
RESTORER Operations using main unit panel buttons are rejected.
Cancellation of panel lock mode MENU RESTORER Panel lock mode is cancelled.
DYNAMIC
VOLUME
DYNAMIC
EQ
ENTER
MENU
SURROUND
0 MODE 1
ON/OFF
CURSOR
SOURCE
DIMMER
RESTORER
STATUS
MULTEQ

Denon AVR-2310 Specifications

General

Equalizer	Yes
Product color	Black
Impedance	8 Ω
Frequency range	10 - 100000 Hz
Total Harmonic Distortion (THD)	0.05 %
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
S-Video inputs quantity	7
Component video (YPbPr/YCbCr) in	3
Dimensions (WxDxH)	431 x 377 x 171 mm
HDMI ports quantity	5
Connectivity technology	Wired
Headphone connectivity	3.5 mm
S-Video outputs quantity	2
Digital audio optical out	1

Weight and Dimensions

Weight	11200 g
