Denon AVR-X7200W User Manual

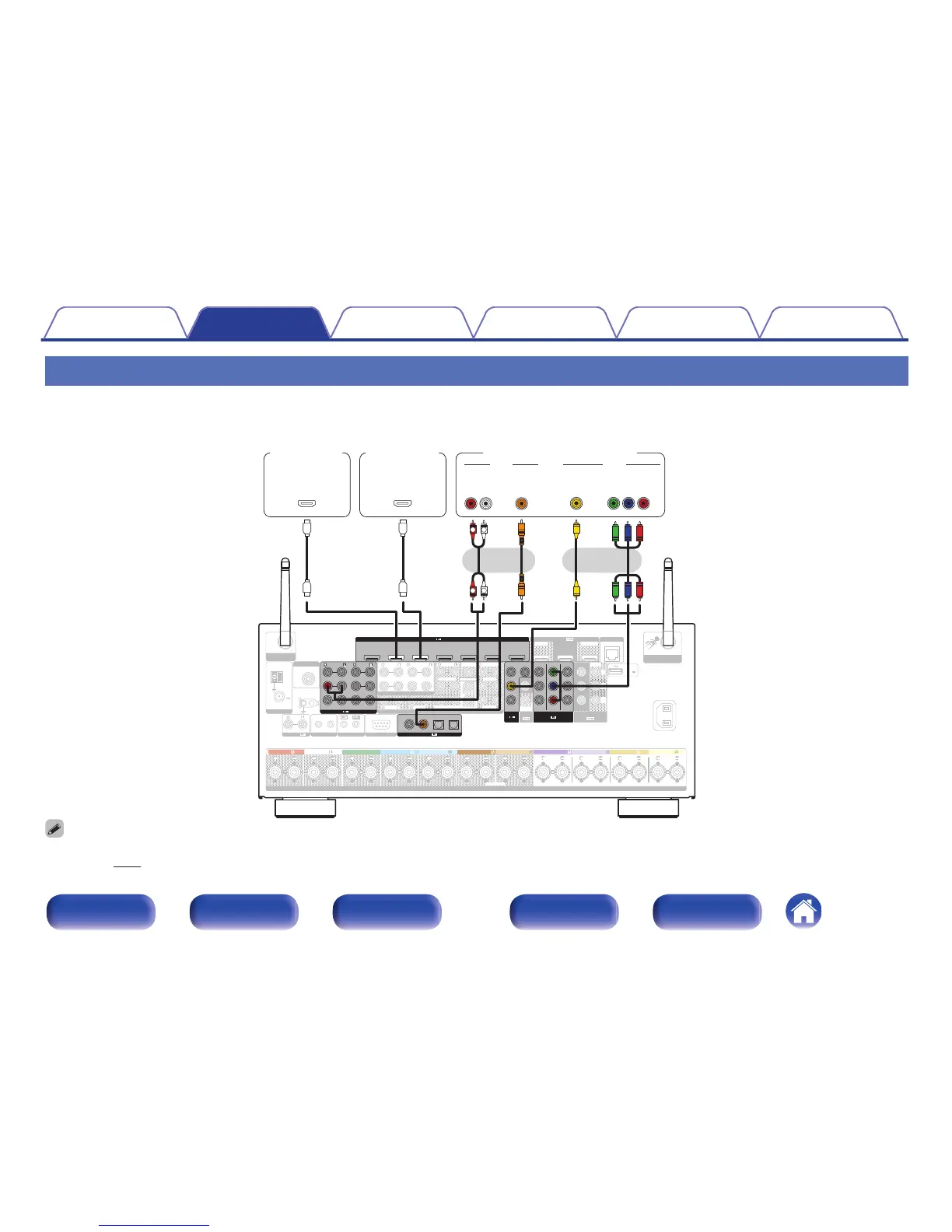

Connecting a DVD player or Blu-ray Disc player
This explanation uses the connection with a DVD player or Blu-ray disc player as an example.
Select the input connectors on this unit to match the connectors on the device that you want to connect to.
.
PHONO
12
RS-232C
7.1CH IN
REMOTE CONTROL TRIGGER OUT
PRE OUT
VIDEO
COMPONENT VIDEO
ARC
MONITOR1
MONITOR/ZONE3 ZONE2
MONITOR/ZONE3
ZONE2
ZONE2
MONITOR2
STRAIGHT CABLE
IR
DC12V 150mA MAX.
ZONE2 ZONE3
FRONT
FRONT
SURROUND SURROUND CENTER SUBWOOFER
SURROUND BACK FRONT WIDE CENTER
HEIGHT1
SURROUND BACK HEIGHT2
1
SUBWOOFER
SIGNAL
GND
HDMI
AUDIO
2
ASSIGNABLE ASSIGNABLE ASSIGNABLE
SPEAKERS
IMPEDANCE : 4㹼16
Ȑ
CLASS 2 WIRING
Denon Link HD
ANTENNA
AM
FM
Bluetooth
/
Wi-Fi
ANTENNA
Bluetooth
/
Wi-Fi
ANTENNA
AC IN
NETWORK
Y
P
B/
C
B
PR/
C
R
5V/1A
CENTER SURROUND SURROUND BACK SURROUNDFRONT SURROUND BACK FRONT WIDE/HEIGHT2FRONT WIDE/HEIGHT2 HEIGHT1 HEIGHT1 FRONT
2 DVD 1 CBL/SAT
2 CD 1
TV
AUDIO
COAXIAL OPTICAL
DIGITAL AUDIO
(ASSIGNABLE)
2 DVD 3 Blu-ray 6 AUX2 7 CD4 GAME
5 MEDIA PLAYER
(ASSIGNABLE)
HDMI
1 CBL/SAT
1 CBL/SAT 1 CBL/SAT
2 DVD
2 DVD 3
Blu-ray 4 GAME
(ASSIGNABLE) (ASSIGNABLE)
VIDEO COMPONENT VIDEO
3 Blu-ray
1 CBL/SAT
6 MEDIA PLAYER
2 DVD
3 Blu-ray
5 CD
4 GAME
AUDIO
(ASSIGNABLE)
R
L
R
L
OUT
HDMI
OUT
COAXIAL
AUDIO
AUDIO
RL
OUT
OUT
VIDEO
VIDEO
COMPONENT VIDEO
YPB PR
OUT
OUT
HDMI
or or
DVD player
(HDMI incompatible device)
DVD player
Blu-ray Disc
player
When connecting a Blu-ray Disc Player that is compatible with Denon Link HD, see “Connecting a Blu-ray Disc player compatible with the Denon Link HD
function” (v p. 72).
Contents Connections Playback Settings Tips Appendix
71
Front panel Display Rear panel Remote Index

Denon AVR-X7200W Specifications

General

Receiver type	Surround
Input sensitivity	200 mV
Audio output channels	11.2 channels
Signal-to-Noise Ratio (SNR)	102 dB
Power output per channel (1KHz@6 Ohm)	190 W
Power output per channel (20-20KHz@8 Ohm)	210 W
HDMI in	8
Audio (L/R) in	7
Composite video in	5
Digital audio optical in	2
Ethernet LAN (RJ-45) ports	1
Component video (YPbPr/YCbCr) in	3
12V trigger	Yes
Speakers connectivity type	-
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Optical drive included	No
Display	LCD
Product color	Black
Audio decoders	Dolby TrueHD, DTS 96/24, DTS-ES, DTS-HD Master Audio
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	780 W

Weight and Dimensions

Depth	427 mm
Width	434 mm
Height	196 mm
Weight	17800 g
