Domino F Series User Guide

32
F-Series Connectivity
The F-Series is operated either via a remote TouchPanel or via a PC
running on Microsoft Windows 7®
or Windows 8® with installed
QuickStep software.
To connect to one D-Series, the TouchPanel is connected to the X59
TouchPanel connector of the controller.
The TouchPanel then displays the UI relating to that printer.
One TouchPanel can control multiple F-Series in the same network if
required.
Details about the printer being controlled are displayed in the Home
screen which lists: the logged in user, the printer’s name and the printer
model. To connect to another printer in the network, follow the steps
below:
(1) Disconnect from the current printer by pressing the Lock button
and selecting Disconnect From Printer to display the printers’
list screen.
(2) Press the Lock button and select Unlock UI Settings, enter the
password (QS).
(3) Press Settings, select Broadcast (default) as the connection
method.
(4) Go back to the printers’ list screen and press Refresh to view a
list of all printers in the network.
(5) Select the required printer.

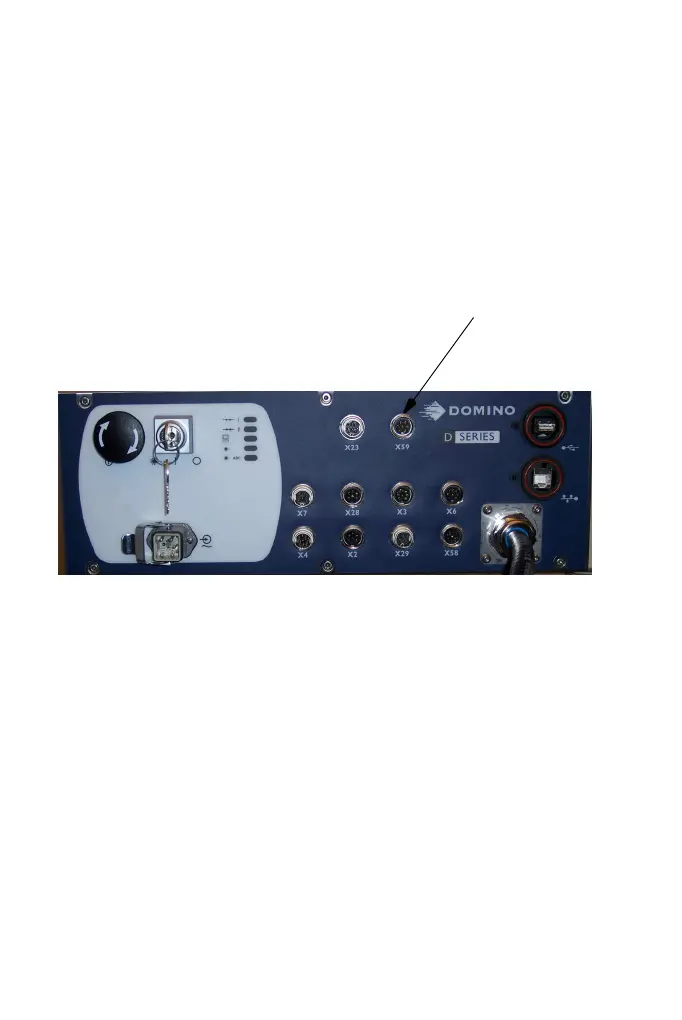

X59 TouchPanel Connector
