Fuses
The electrical system components are protected by eight
fuses located in the fusebox. Only six of these fuses are
connected to the electrical system, the other two are spares.
Refer to the table below to identify the circuits protected
by the various fuses and their ratings in amps.

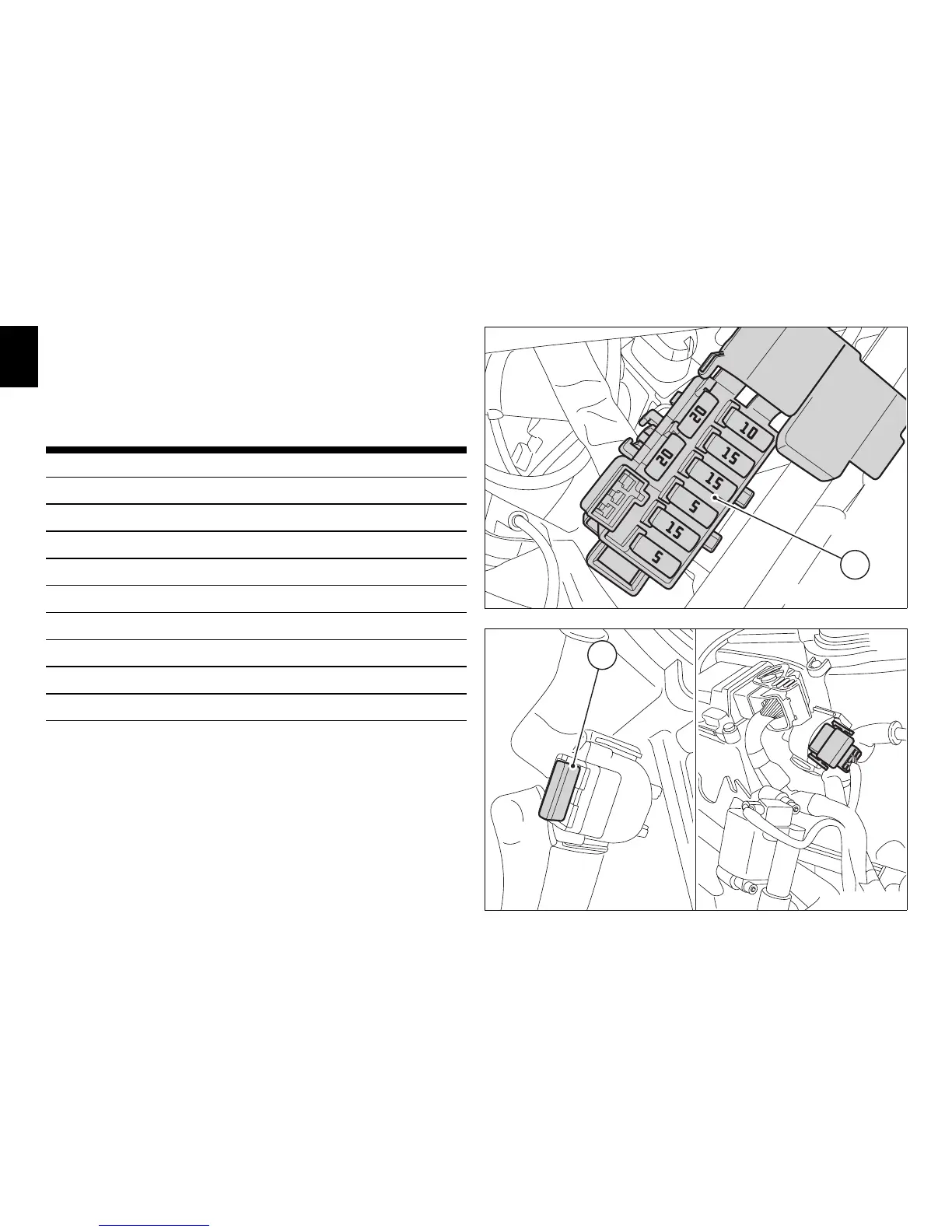

The main fusebox is located on the right-hand side of the
motorcycle (fig. 104).
The fuses are accessed by removing the cover (1), which
shows the ampere ratings and mounting locations.
Key to fusebox (1, fig. 104)
Pos. Consumers Rating.
1Key ON 10A
2 Side lights, high/low beam 15 A
3Consumers 15A
4 Instrument panel 5 A
5 Injection 20 A
6ECU 5A
7Spare 20A
8Spare 5A
1
fig. 104
2
fig. 105

Ducati MONSTER 1100 S Specifications

General

Displacement	1078 cc
Torque	103 Nm (76 lb-ft) @ 6000 rpm
Fuel Injection	Siemens electronic fuel injection, 45 mm throttle body
Transmission	6-speed
Frame	Tubular steel Trellis frame
Front Brake	2 x 320 mm discs, 4-piston radial calipers
Rear Brake	245 mm disc, 2-piston caliper
Seat Height	810mm (31.9 in)
Engine Type	L-Twin, 2 valves per cylinder Desmodromic
Power	70 kW (95 hp) @ 7500 rpm
Front Suspension	43 mm fully adjustable
Rear Suspension	Progressive linkage
Dry Weight	169 kg
Fuel Capacity	15 L
