Ducati MONSTER 1100 S User Manual

49
E

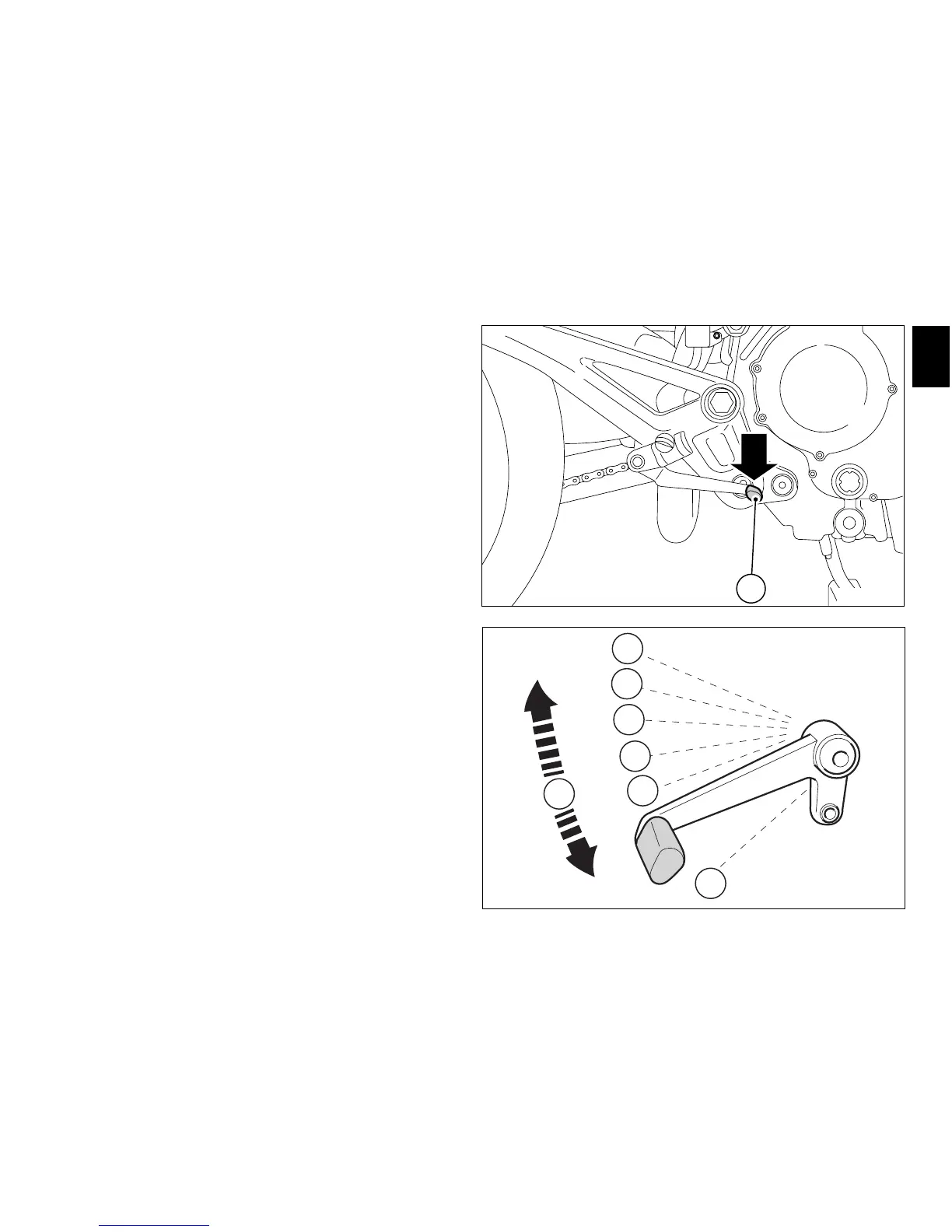

Rear brake pedal (fig. 37)
Push down on the pedal (1) with your foot to operate the rear
brake.
The system is controlled hydraulically.
Gearchange pedal (fig. 38)
The gearchange pedal has a central position N, with
automatic return, and two directions of movement:
downwards = push down on the pedal to engage 1
st
gear
and to shift down. At this point the N warning light on the
instrument panel will go out;
upwards = lift the pedal to engage 2
nd
gear and then 3
rd
, 4
th
,
5
th
and 6
th
gears.
Each time you move the pedal you engage the next gear up,
one gear at a time.
1
fig. 37
1
2
3
4
5
6
N
fig. 38

Ducati MONSTER 1100 S Specifications

General

Displacement	1078 cc
Torque	103 Nm (76 lb-ft) @ 6000 rpm
Fuel Injection	Siemens electronic fuel injection, 45 mm throttle body
Transmission	6-speed
Frame	Tubular steel Trellis frame
Front Brake	2 x 320 mm discs, 4-piston radial calipers
Rear Brake	245 mm disc, 2-piston caliper
Seat Height	810mm (31.9 in)
Engine Type	L-Twin, 2 valves per cylinder Desmodromic
Power	70 kW (95 hp) @ 7500 rpm
Front Suspension	43 mm fully adjustable
Rear Suspension	Progressive linkage
Dry Weight	169 kg
Fuel Capacity	15 L
