Ducati MONSTER 1100 S User Manual

57
E

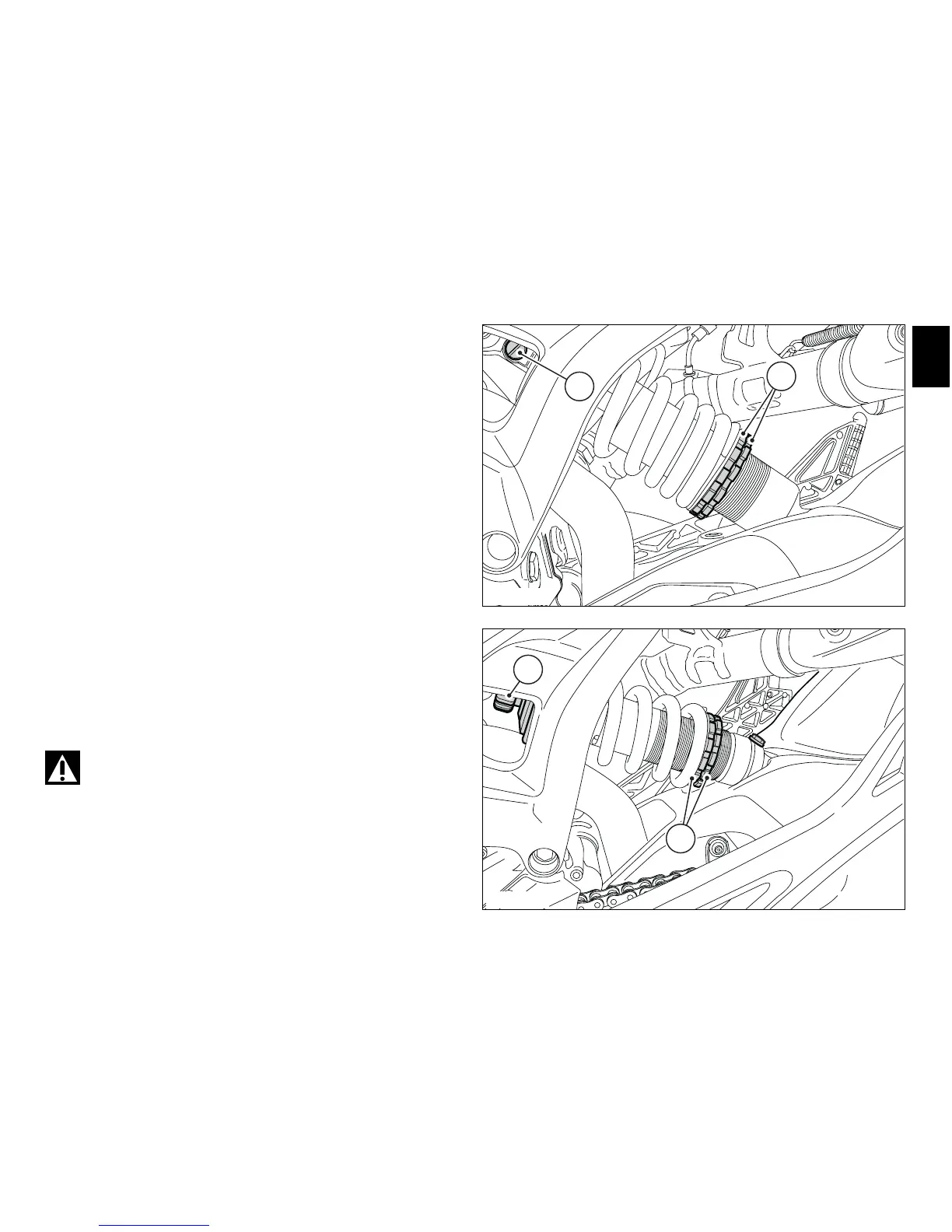

Shock absorber adjusters (fig. 50 and fig. 51)
The shock absorber has external adjusters that enable you to
adjust the suspension to suit the load on the motorcycle.
Adjuster (1), located on the left-hand side at the point at
which the top of the shock absorber is fixed to the rear
sub-frame, controls rebound damping.
Turn the adjuster (1) clockwise to increase damping, or
counter-clockwise to reduce damping.
1100
STANDARD setting from the fully closed position (clockwise):
- unscrew the adjuster (1) by 13 clicks.
Spring preload: 18 mm.
1100S
STANDARD setting from the fully closed position (clockwise):
- unscrew the adjuster (1) by 15 clicks.
Spring preload: 19 mm.
The two nuts (2) on the upper part of the shock absorber
serve to adjust the preload on the external spring. To
change spring preload, slacken off the upper lock nut.
Then tighten or loosen the lower nut to increase or
decrease spring preload as required.
Warning
The shock absorber is filled with gas under pressure
and may cause severe damage if taken apart by unskilled
persons.
1
2
1100
fig. 50
2
1
1100S
fig. 51

Ducati MONSTER 1100 S Specifications

General

Displacement	1078 cc
Torque	103 Nm (76 lb-ft) @ 6000 rpm
Fuel Injection	Siemens electronic fuel injection, 45 mm throttle body
Transmission	6-speed
Frame	Tubular steel Trellis frame
Front Brake	2 x 320 mm discs, 4-piston radial calipers
Rear Brake	245 mm disc, 2-piston caliper
Seat Height	810mm (31.9 in)
Engine Type	L-Twin, 2 valves per cylinder Desmodromic
Power	70 kW (95 hp) @ 7500 rpm
Front Suspension	43 mm fully adjustable
Rear Suspension	Progressive linkage
Dry Weight	169 kg
Fuel Capacity	15 L
